Home >> Cadillac >> 2007 >> CTS V6-3.6L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Body Control Module >> Diagrams

Body Control Module: Diagrams

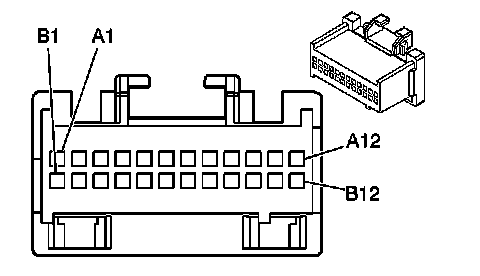

Data Communication Connector End Views

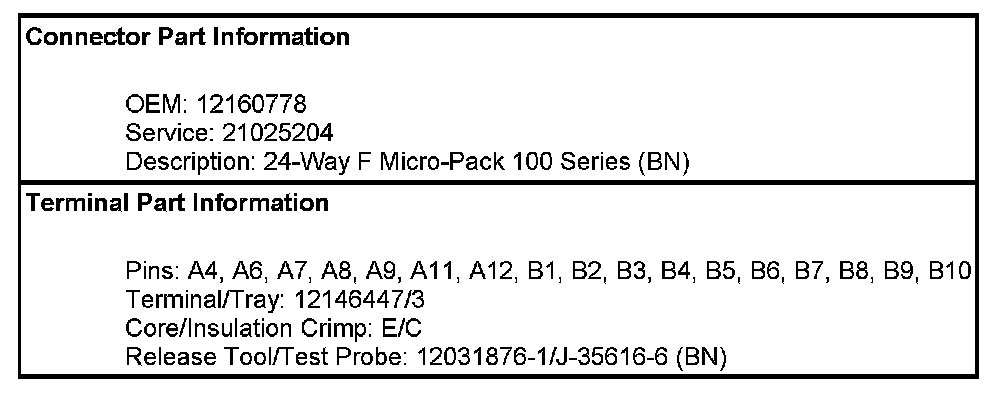

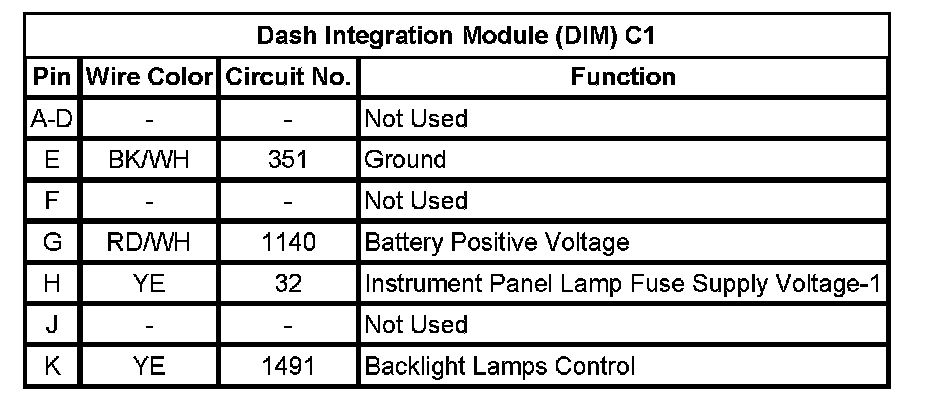

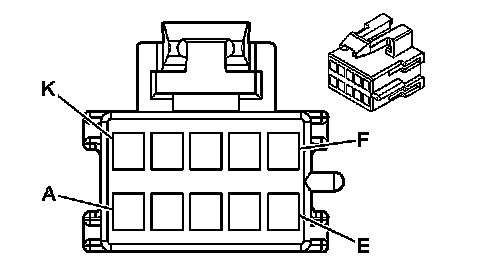

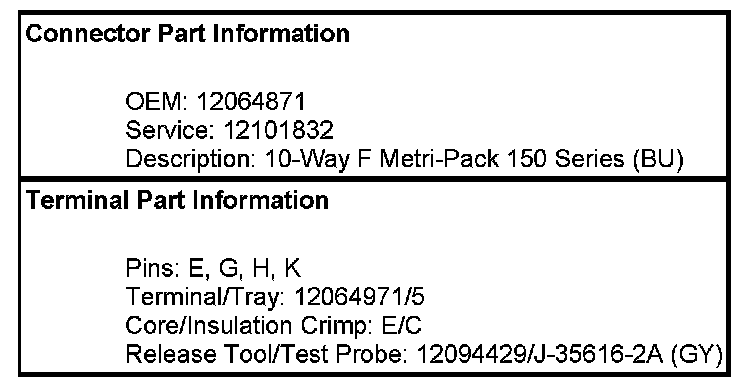

Dash Integration Module (DIM) C1

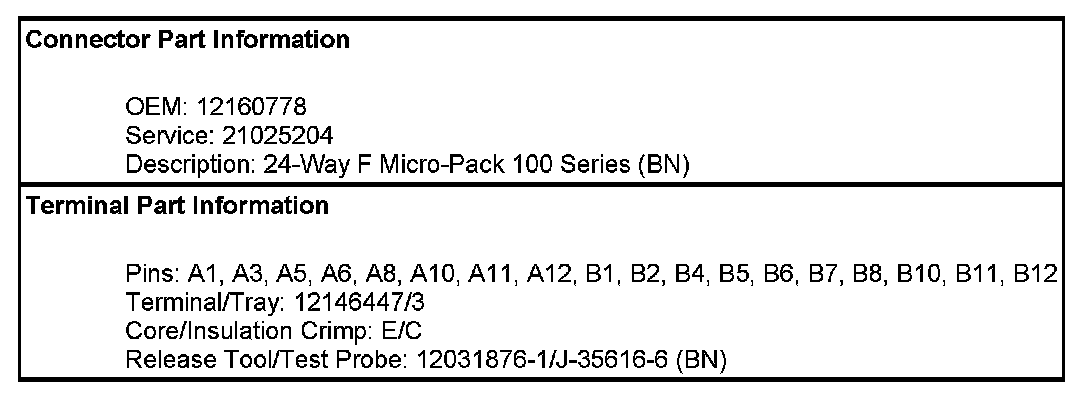

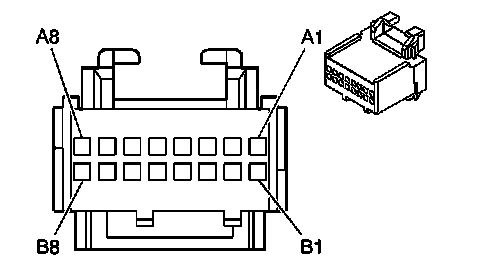

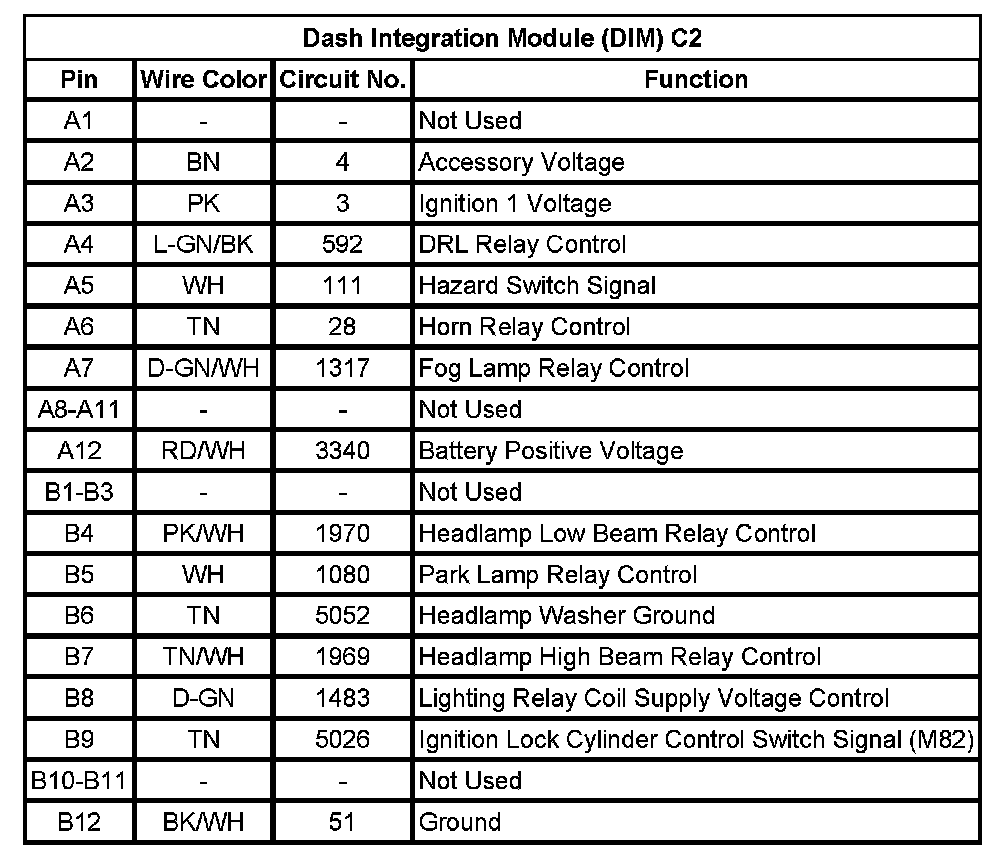

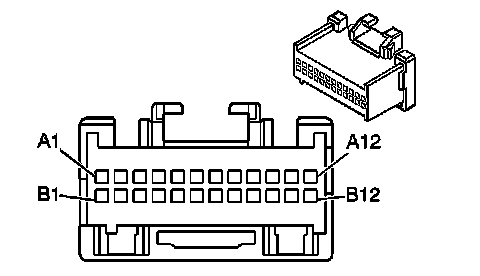

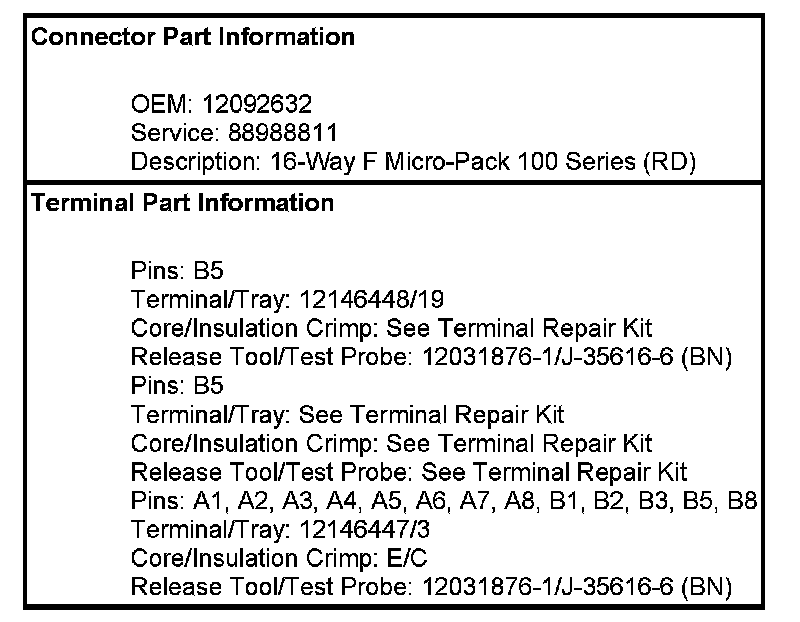

Dash Integration Module (DIM) C2

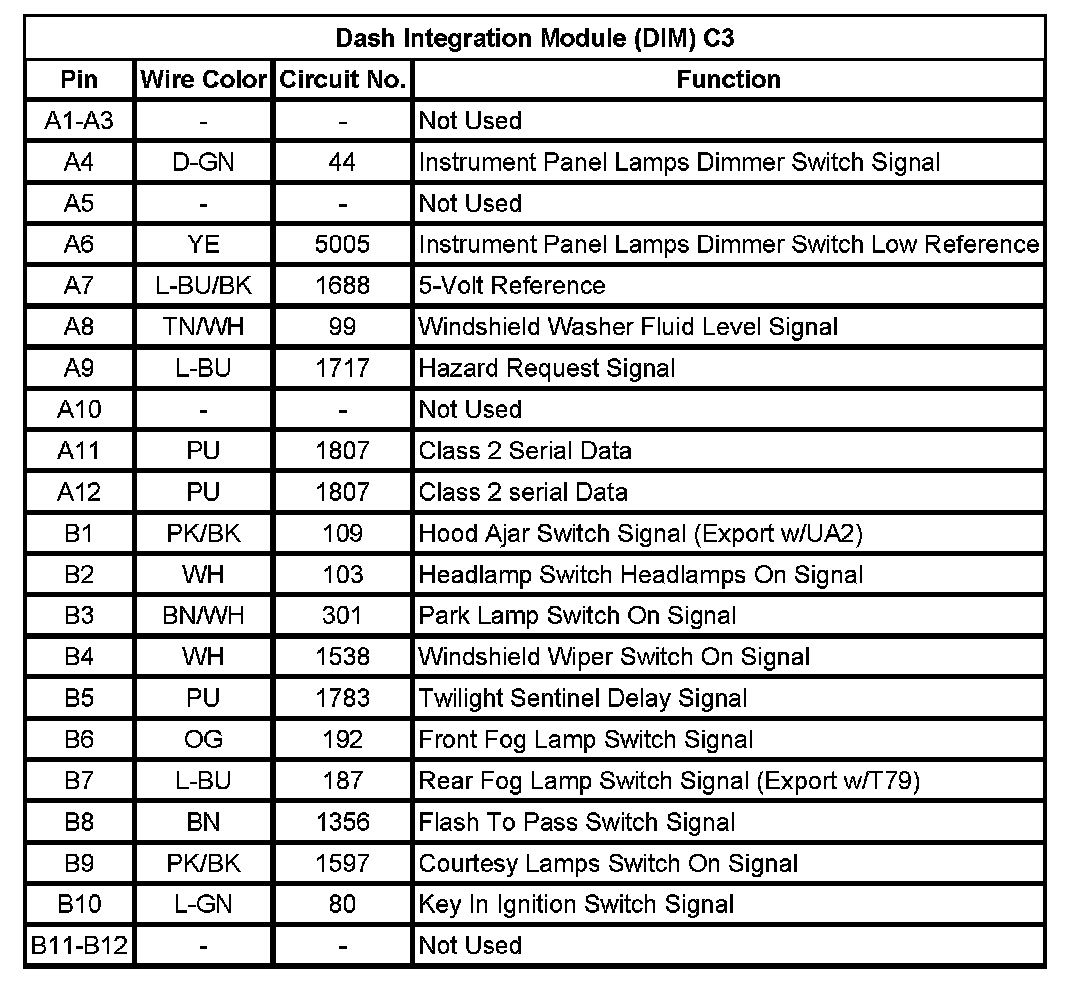

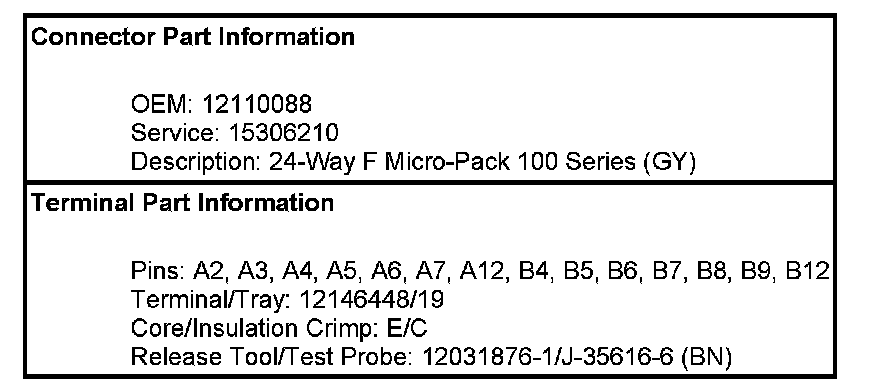

Dash Integration Module (DIM) C3

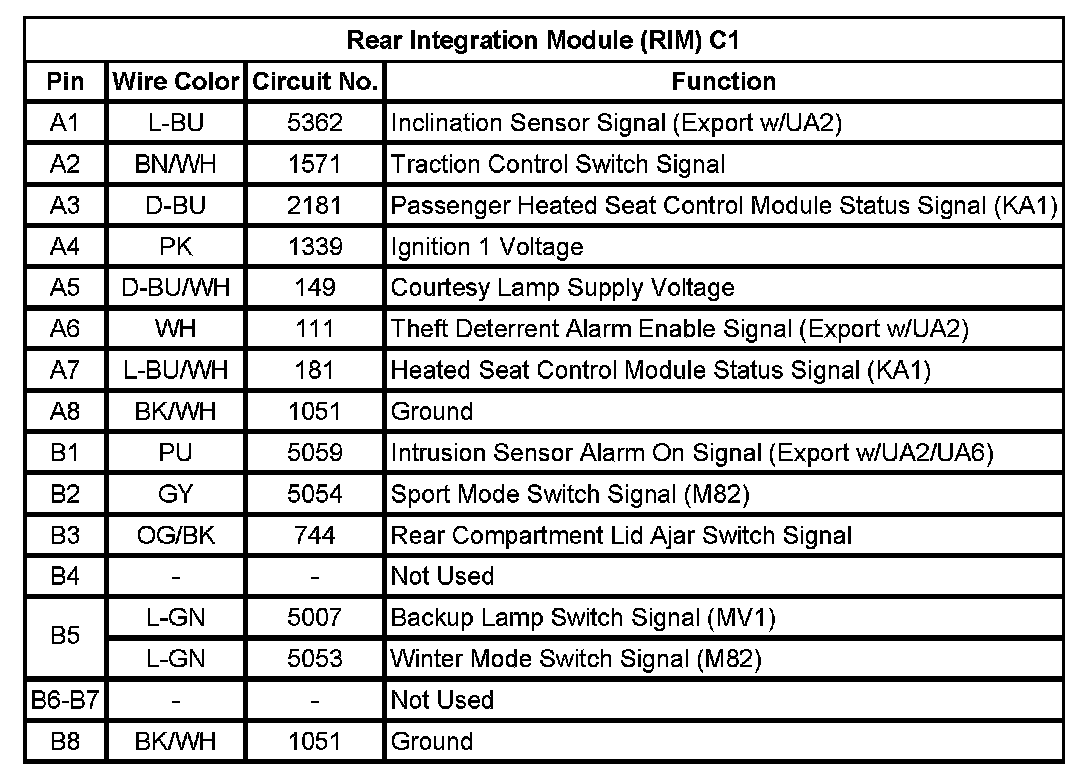

Rear Integration Module (RIM) C1

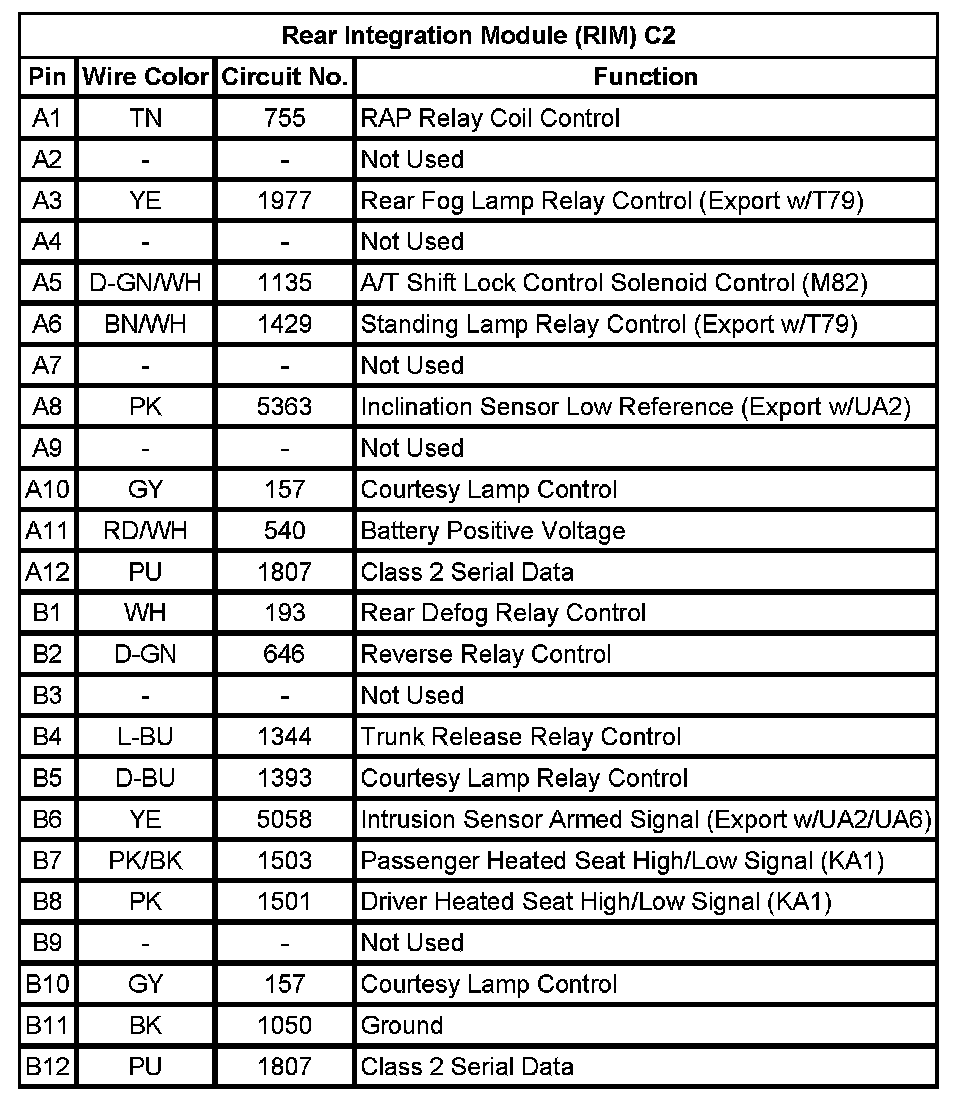

Rear Integration Module (RIM) C2
