Memory Positioning Module: Diagrams

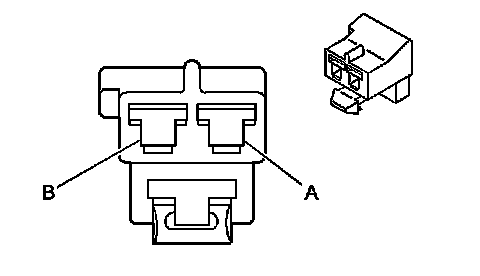

Power Seat Connector End Views

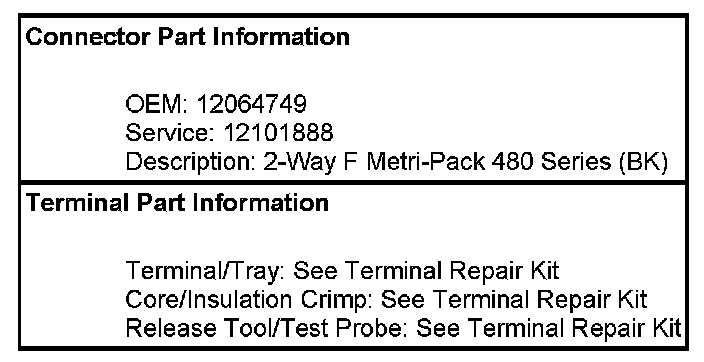

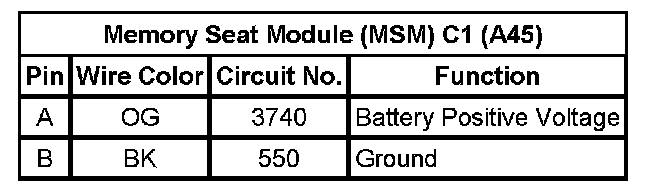

Memory Seat Module (MSM) C1 (A45)

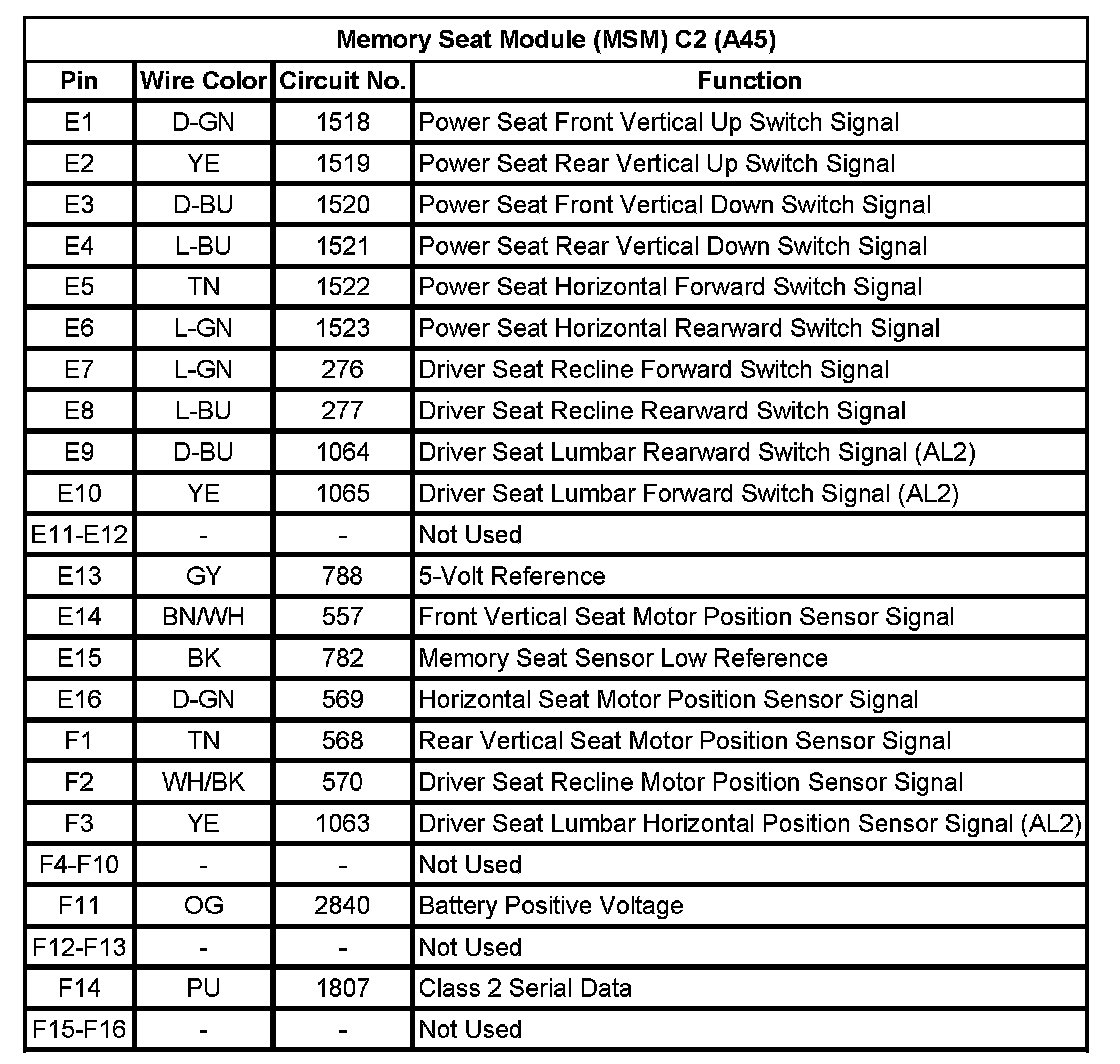

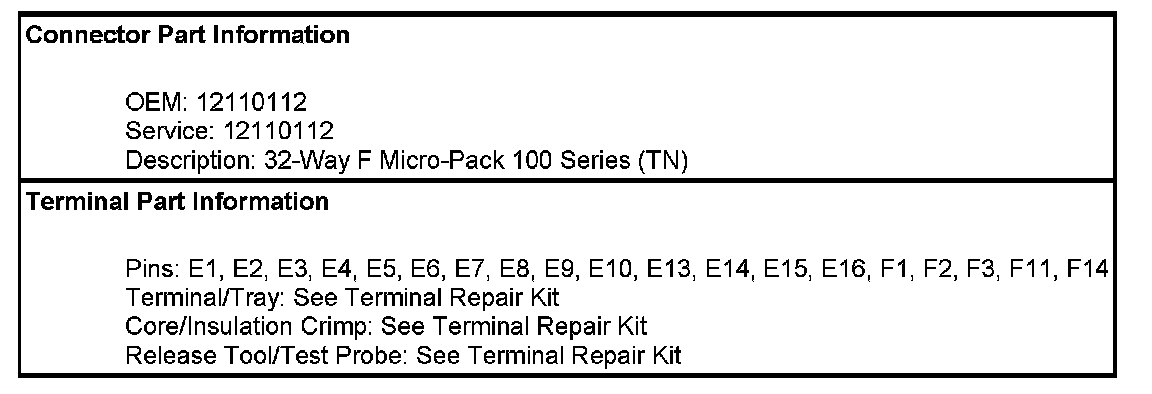

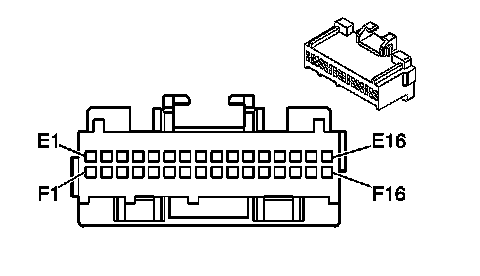

Memory Seat Module (MSM) C2 (A45)

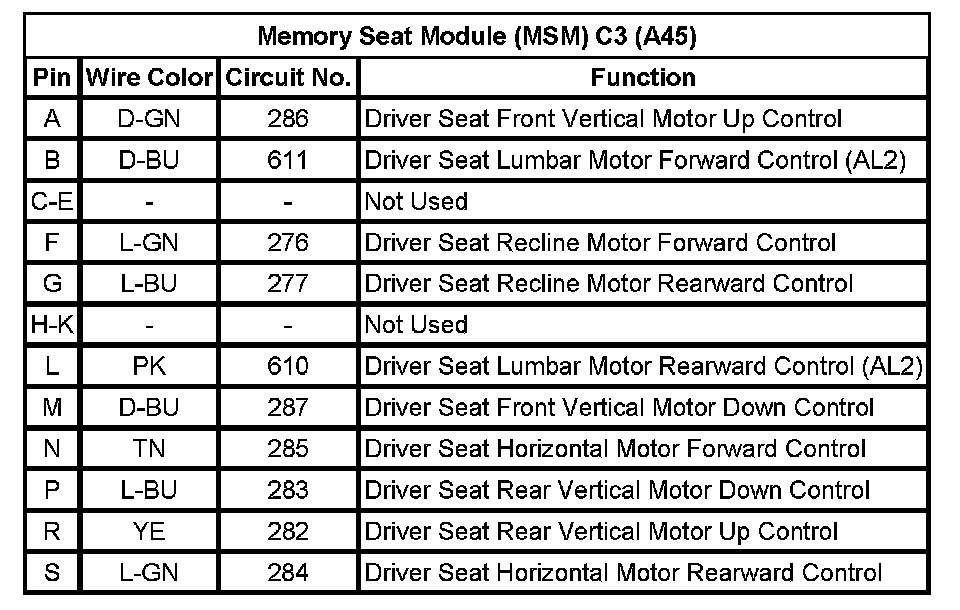

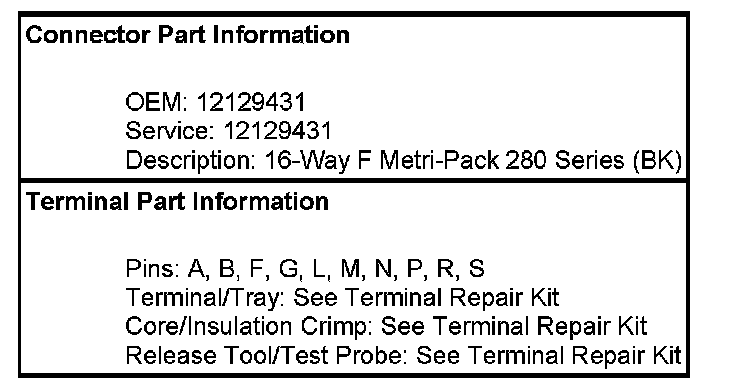

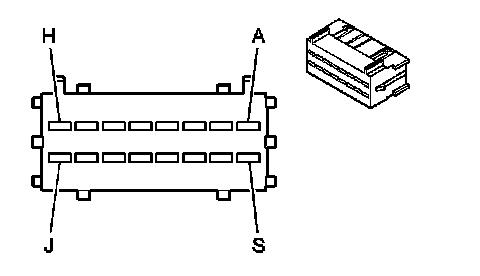

Memory Seat Module (MSM) C3 (A45)
