Control Module: Diagrams

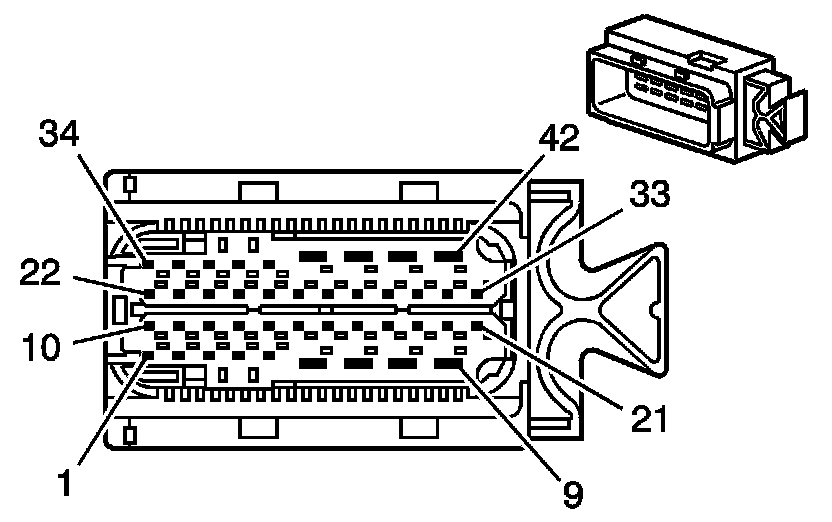

Automatic Transmission Related Connector End Views

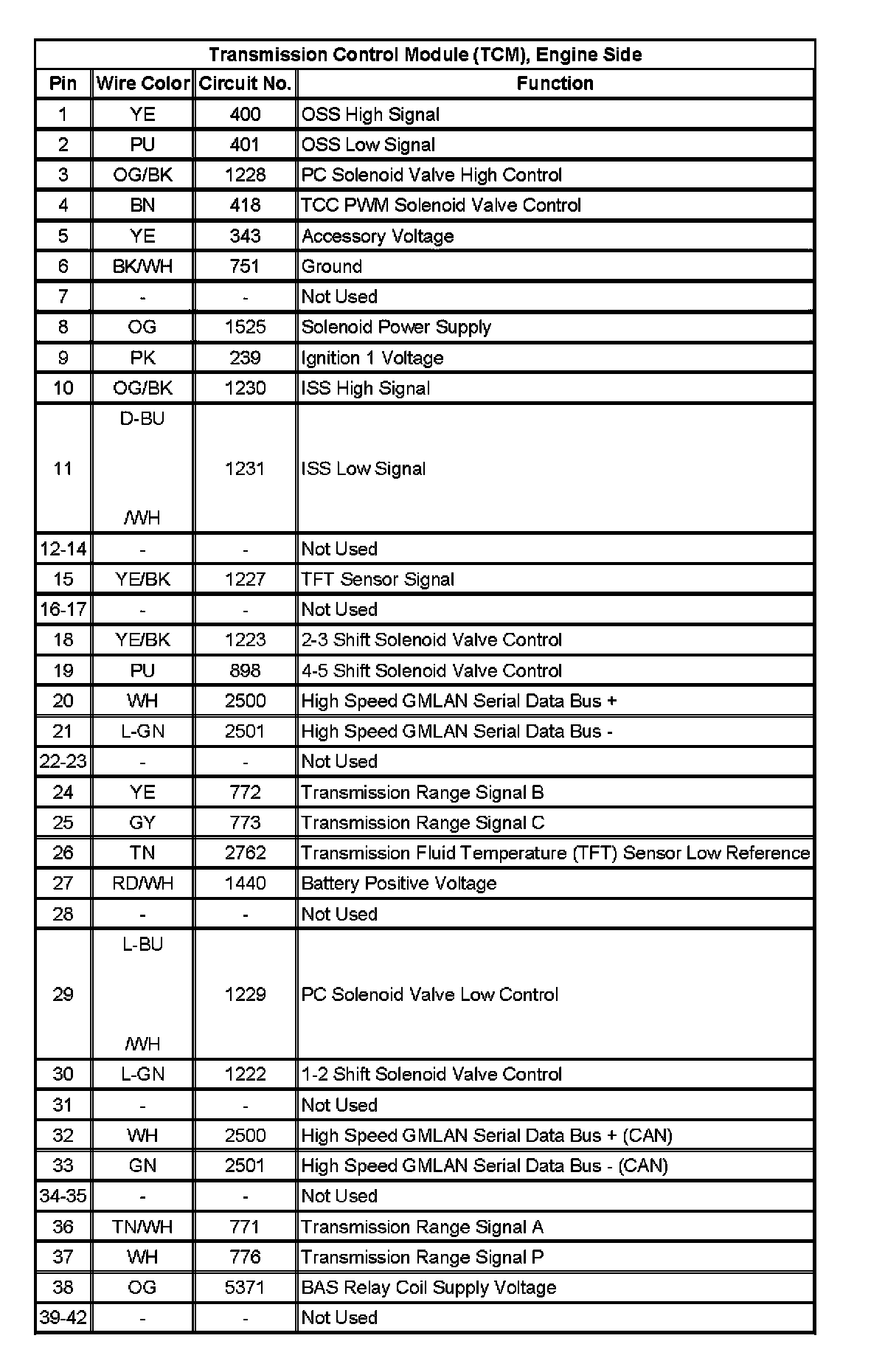

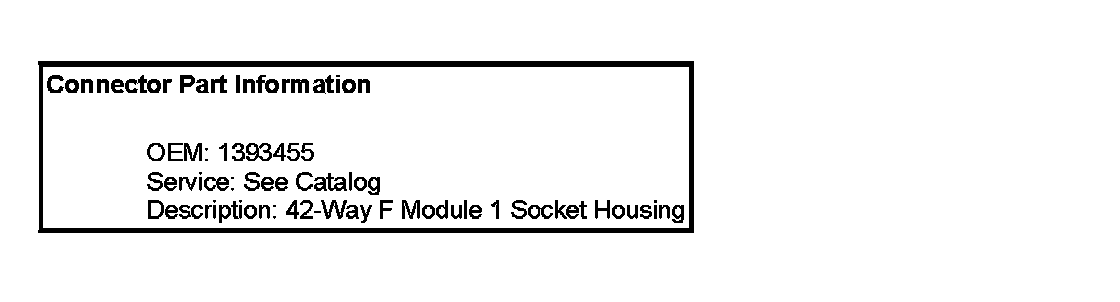

Transmission Control Module (TCM), Engine Side:
