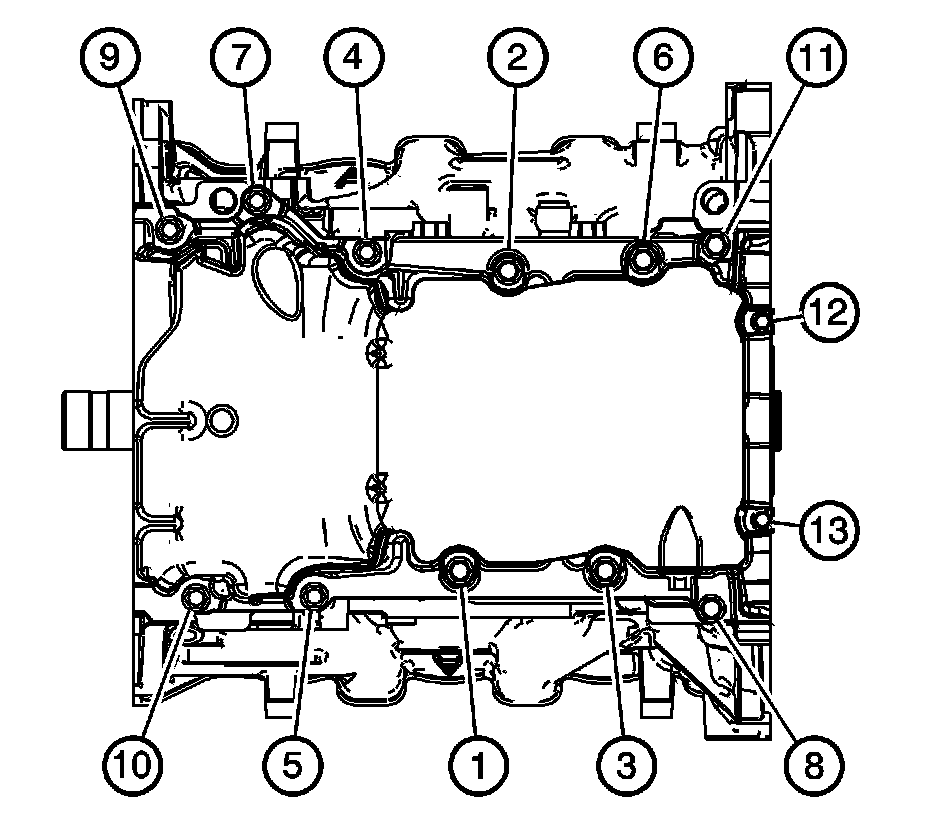

Oil Pan, Engine
Oil Pan
Bolt - Block M8 23 N.m (17 lb ft)
Bolt - Crankshaft Rear Oil Seal Housing M6 10 N.m (89 lb in)
Windage Tray Bolt 10 N.m (89 lb in)
Oil Pan
Bolt - Block M8 23 N.m (17 lb ft)
Bolt - Crankshaft Rear Oil Seal Housing M6 10 N.m (89 lb in)
Windage Tray Bolt 10 N.m (89 lb in)
