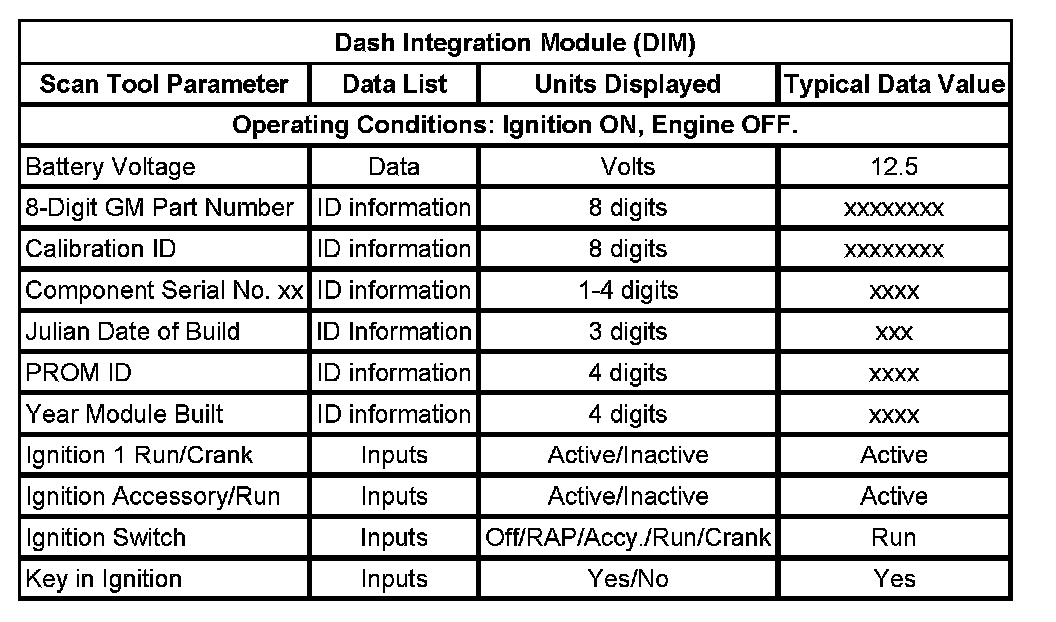

Home >> Cadillac >> 2007 >> CTS V6-2.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Scan Tool Testing and Procedures >> Scan Tool Data List >> Dash Integration Module (DIM)
