Engine Views

Power and Grounding Component Views

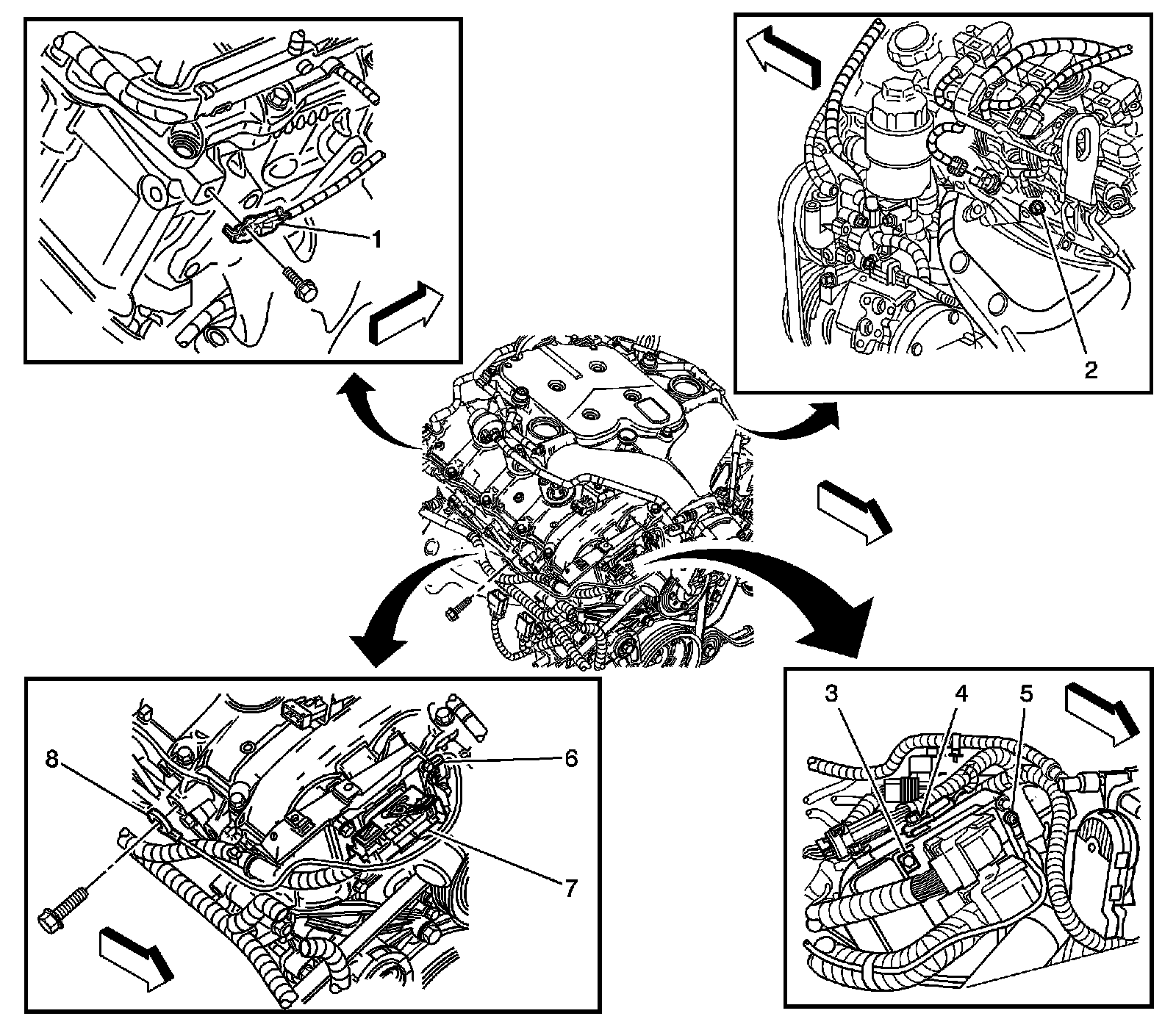

Engine Grounds - 2.8L/3.6L (LP1/LY7)




1 - Ground G130
2 - Ground G131
3 - Engine Control Module (ECM)
4 - Ground G132
5 - ECM Case Ground
6 - ECM Case Ground
7 - Engine Control Module (ECM)
8 - Ground G133
