Ultrasonic Sensor, Antitheft
Ultrasonic Sensor, Antitheft

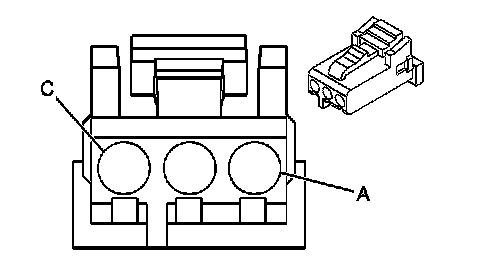

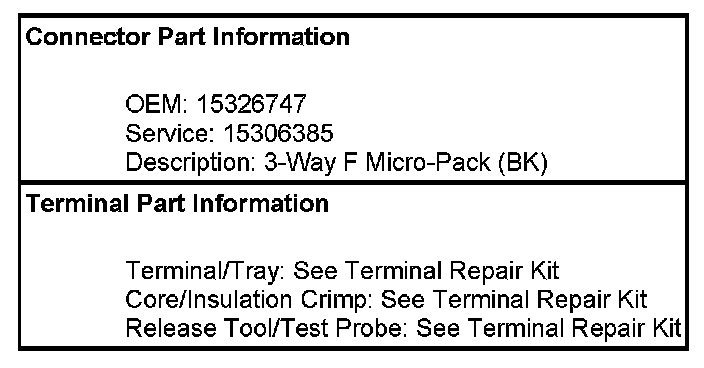

Theft Deterrent System Connector End Views

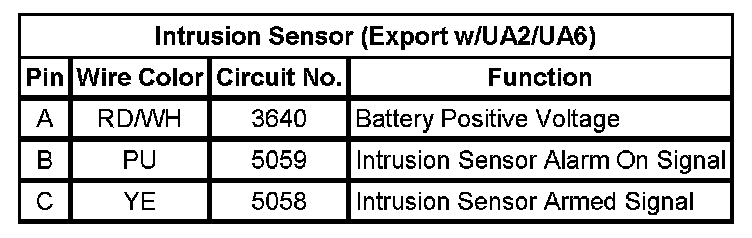

Intrusion Sensor (Export w/UA2/UA6)
