Seat Temperature Control Module



Heated/Cooled Seat Connector End Views

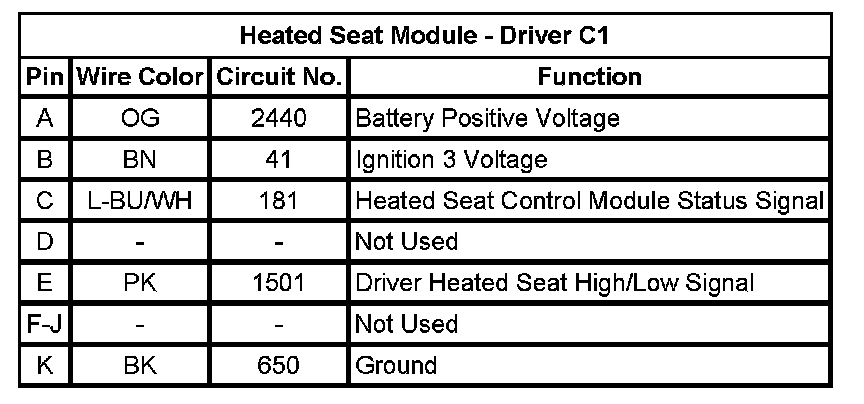

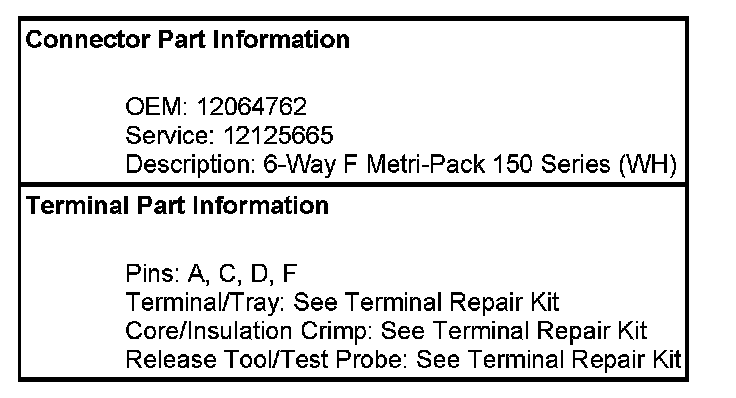

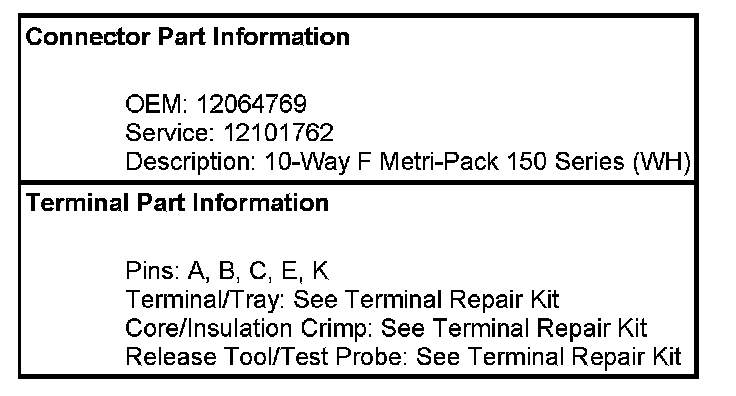

Heated Seat Module - Driver C1

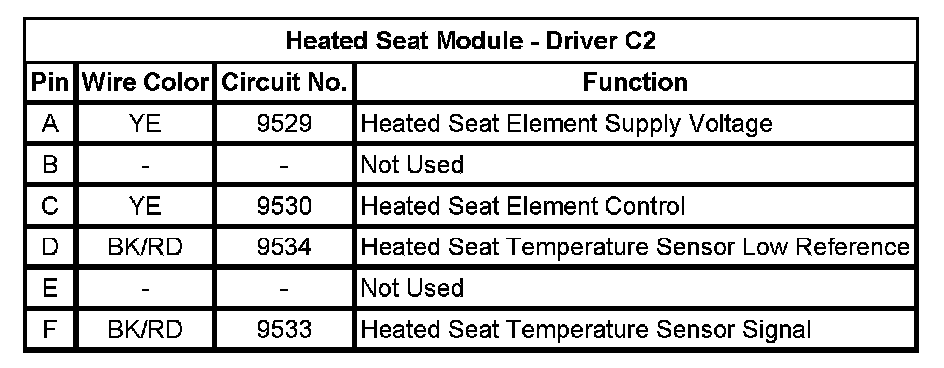

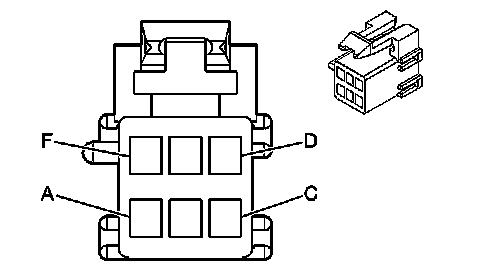

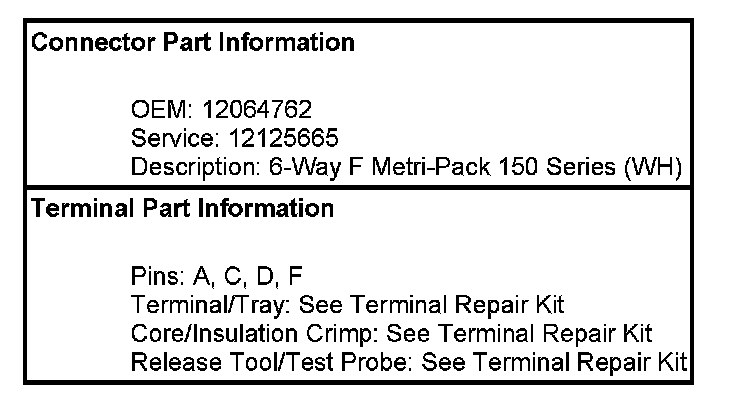

Heated Seat Module - Driver C2

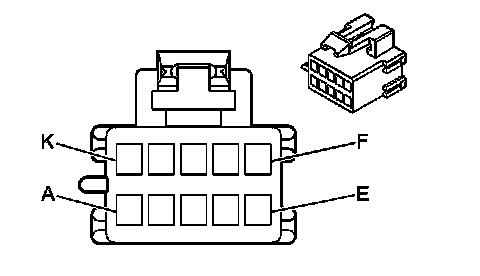

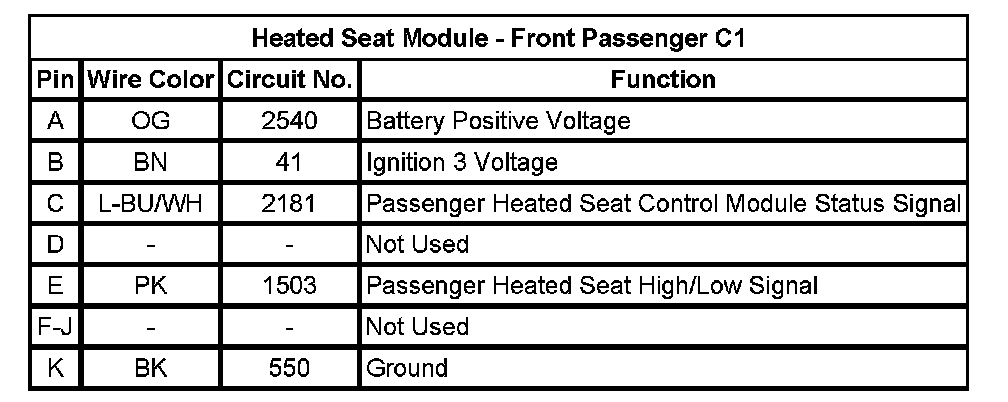

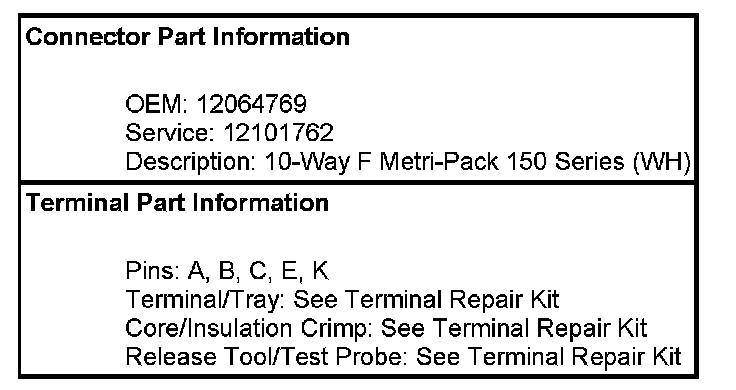

Heated Seat Module - Front Passenger C1

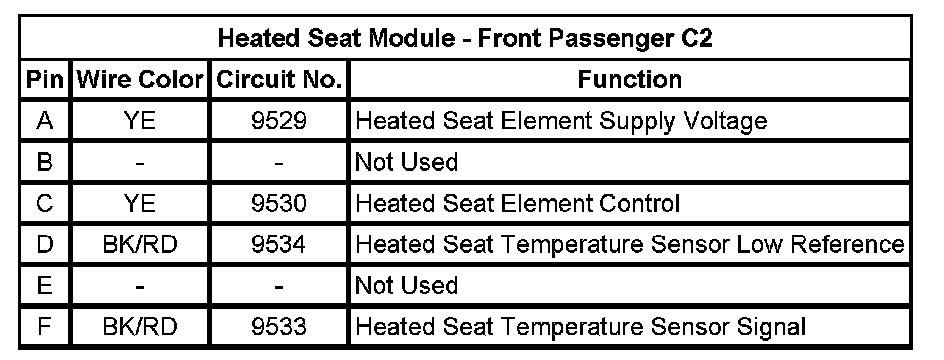

Heated Seat Module - Front Passenger C2
