Cadillac
>>
2007
>>
CTS V6-2.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Oil Temperature Sensor/Switch, Engine
>>

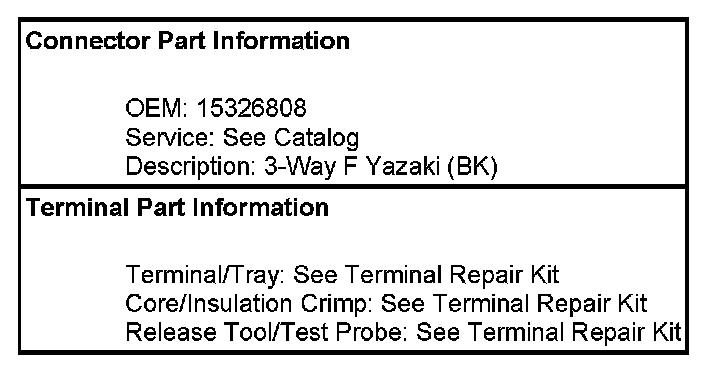

Engine Controls Connector End Views
Engine Controls Connector End Views
Engine Controls Connector End Views

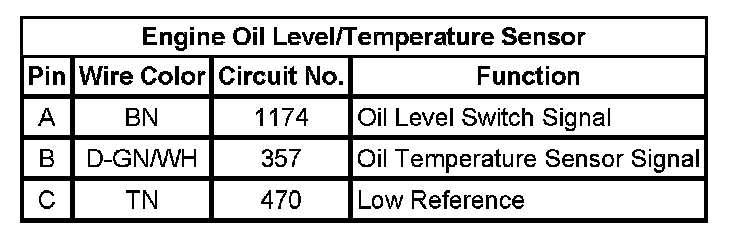

Engine Oil Level/Temperature Sensor
