Memory Positioning Switch
Memory Positioning Switch
Power Seat Connector End Views

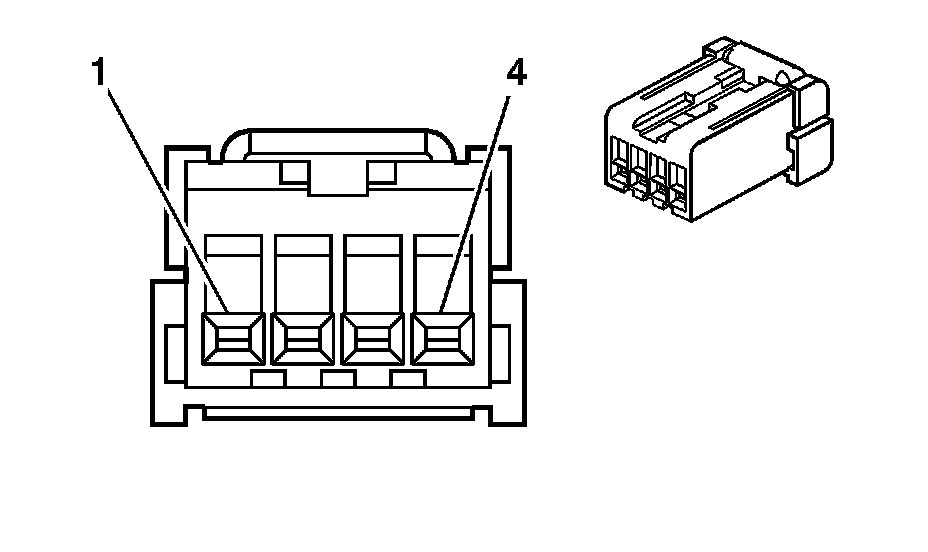

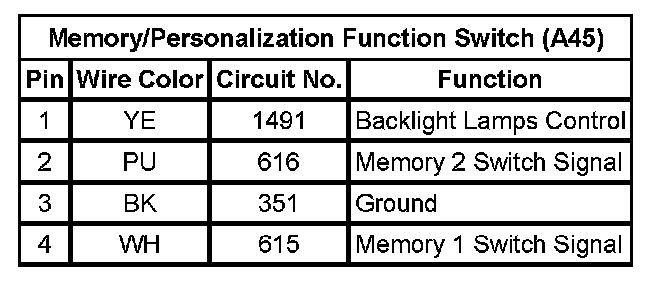

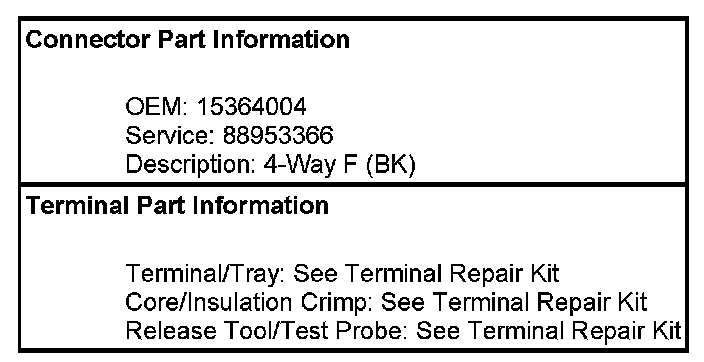

Memory/Personalization Function Switch (A45)
