Home >> Cadillac >> 2007 >> CTS V6-2.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Impact Sensor

Impact Sensor



SIR Connector End Views

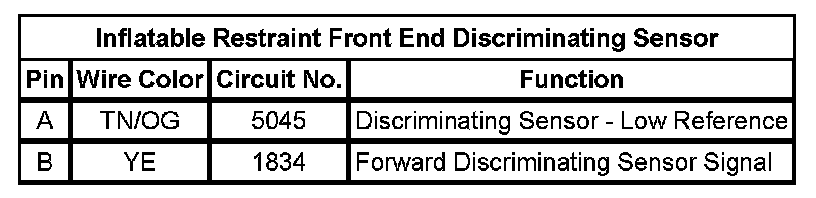

Inflatable Restraint Front End Discriminating Sensor

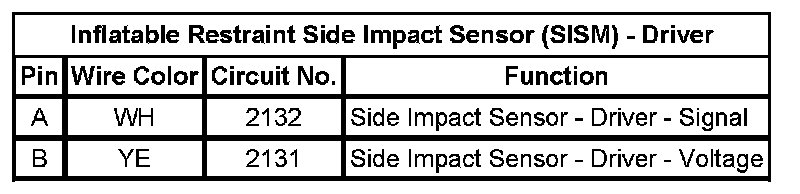

Inflatable Restraint Side Impact Sensor (SISM) - Driver

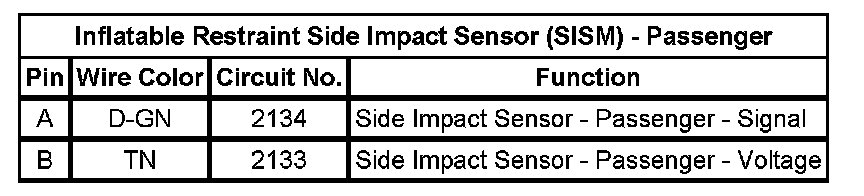

Inflatable Restraint Side Impact Sensor (SISM) - Passenger
