Home >> Cadillac >> 2007 >> CTS V6-2.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Central Control Module

Central Control Module



Entertainment/Communication Connector End Views

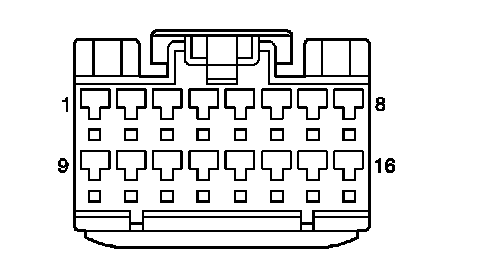

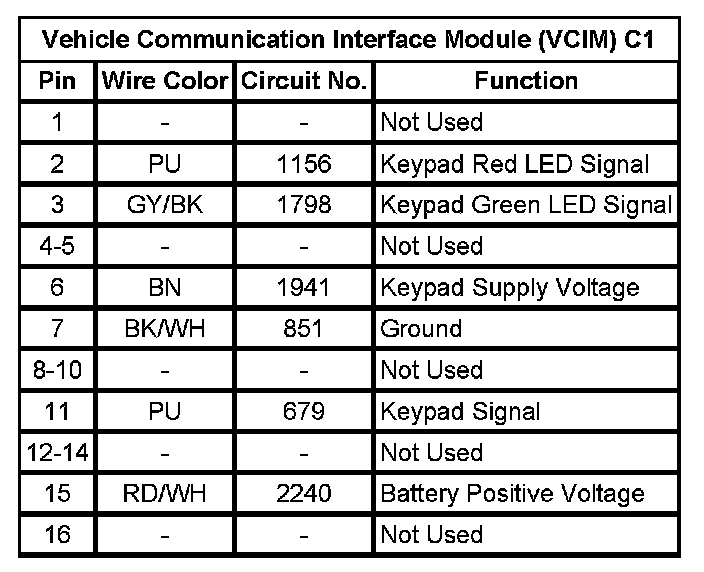

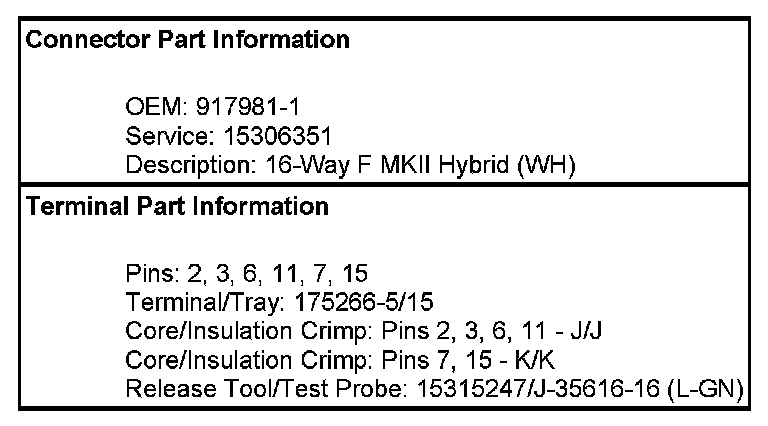

Vehicle Communication Interface Module (VCIM) C1

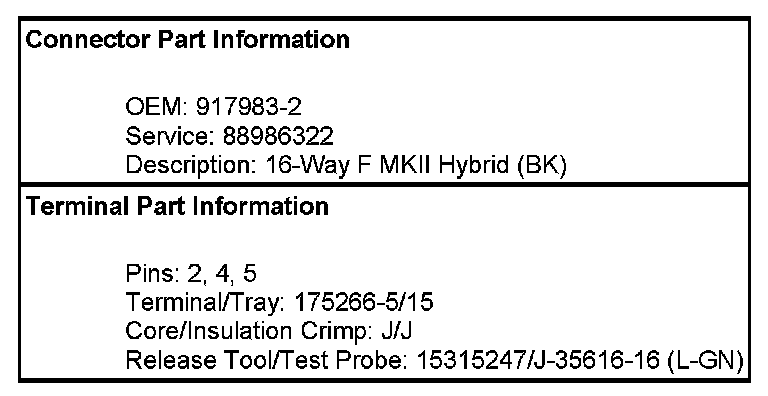

Vehicle Communication Interface Module (VCIM) C2

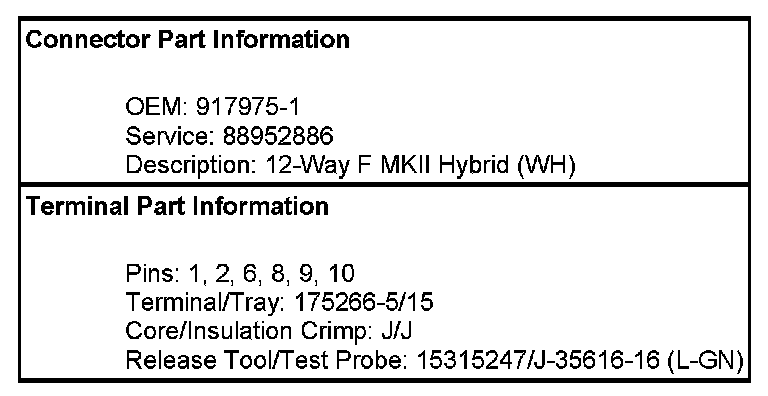

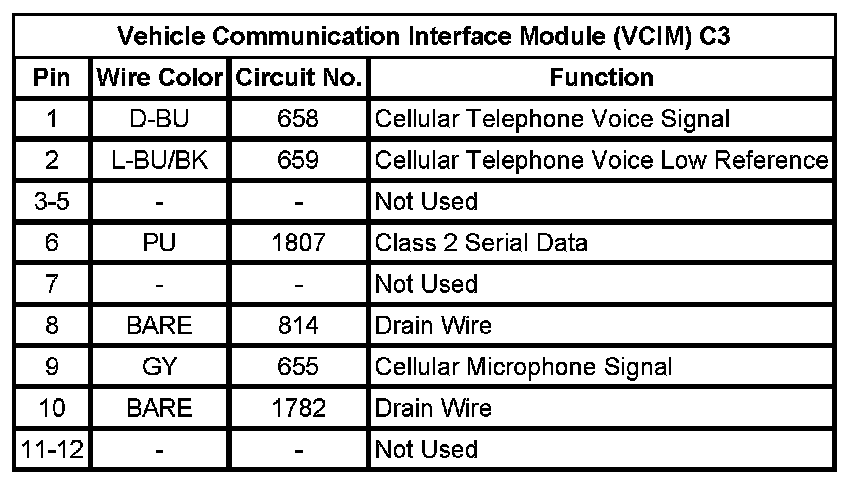

Vehicle Communication Interface Module (VCIM) C3
