Left Rear Fuse Block
Left Rear Fuse Block

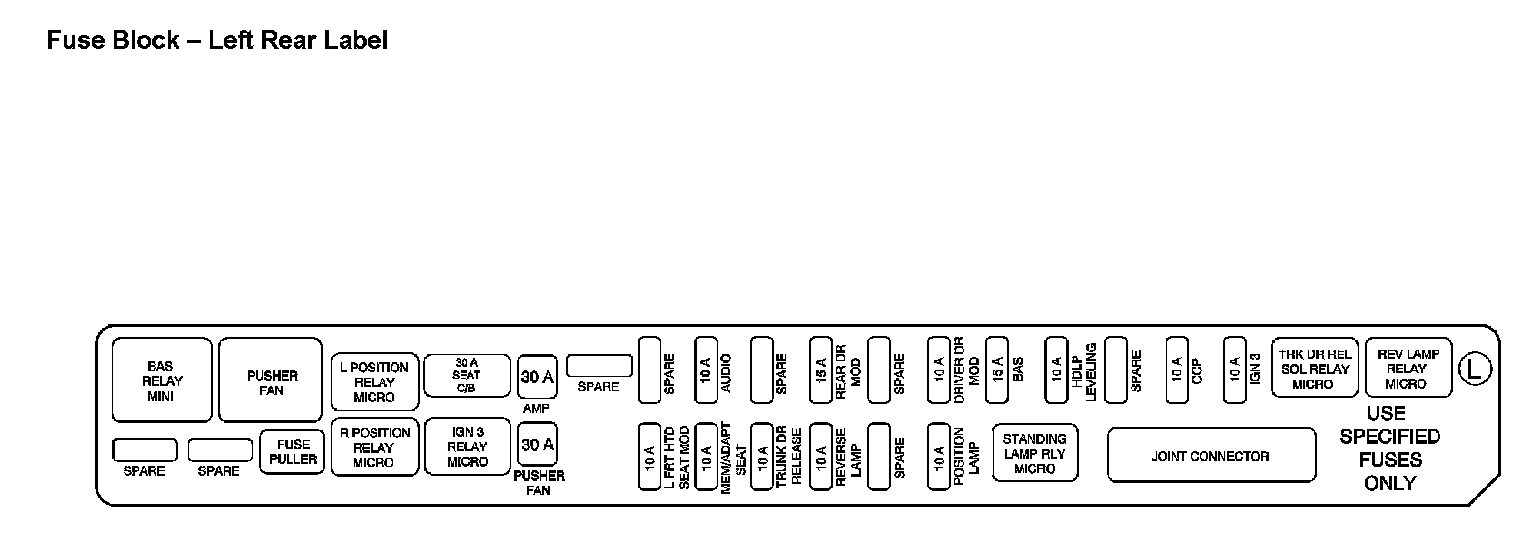

Location View:

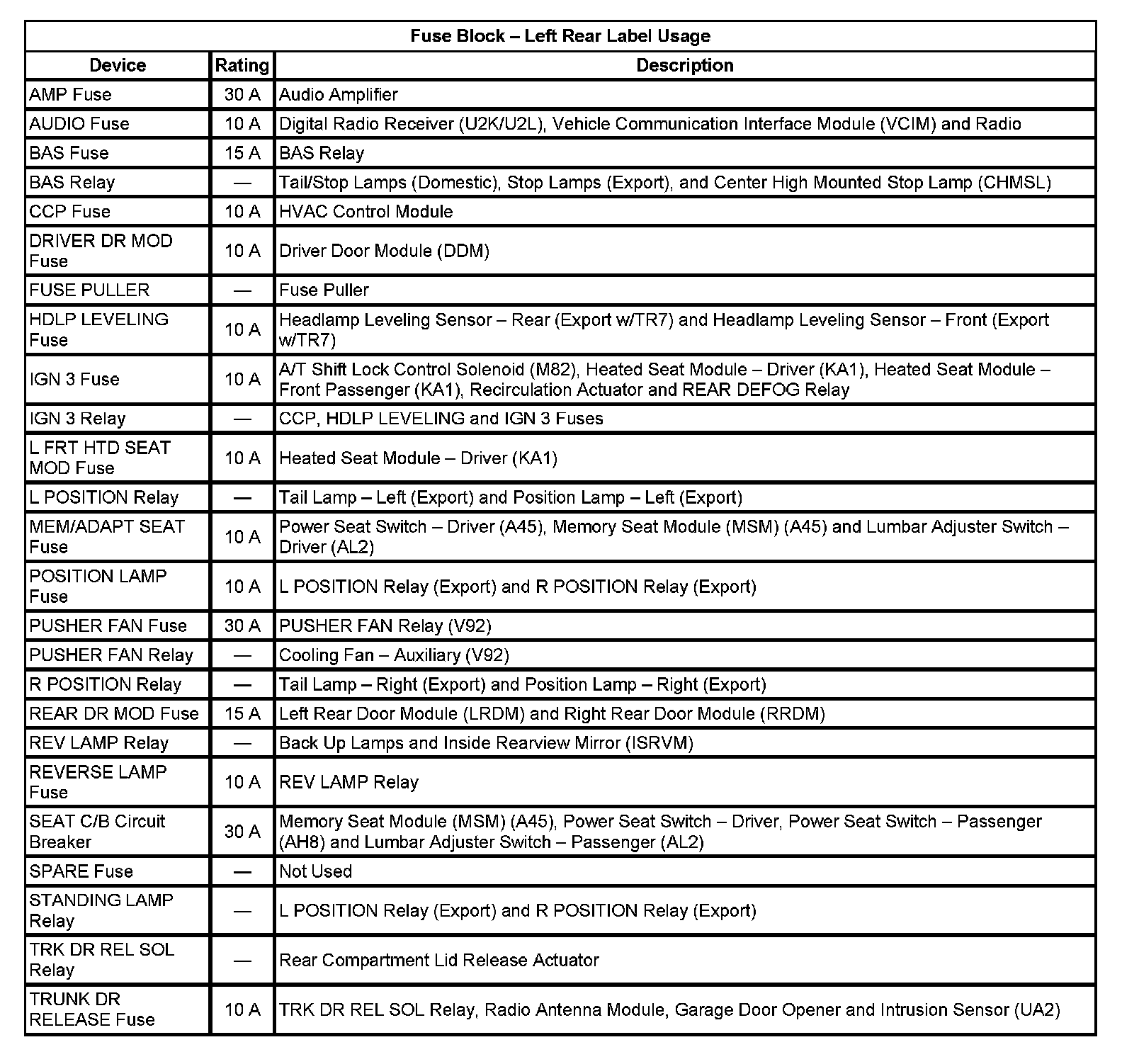

Application Table:

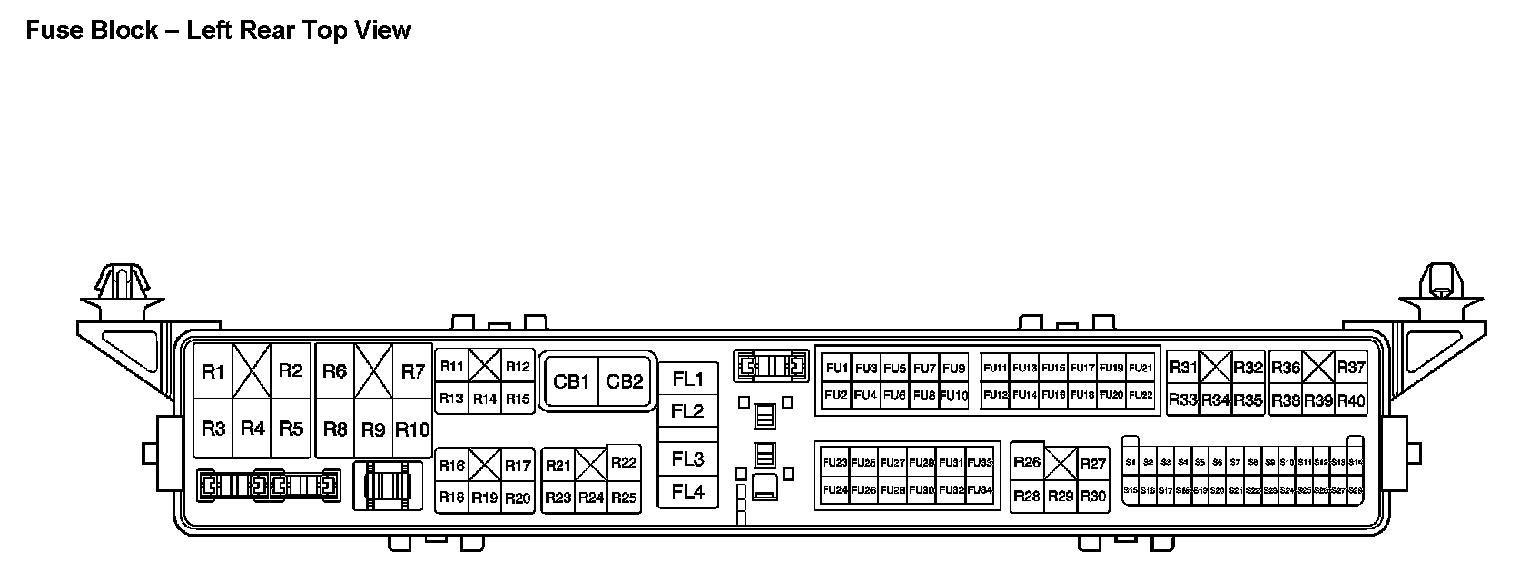

Location View:

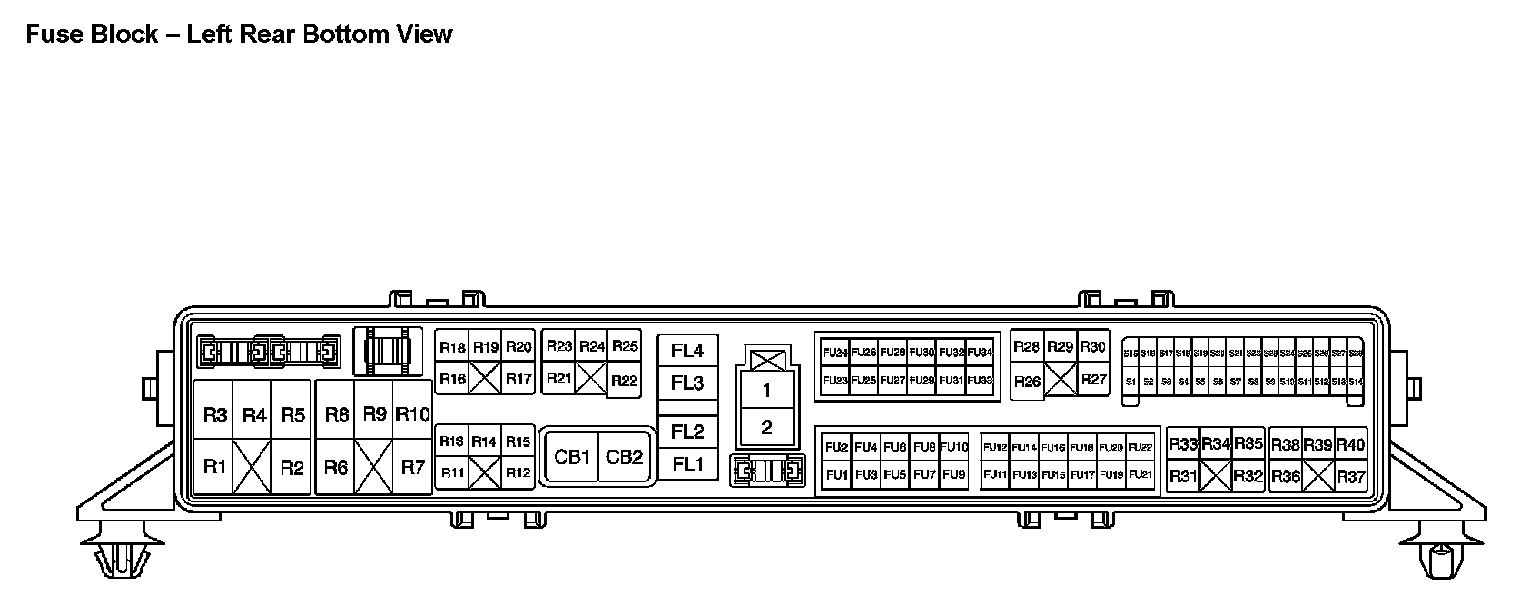

Location View:
