Home >> Cadillac >> 2006 >> CTS V6-2.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Wiper Control Module

Wiper Control Module

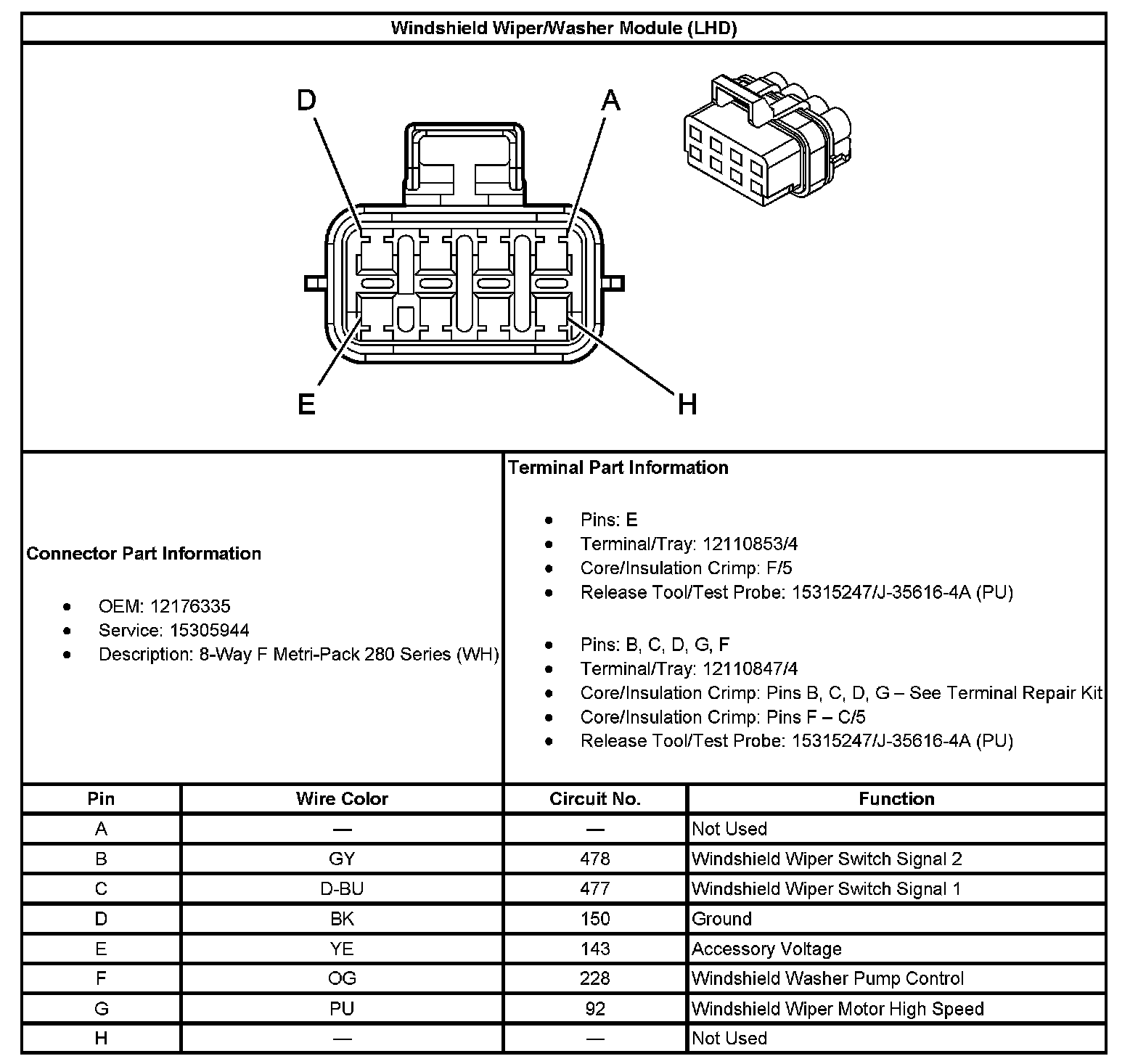

Windshield Wiper/Washer Module (LHD):

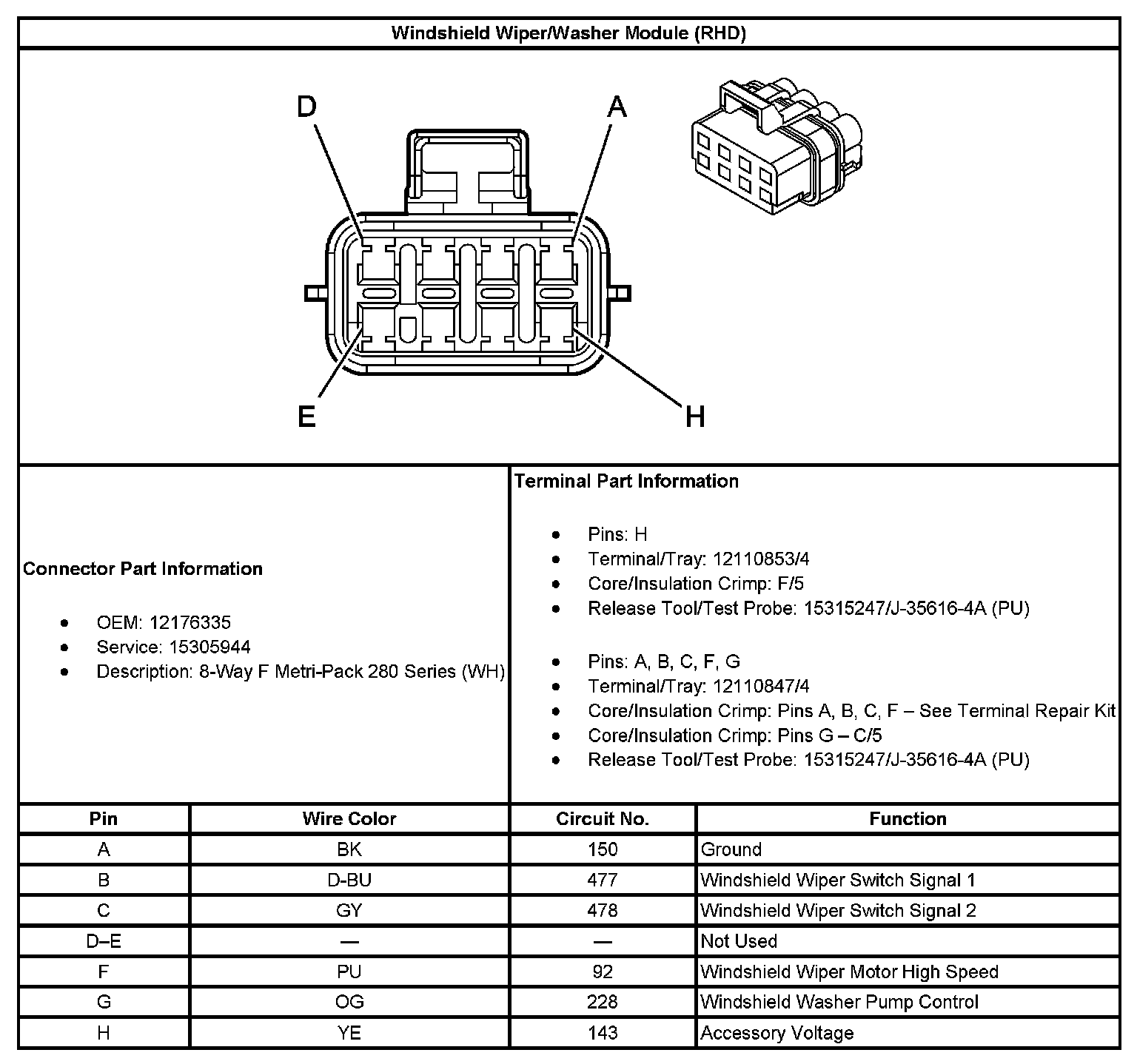

Windshield Wiper/Washer Module (RHD):
