Sunroof / Moonroof Module
Sunroof / Moonroof Module

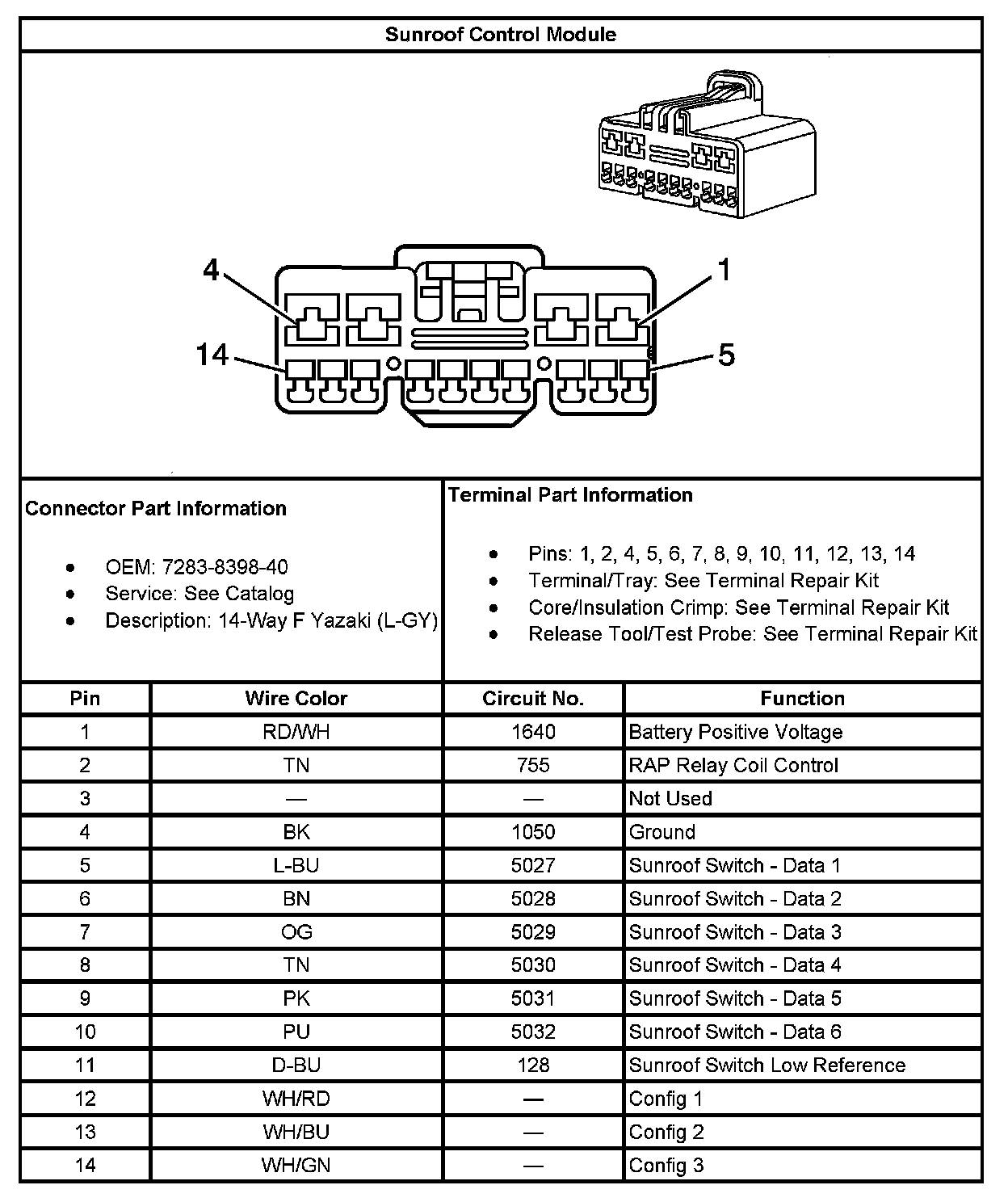

Sunroof Control Module:
Sunroof Module C1:

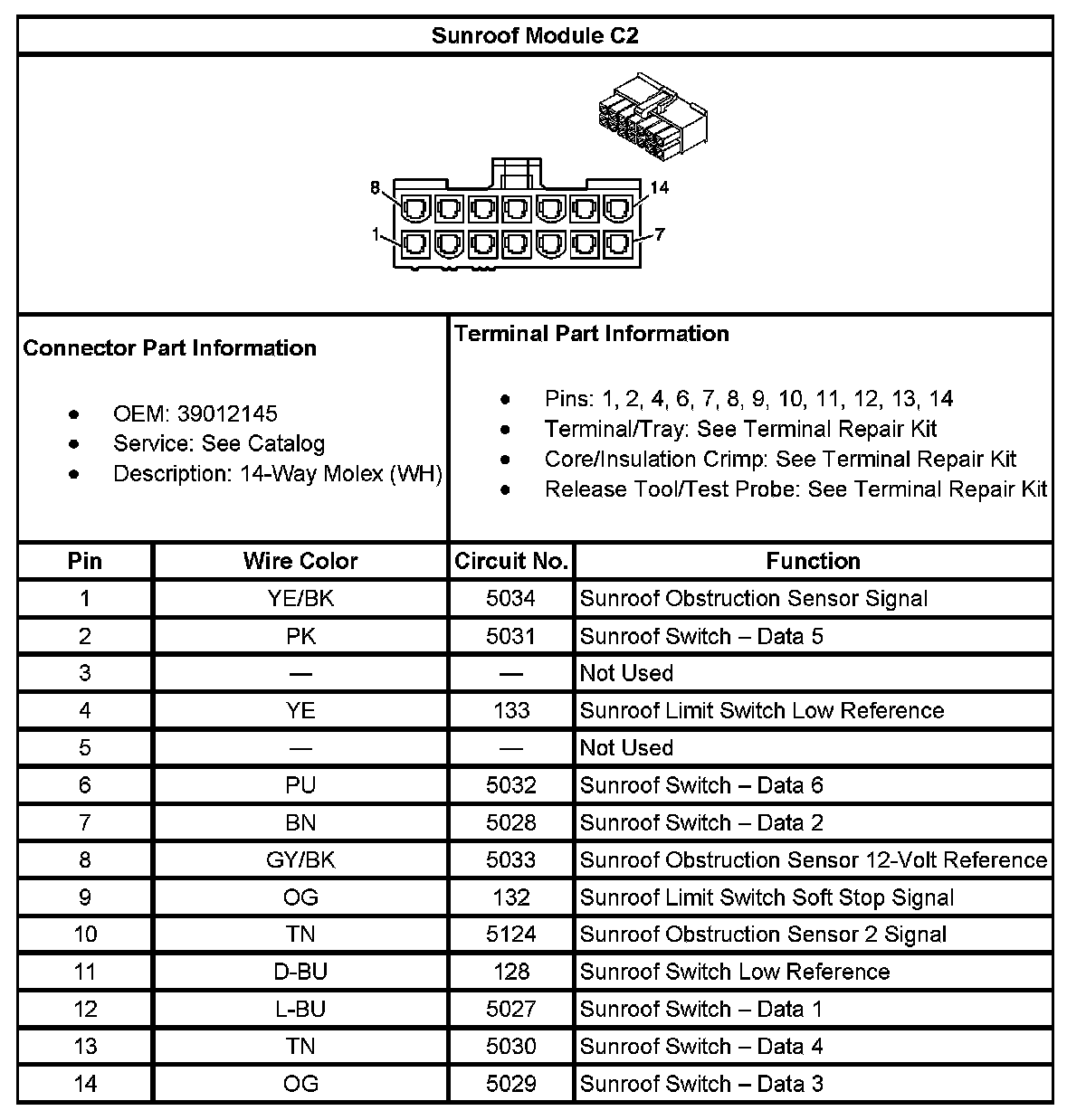

Sunroof Module C2:
