Seat Temperature Control Module

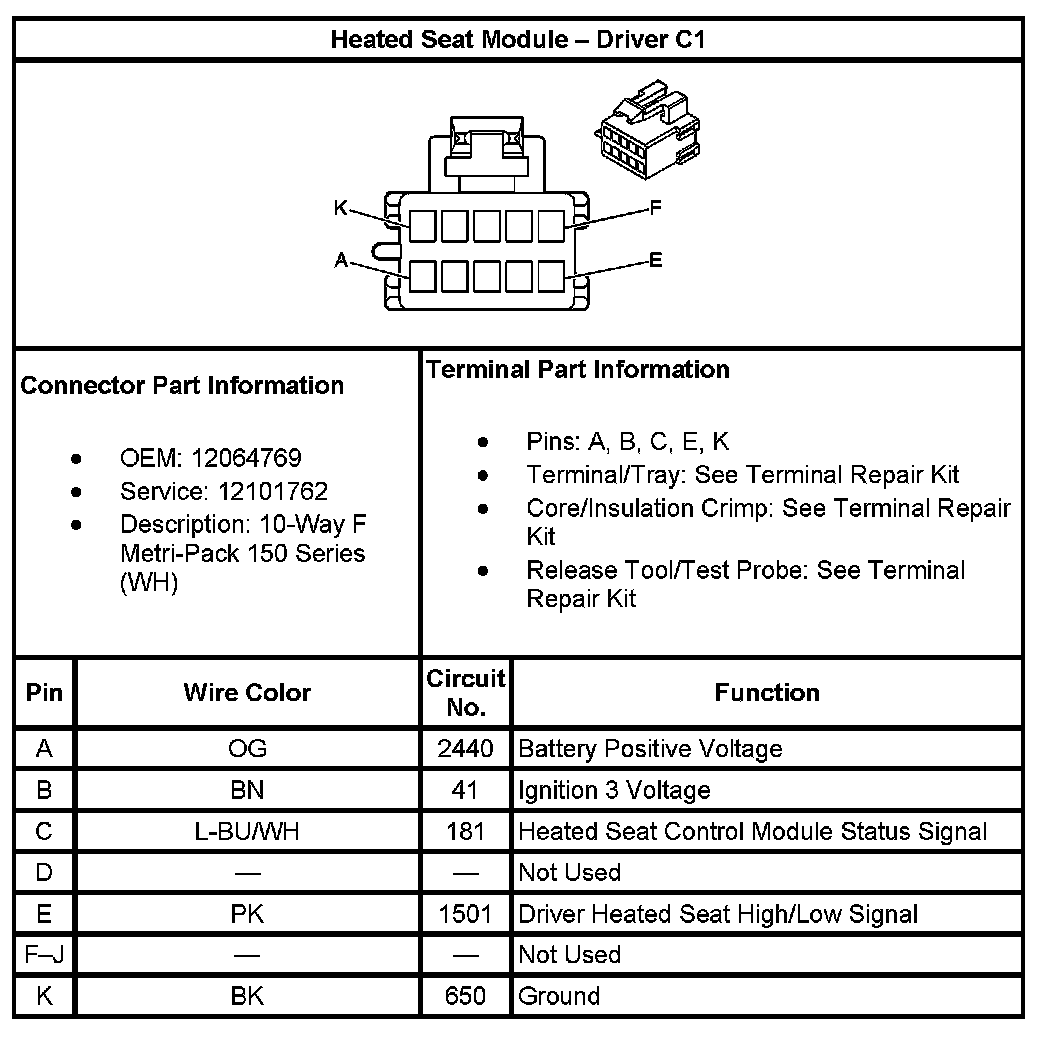

Heated Seat Module - Driver C1:

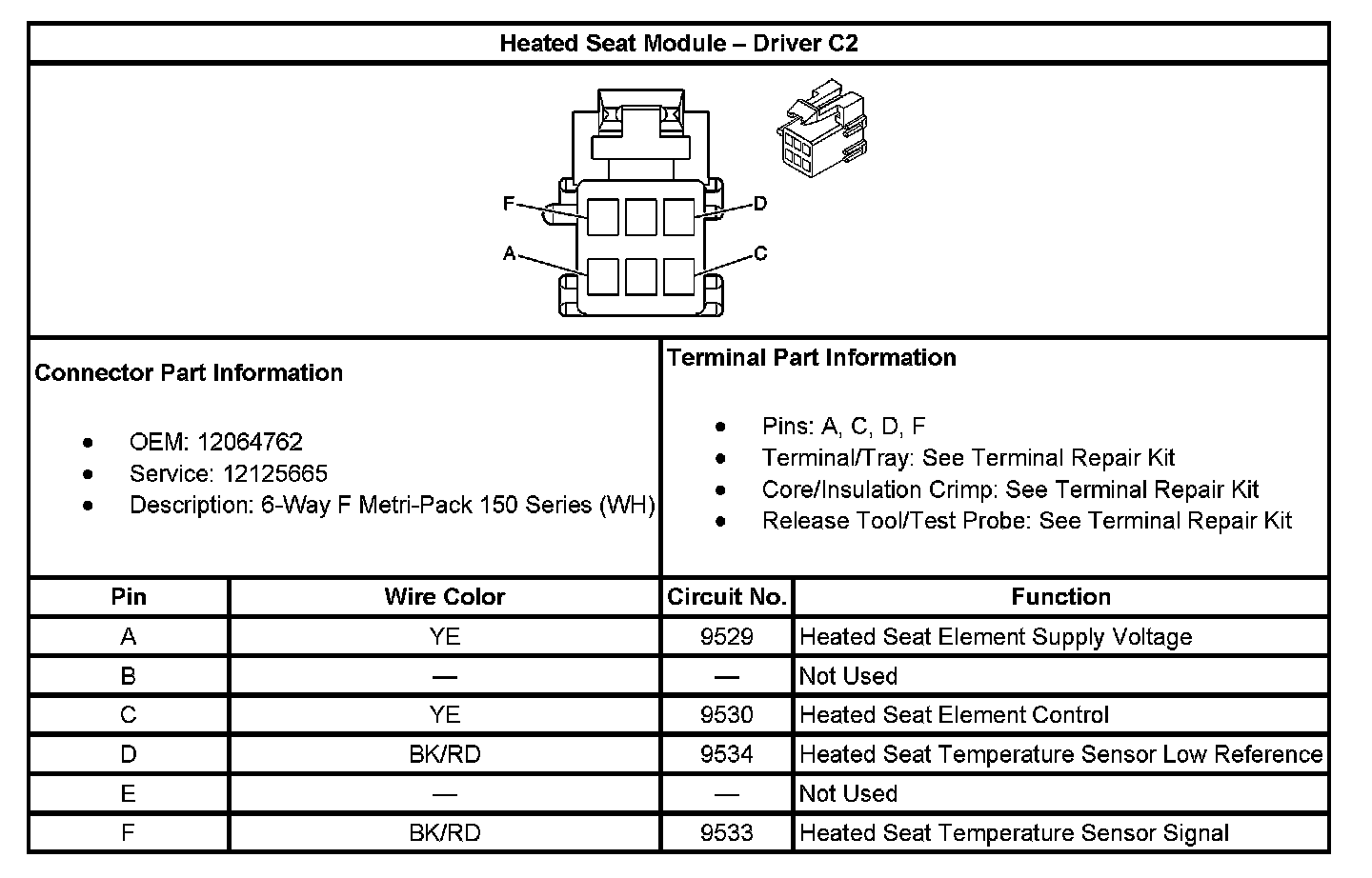

Heated Seat Module - Driver C2:

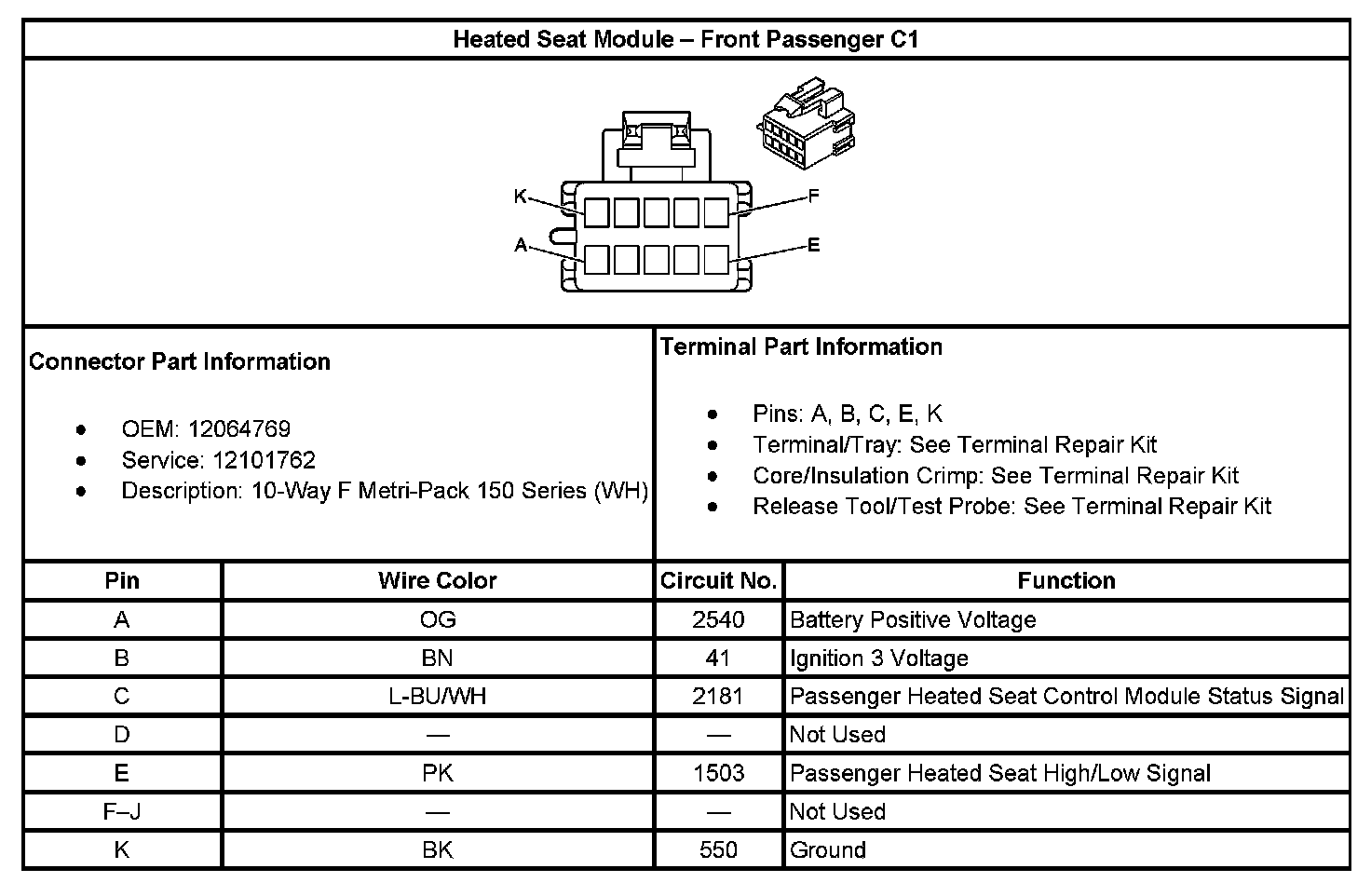

Heated Seat Module - Front Passenger C1:

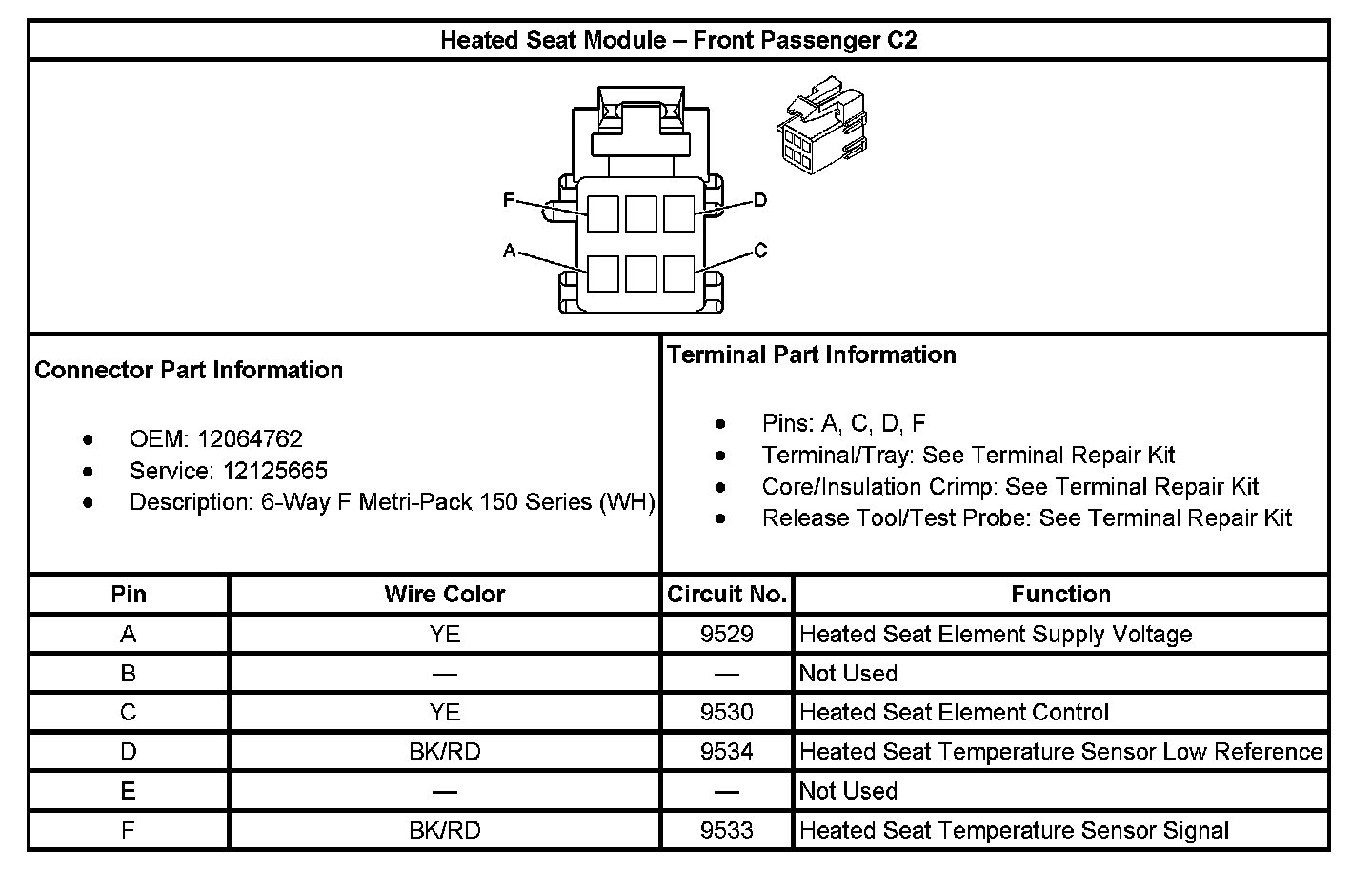

Heated Seat Module - Front Passenger C2:
