Power Window Switch
Power Window Switch

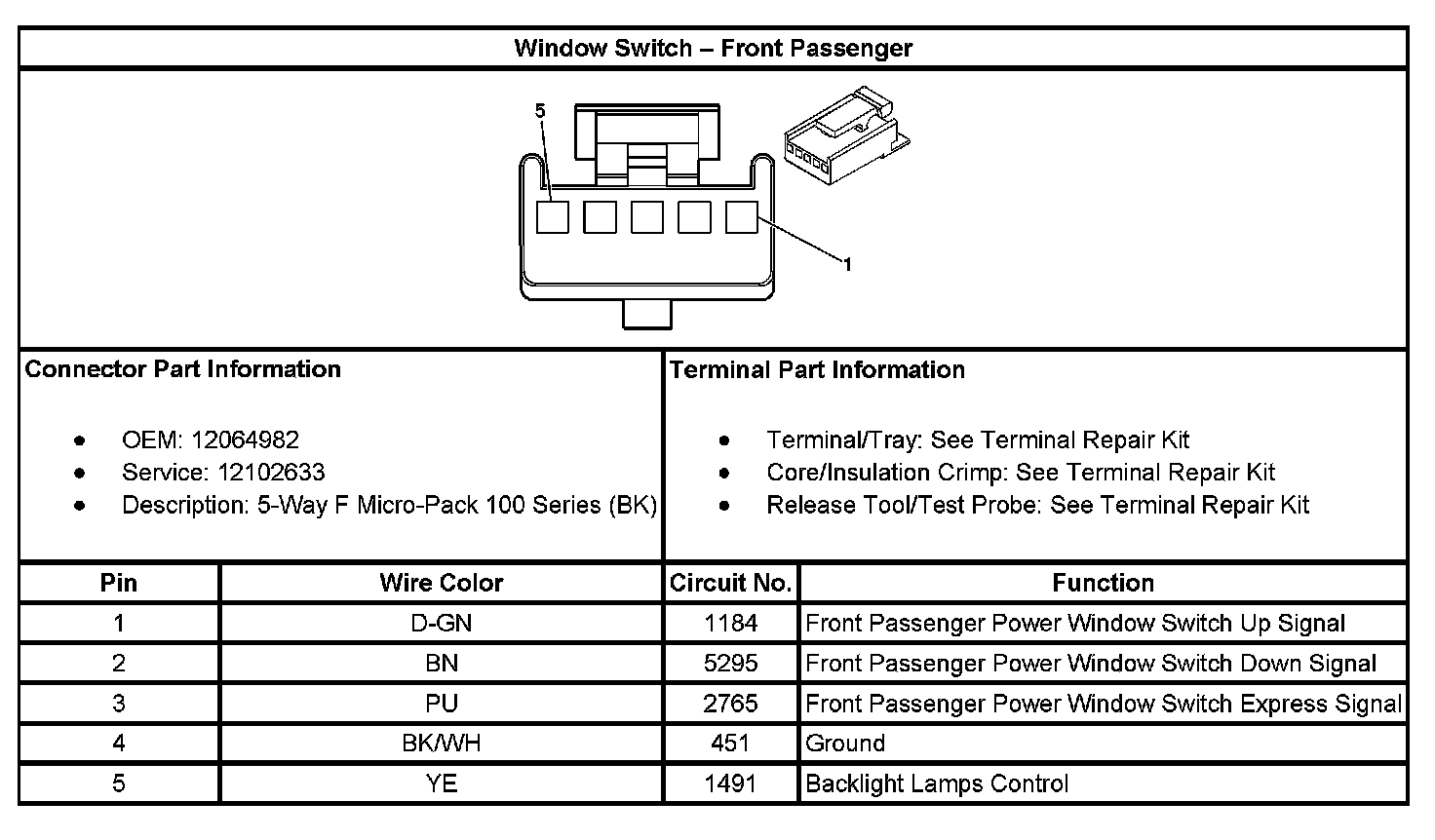

Window Switch - Front Passenger:
Window Switch - Left Rear:
Window Switch - Right Rear:
