Cadillac
>>
2006
>>
CTS V6-2.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Global Positioning System Module
Global Positioning System Module
Vehicle Communication Interface Module (VCIM) C1:
Vehicle Communication Interface Module (VCIM) C2:

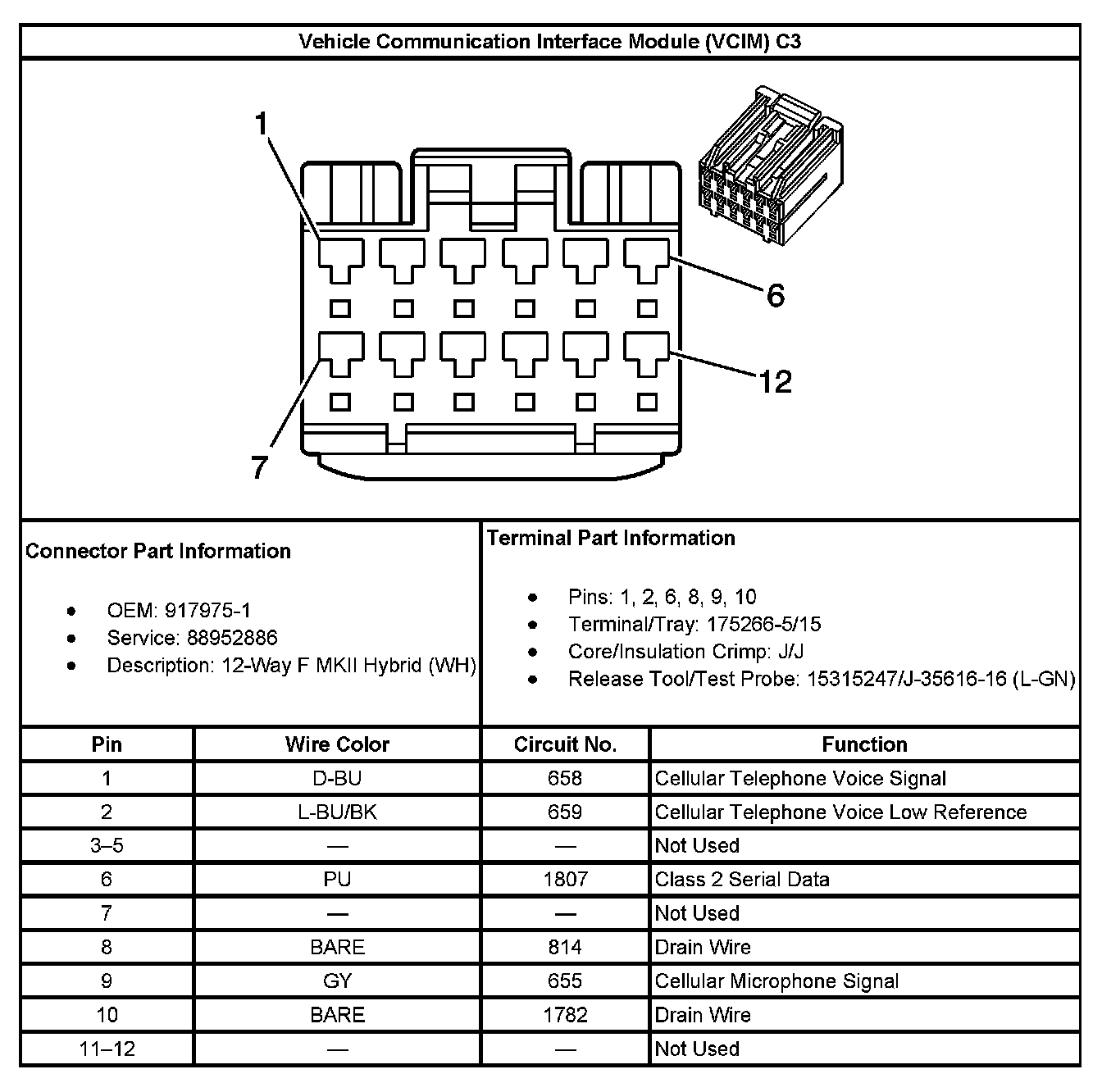

Vehicle Communication Interface Module (VCIM) C3:
