Home >> Cadillac >> 2006 >> CTS V6-2.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module

Electronic Brake Control Module

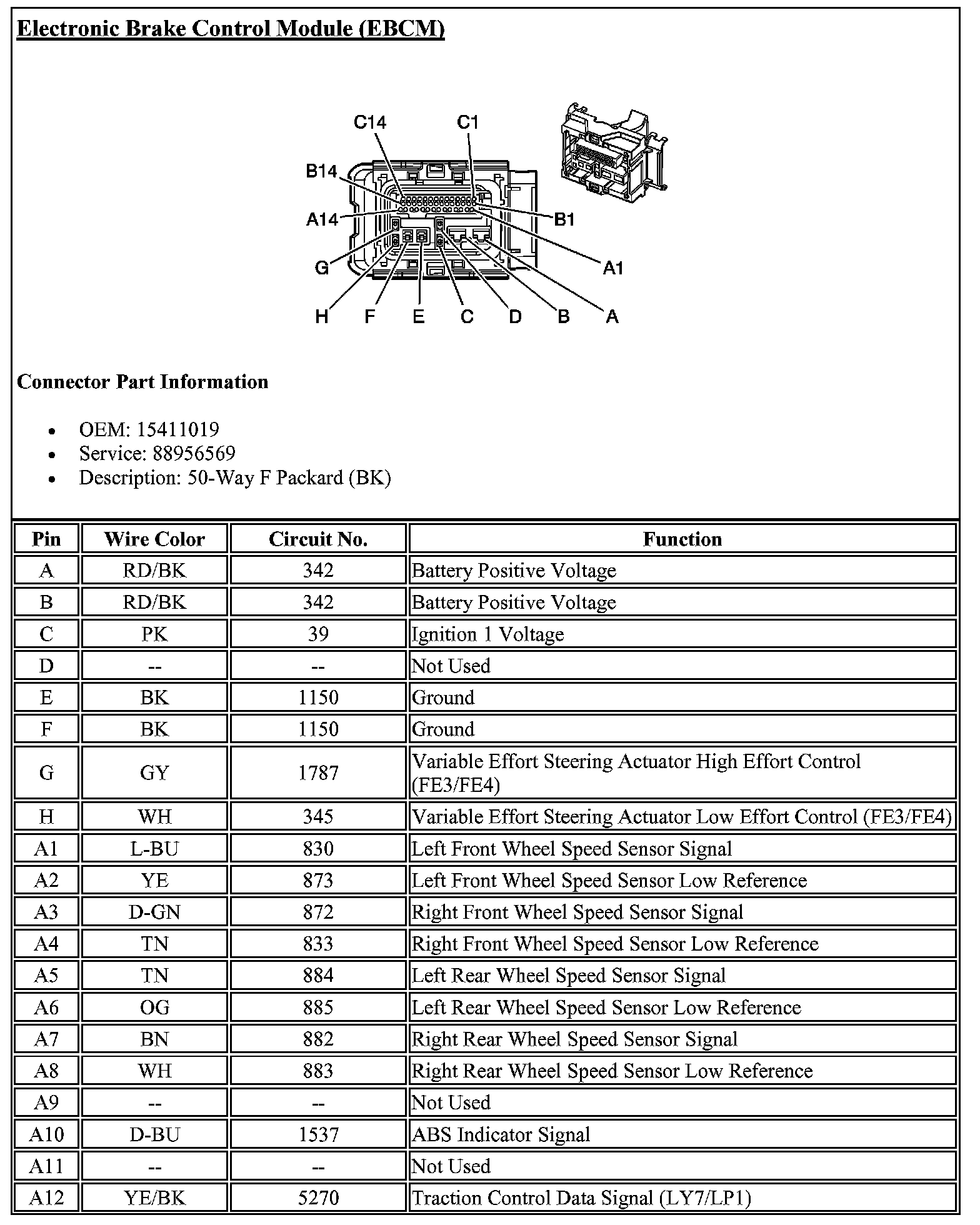

Electronic Brake Control Module (Part 1):

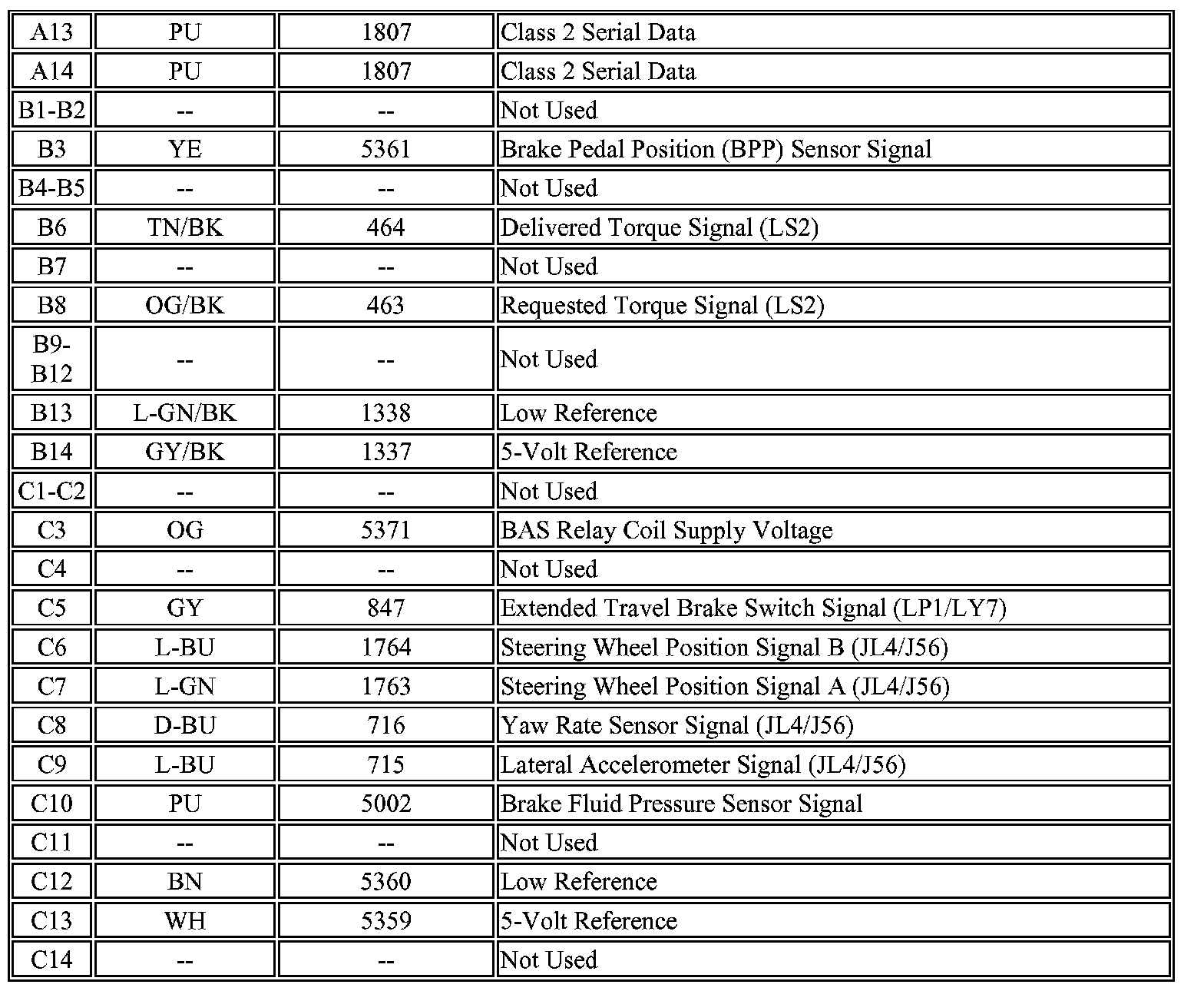

Electronic Brake Control Module (Part 2):
