Dash Integration Module (DIM)

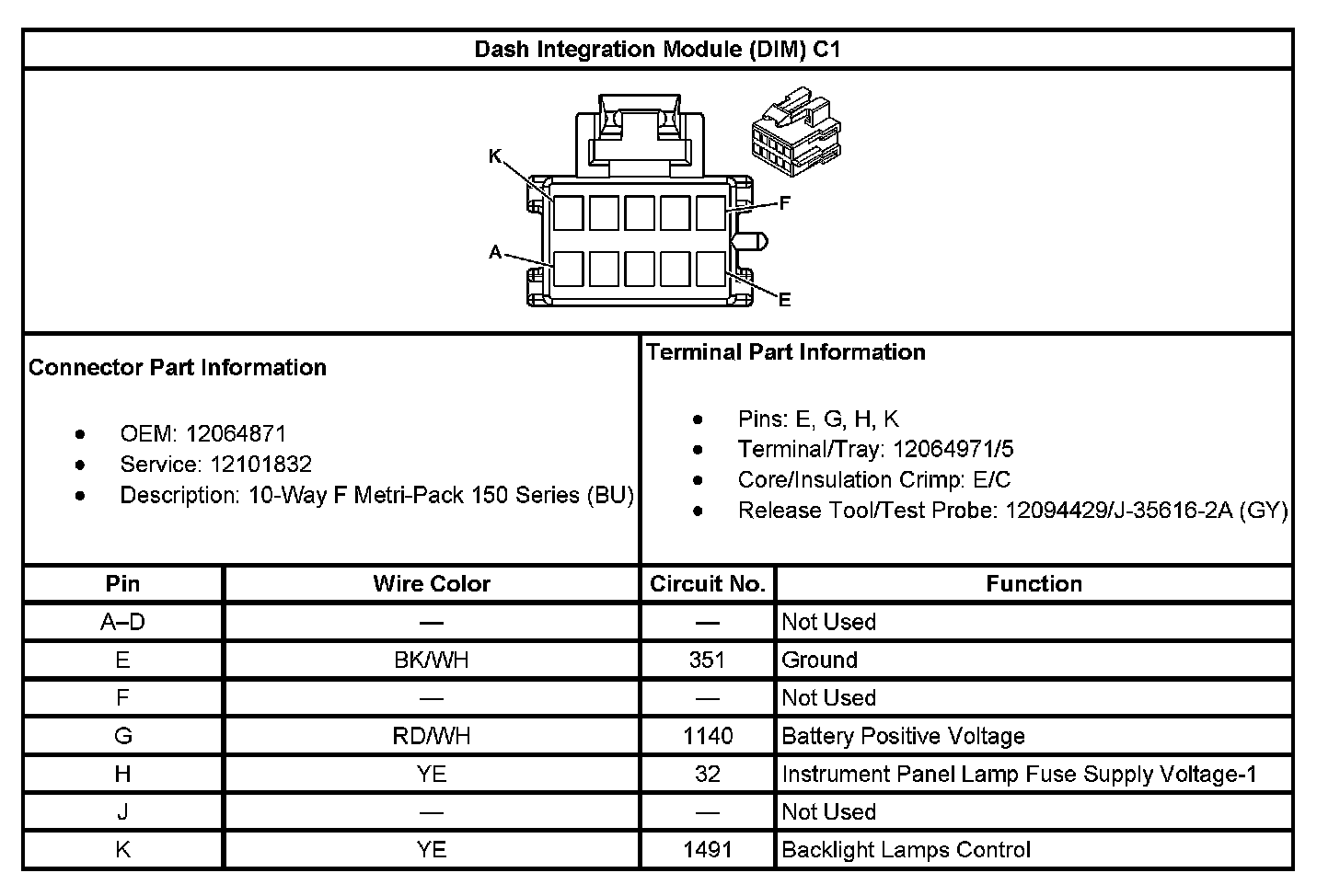

Dash Integration Module (DIM) C1:

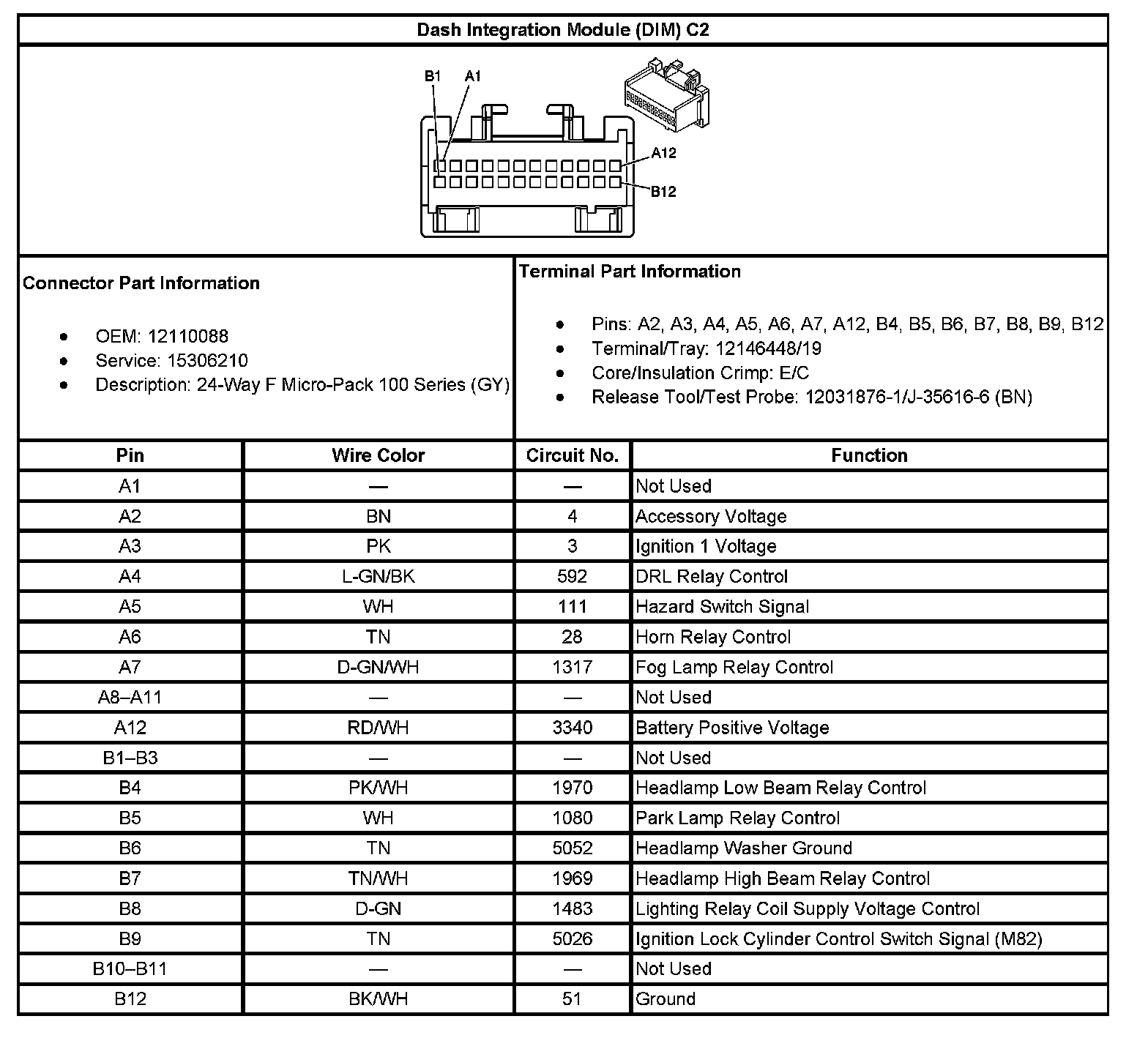

Dash Integration Module (DIM) C2:

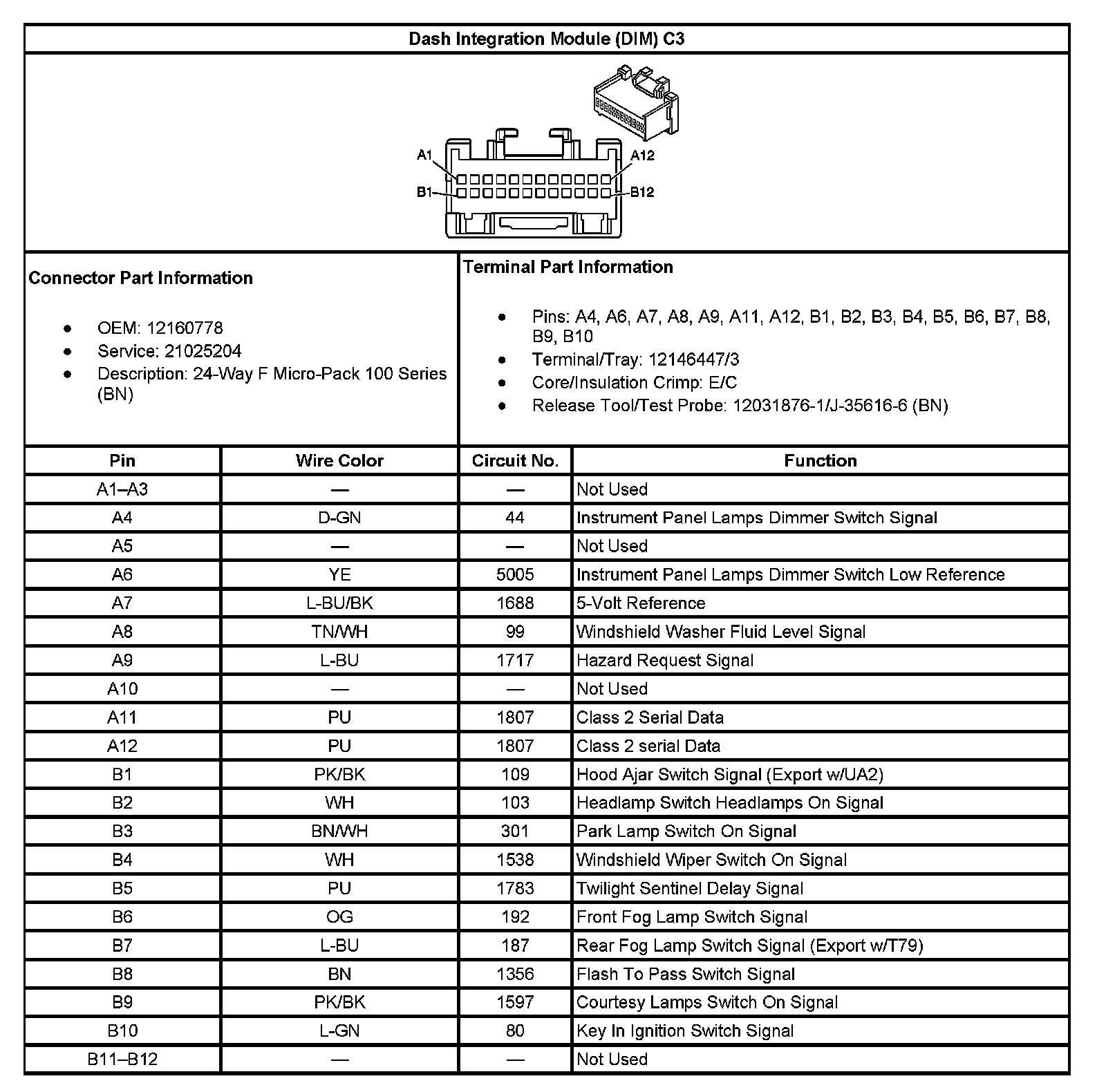

Dash Integration Module (DIM) C3:
