Home >> Cadillac >> 2006 >> CTS V6-2.8L >> Repair and Diagnosis >> Diagrams >> Components

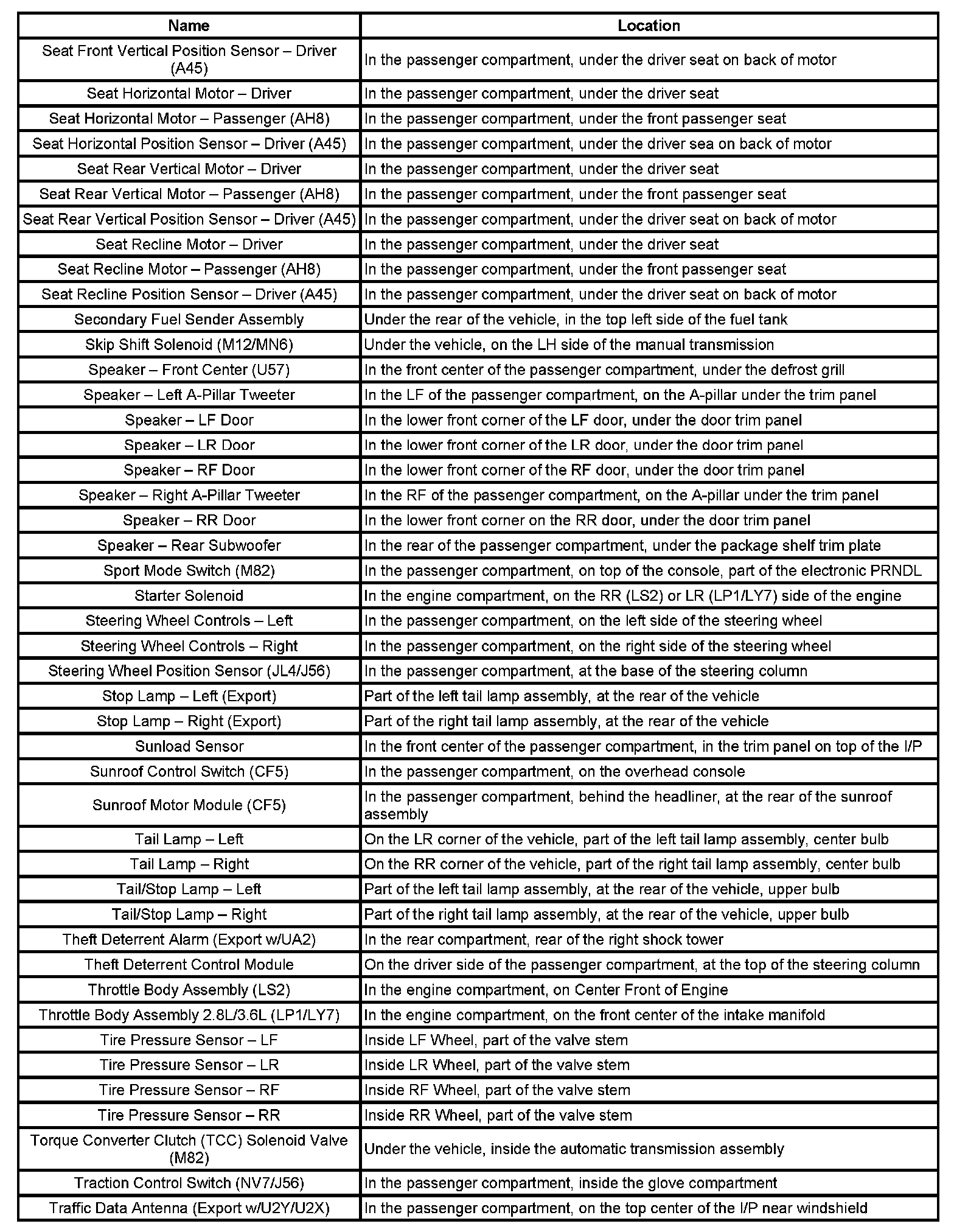

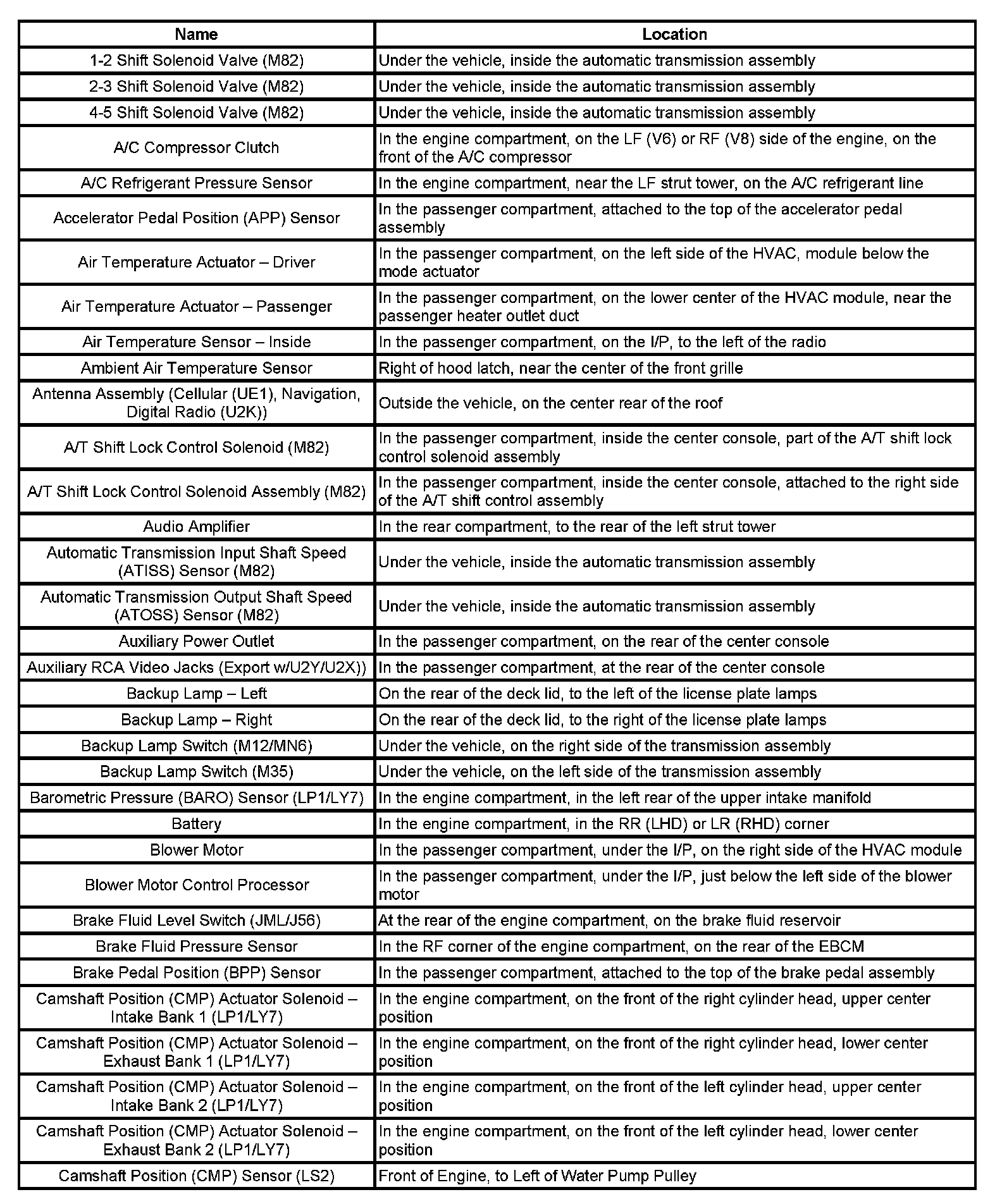

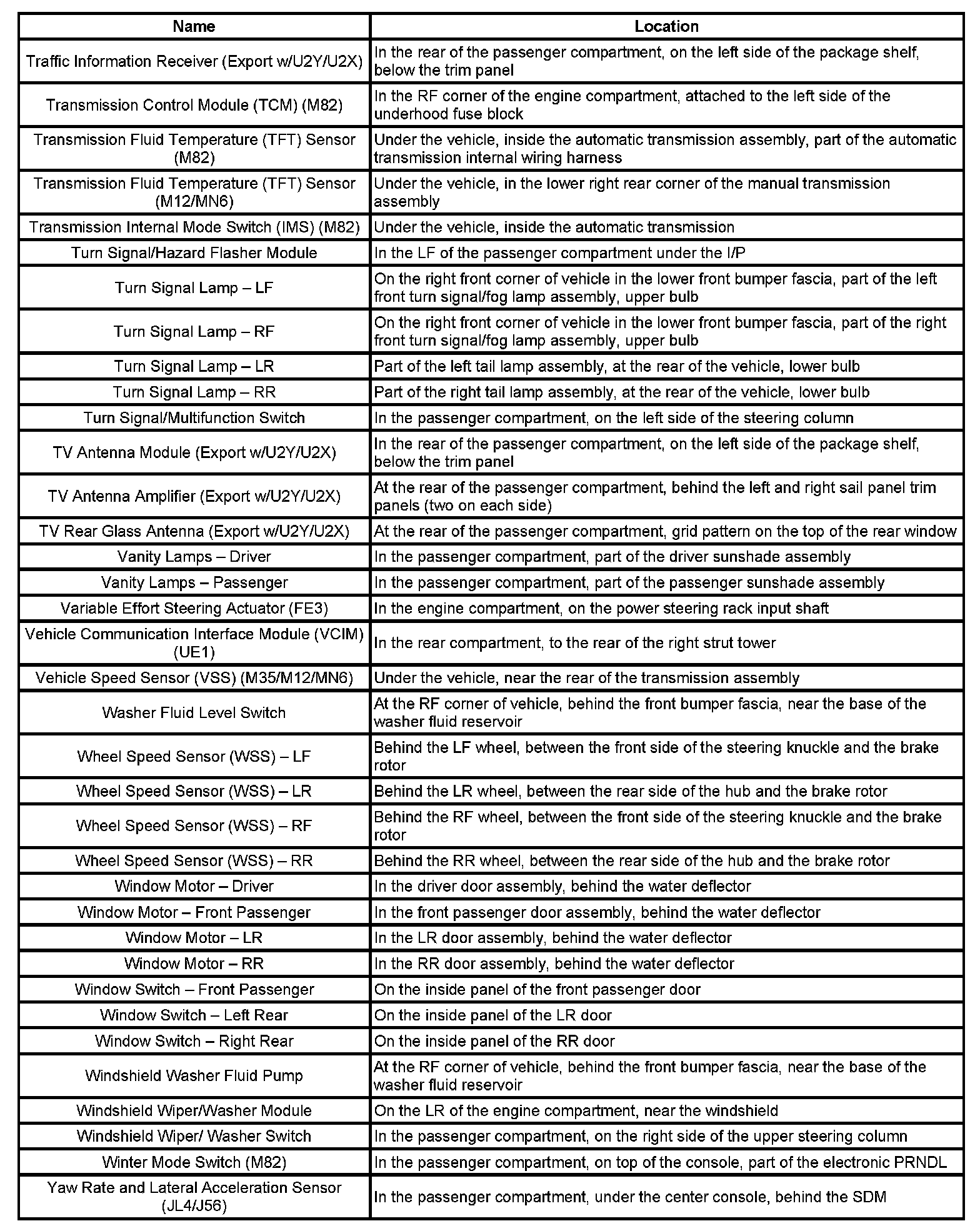

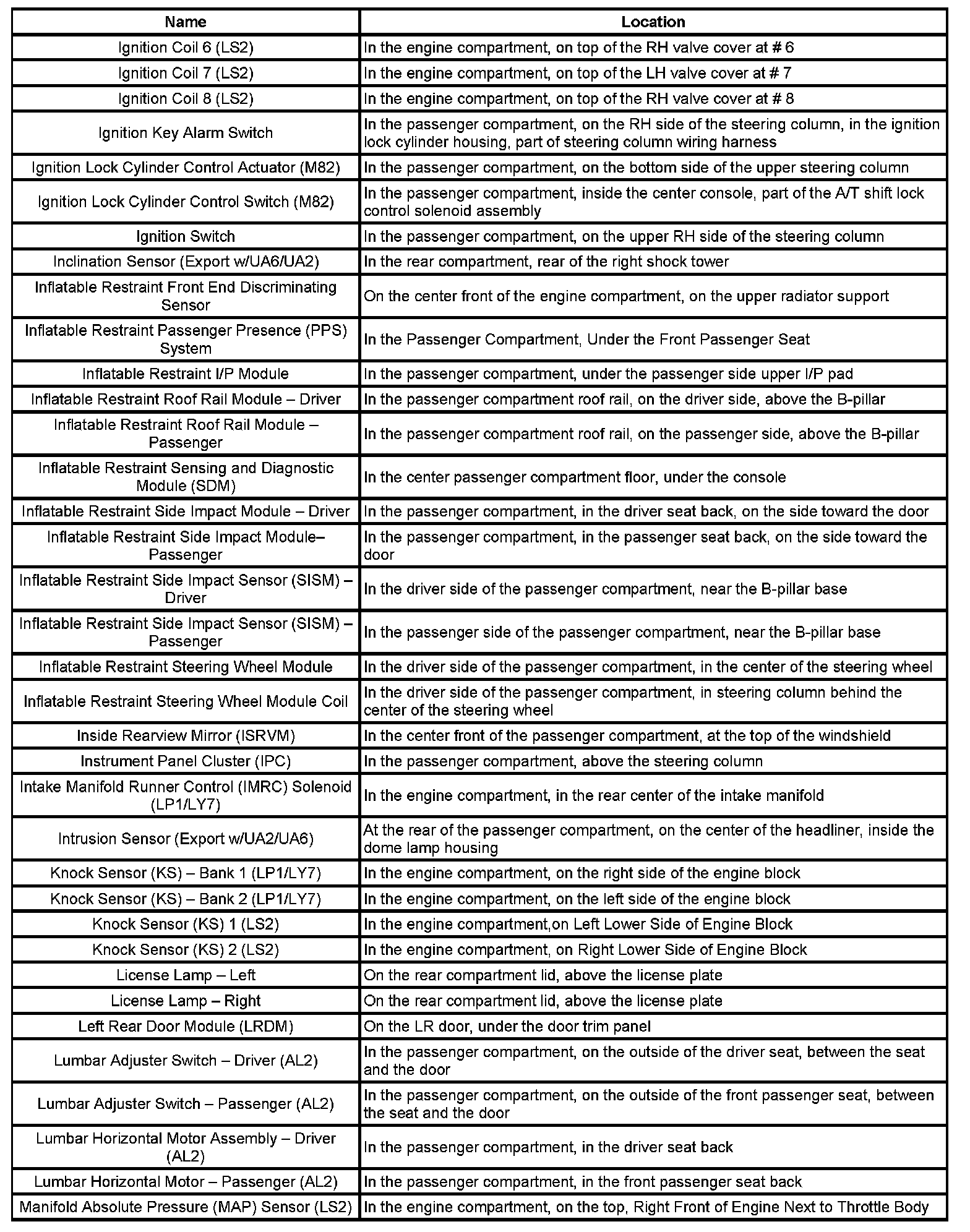

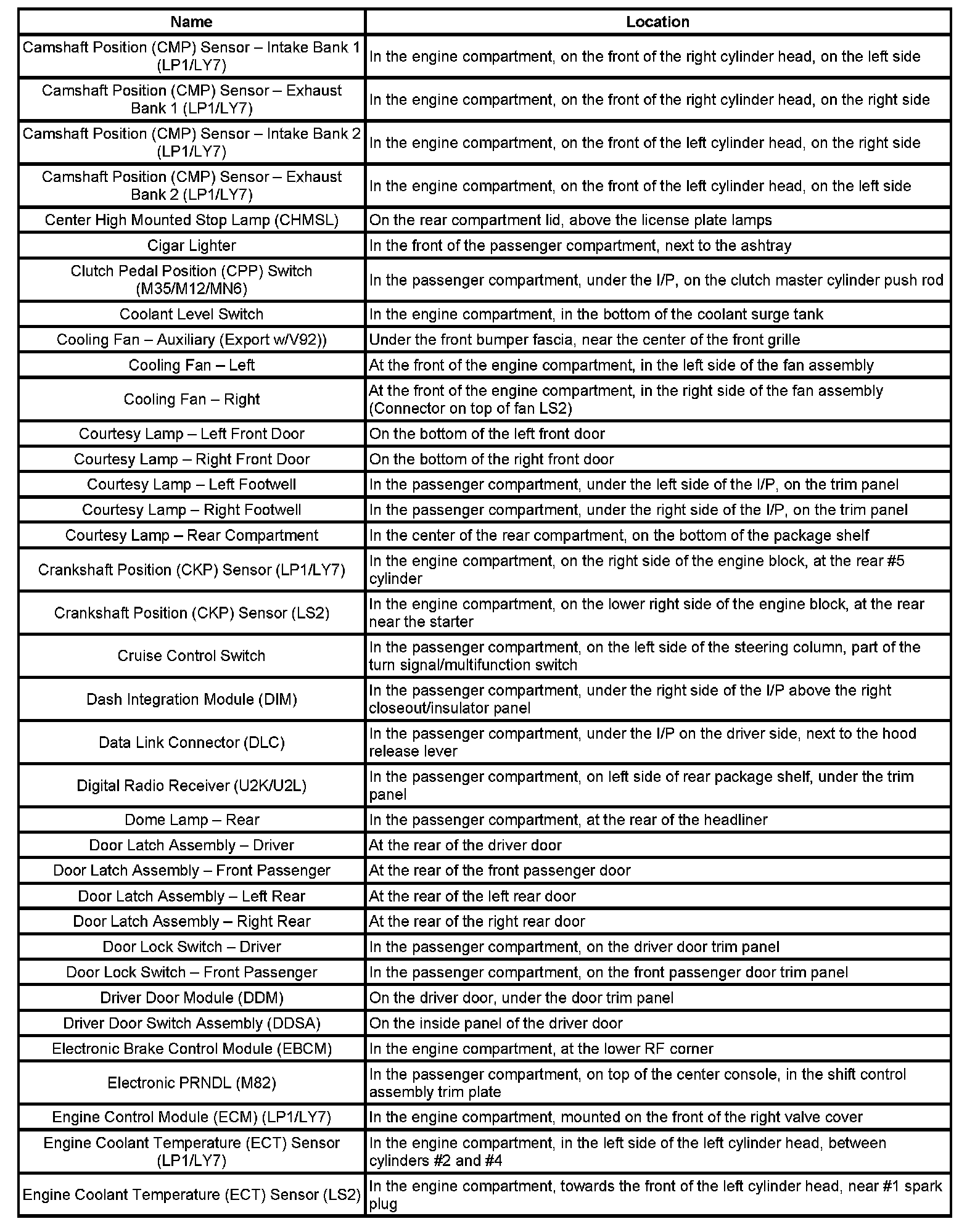

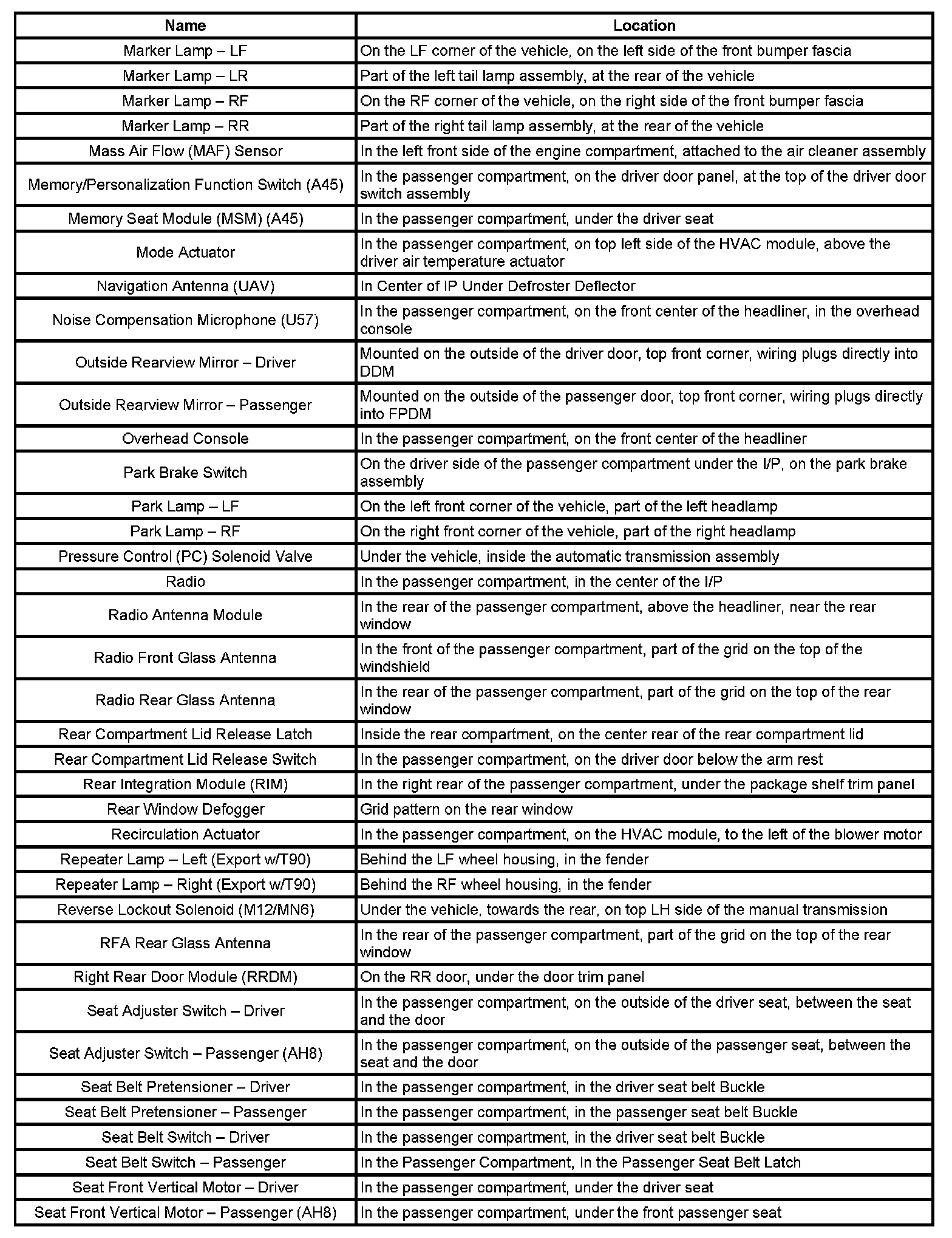

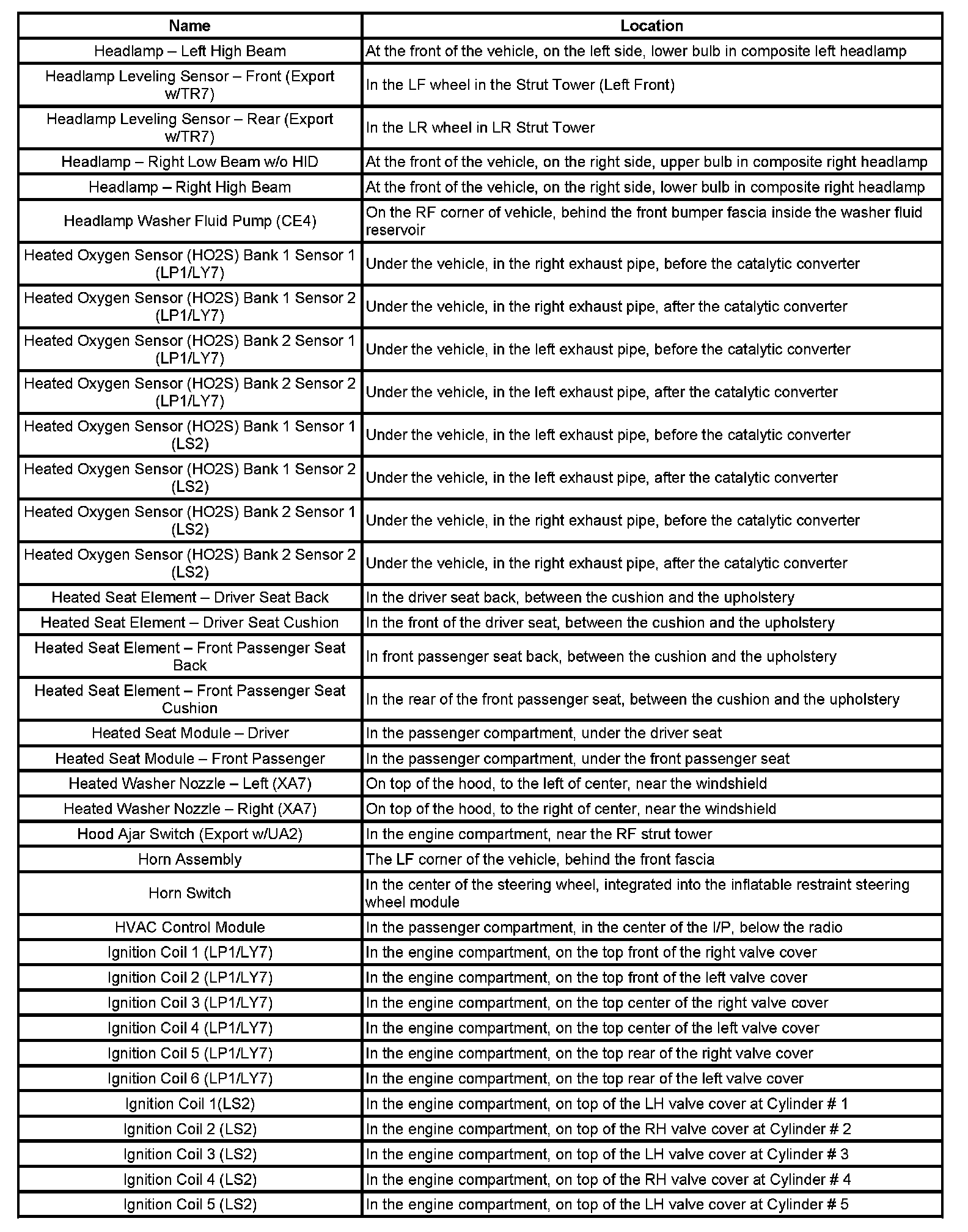

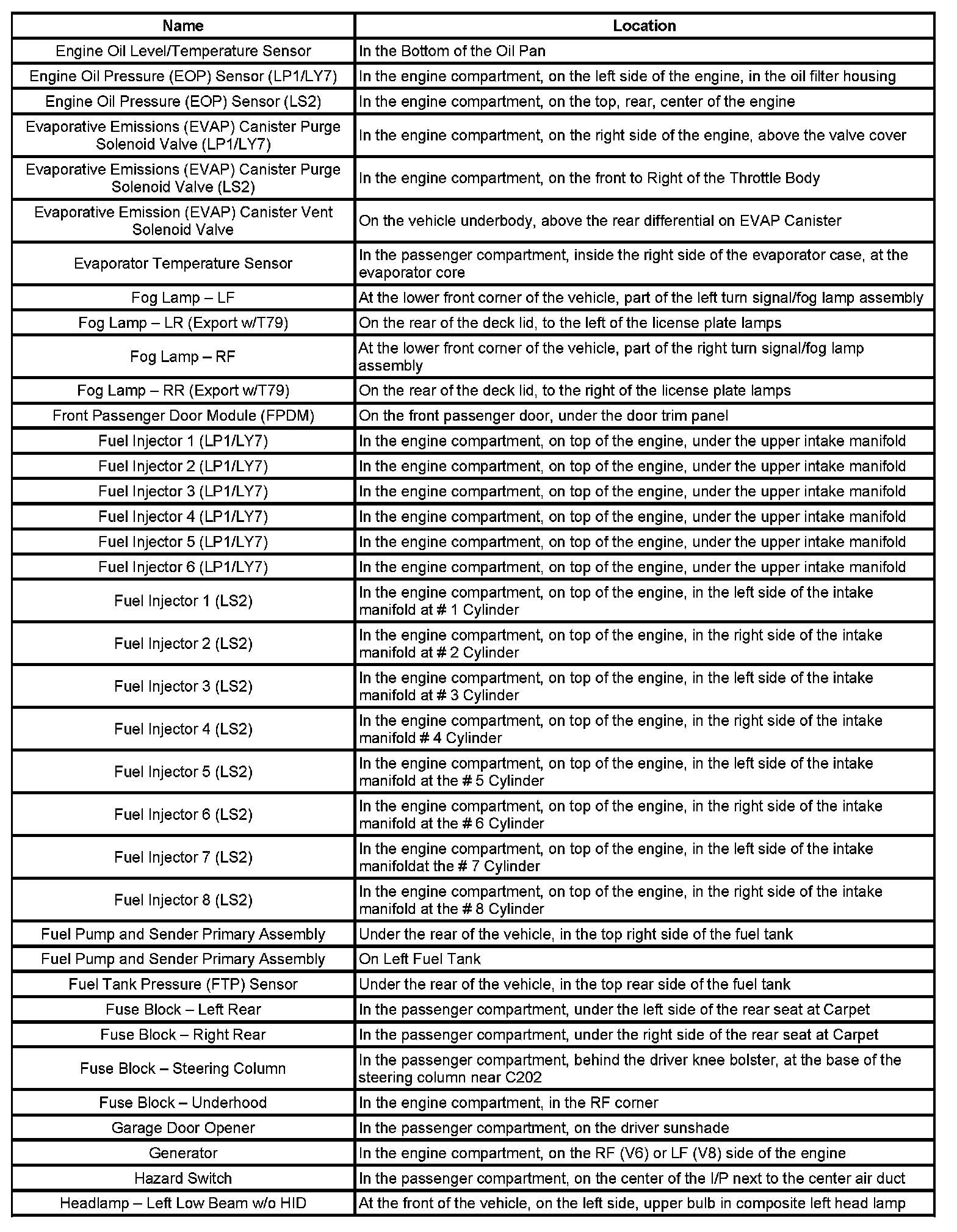

Components



1-2 Sh - Ca:




Ca - En:




En - He:




He - Ig:




Ig - Ma:




Ma - Se:




Se - Tr:




Tr - Ya:
