Home >> Cadillac >> 2006 >> CTS V6-2.8L >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Memory Positioning Systems >> Memory Positioning Module >> Diagrams

Memory Positioning Module: Diagrams

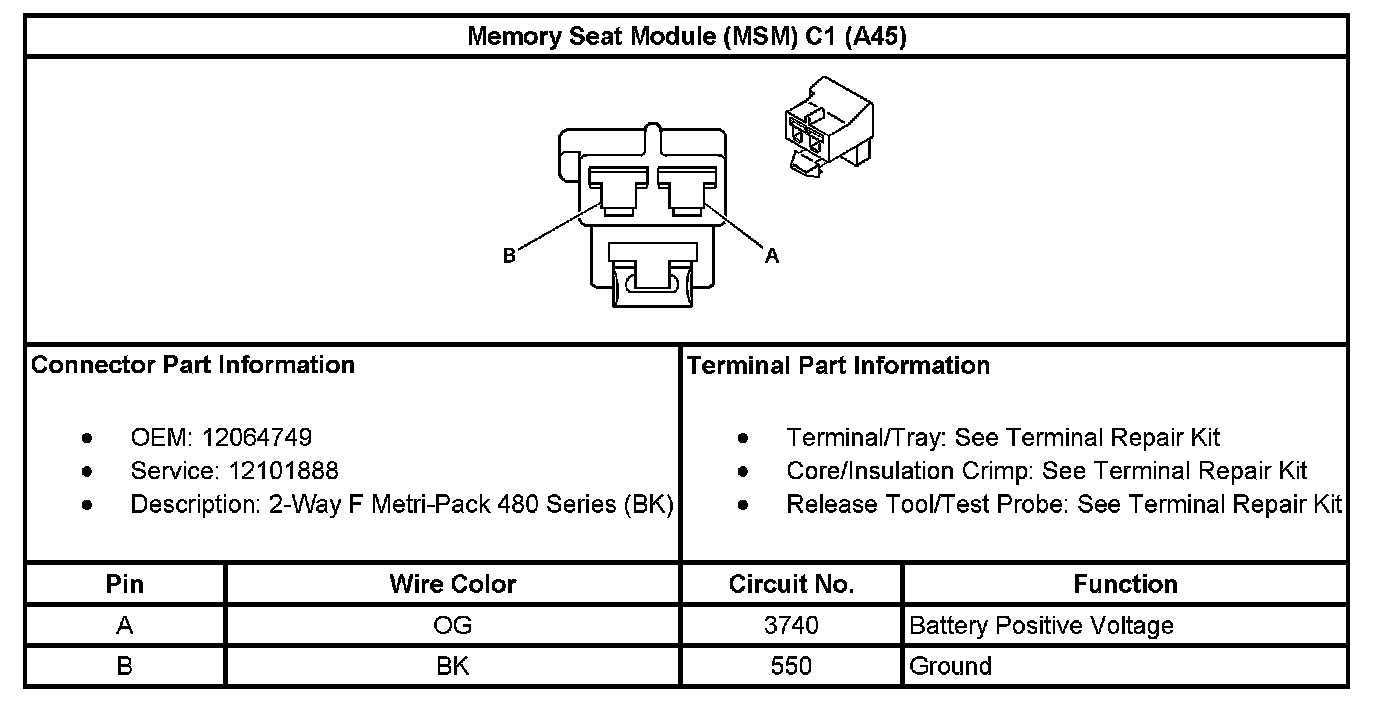

Memory Seat Module (MSM) C1 (With RPO Code A45):

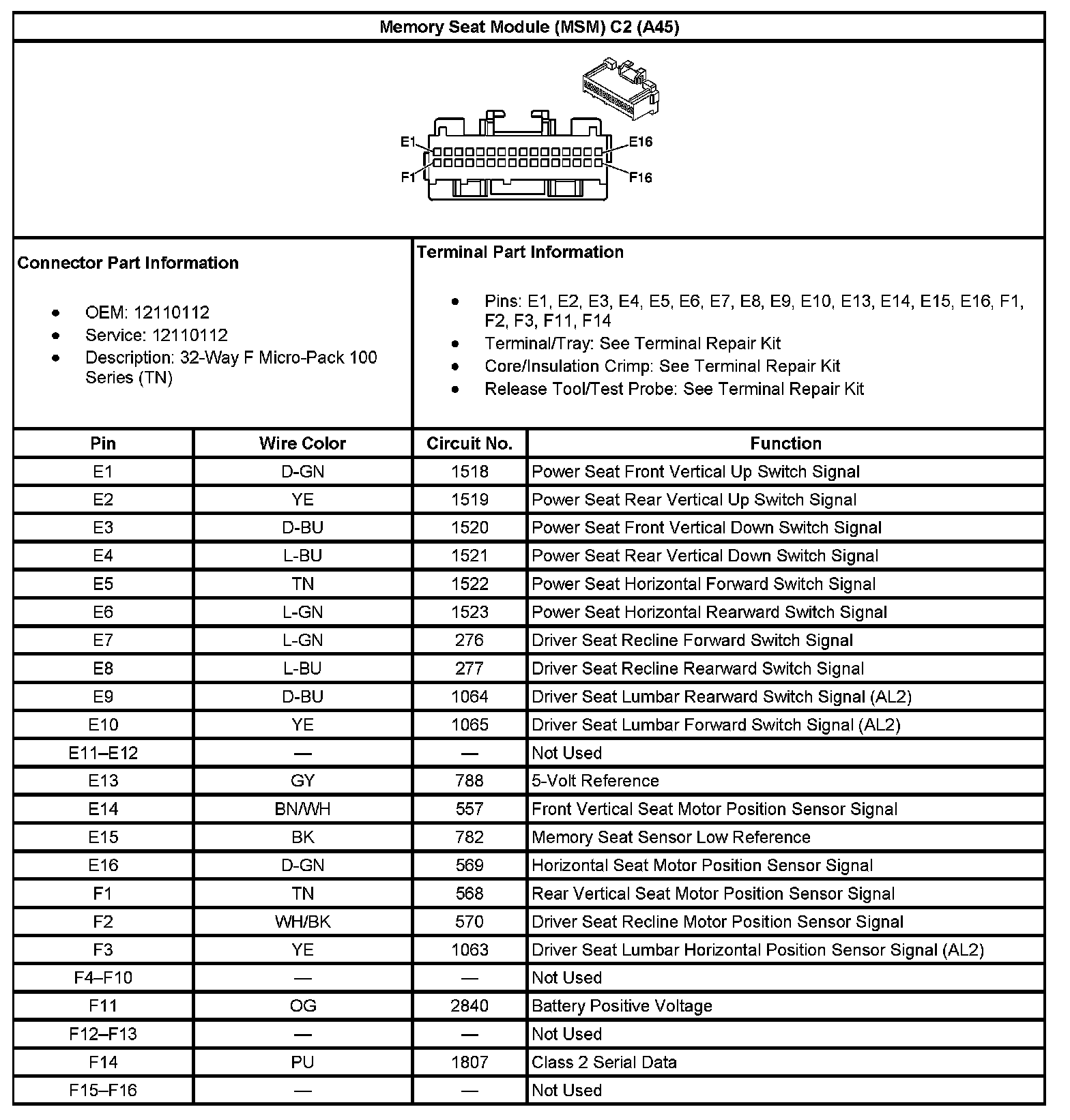

Memory Seat Module (MSM) C2 (With RPO Code A45):

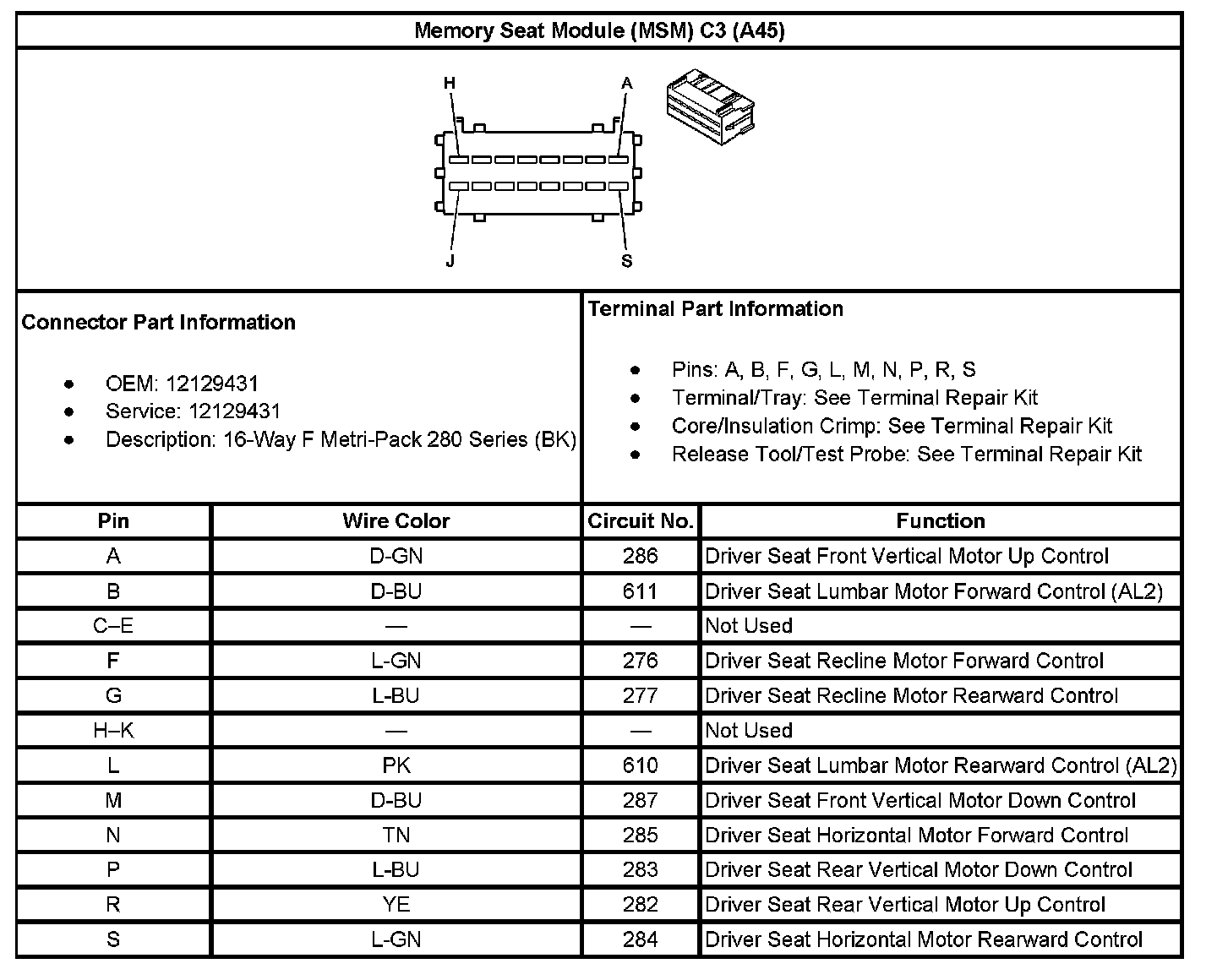

Memory Seat Module (MSM) C3 (With RPO Code A45):
