Home >> Cadillac >> 2004 >> CTS V8-5.7L VIN P >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Scan Tool Output Controls

Scan Tool Output Controls

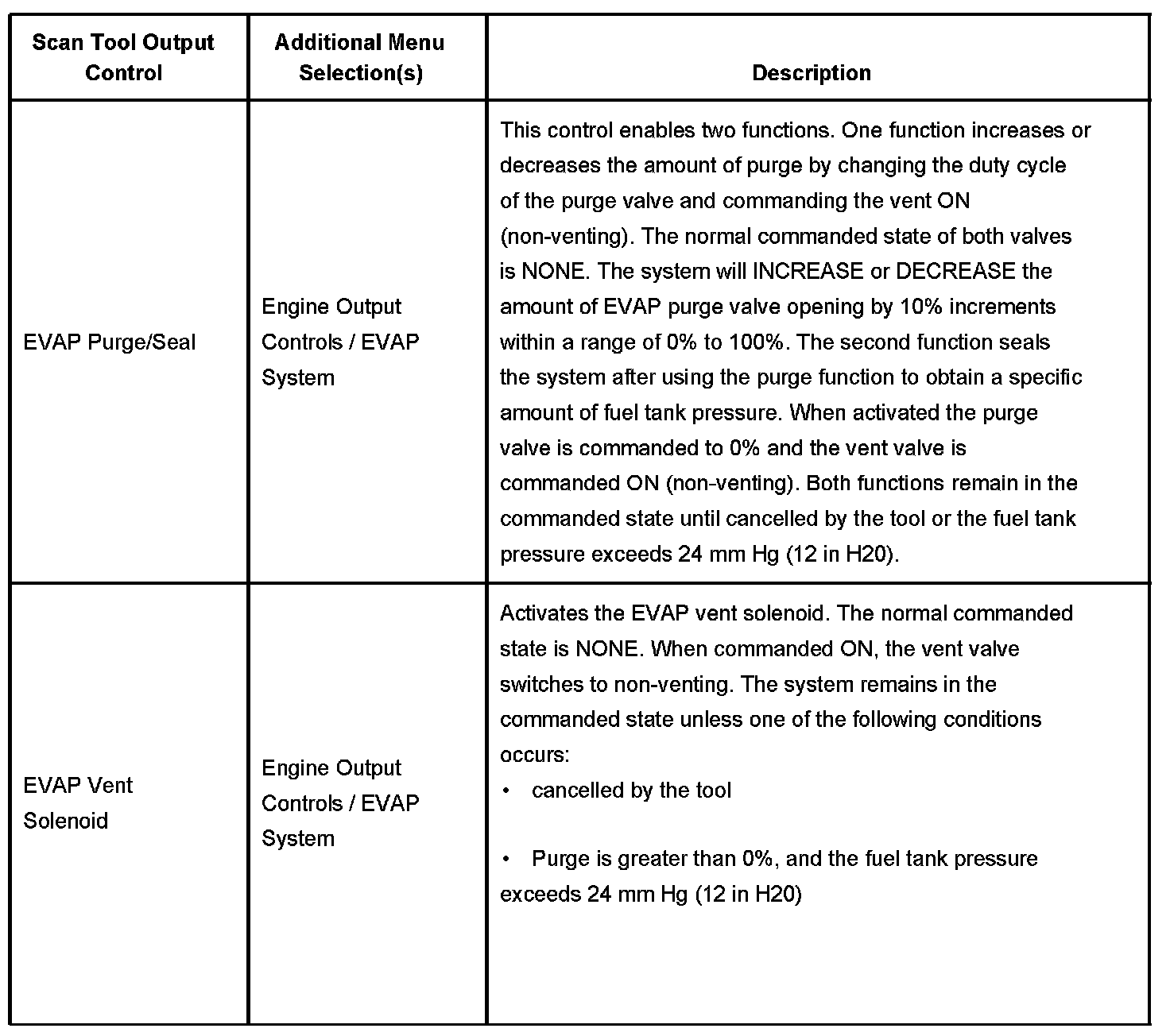

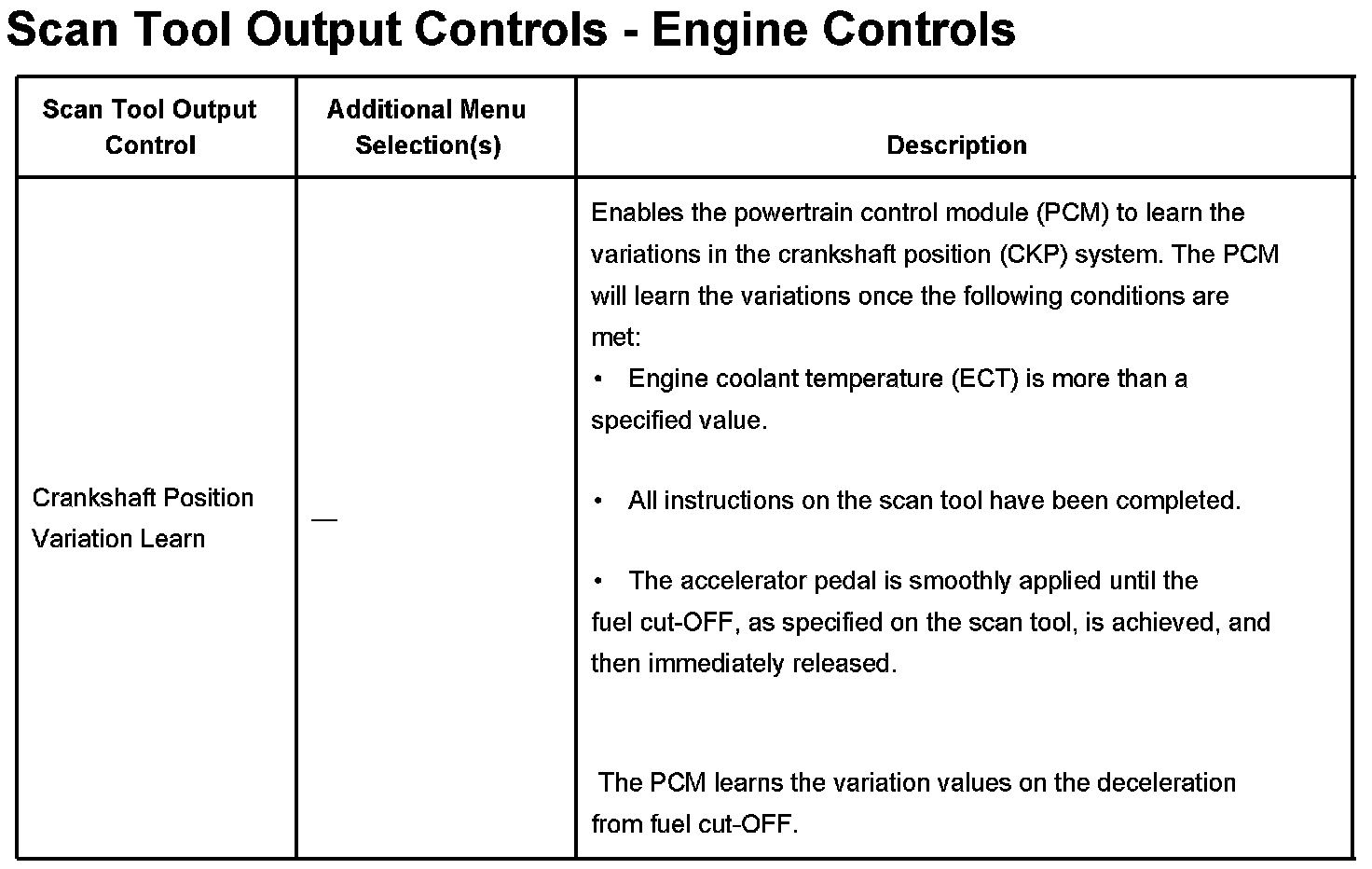

Scan Tool Output Controls Part 1:

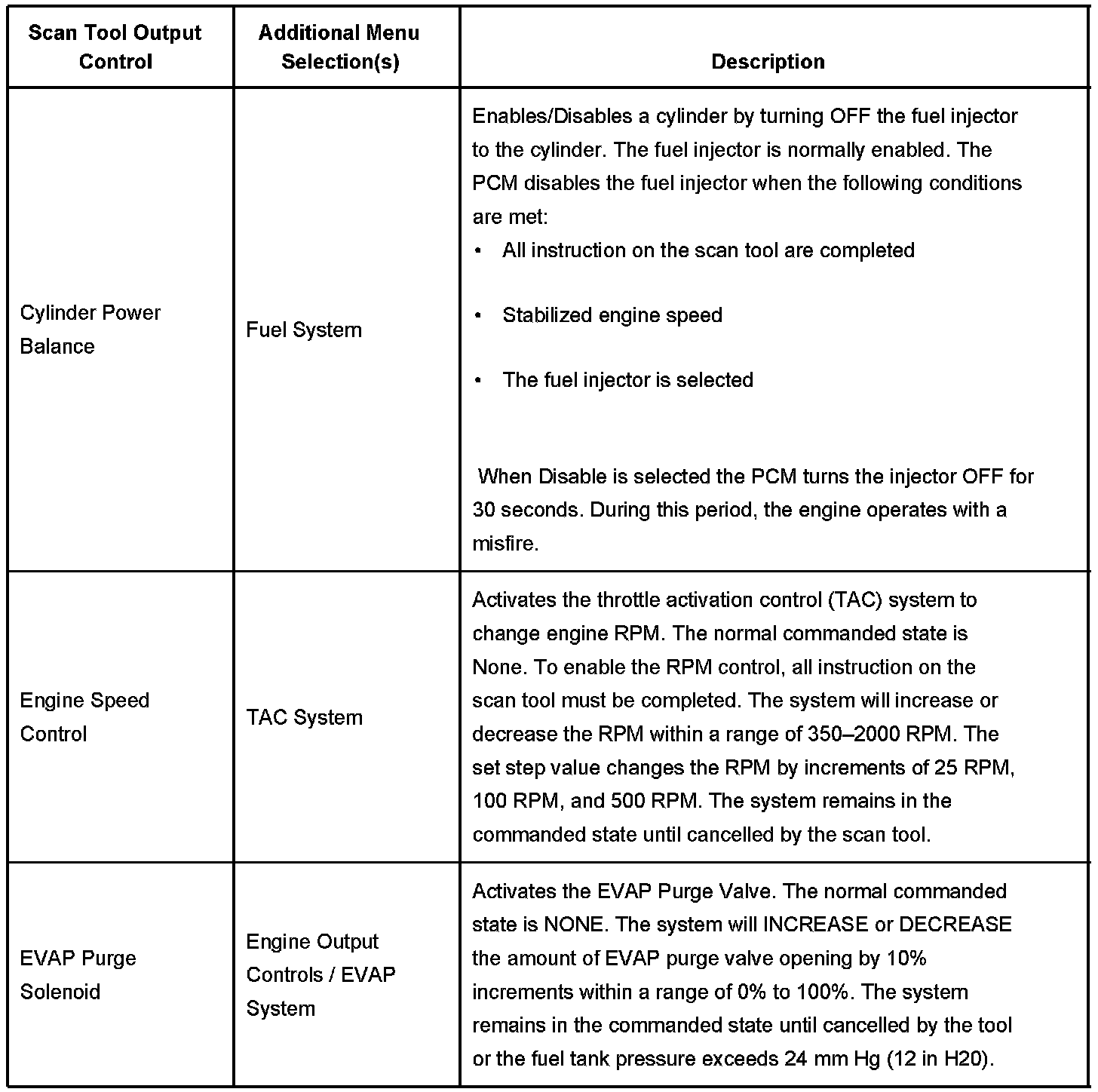

Scan Tool Output Controls Part 2:

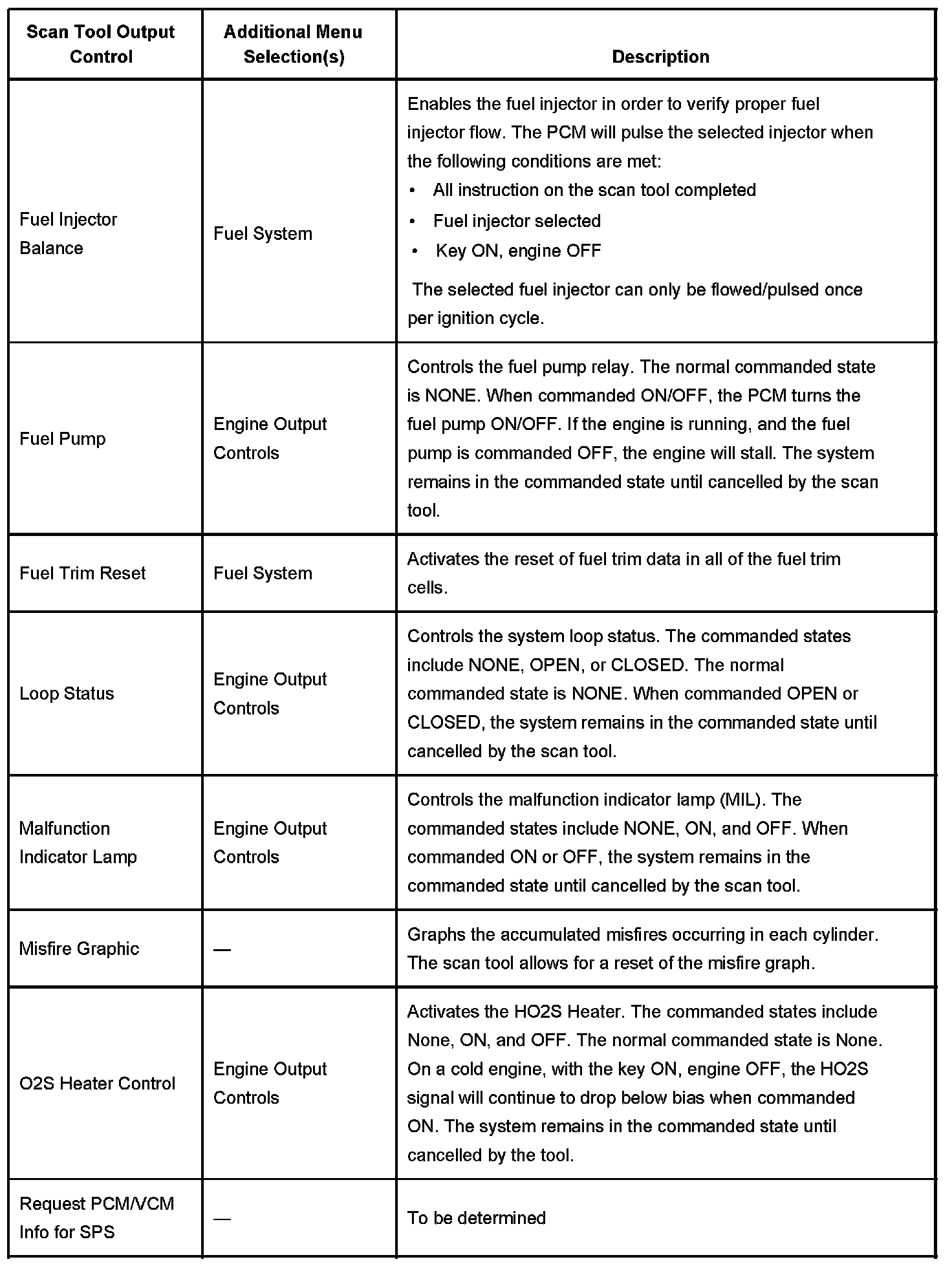

Scan Tool Output Controls Part 3:



Scan Tool Output Controls Part 4:
