Main Relay (Computer/Fuel System)
>>
Locations
Main Relay (Computer/Fuel System): Locations

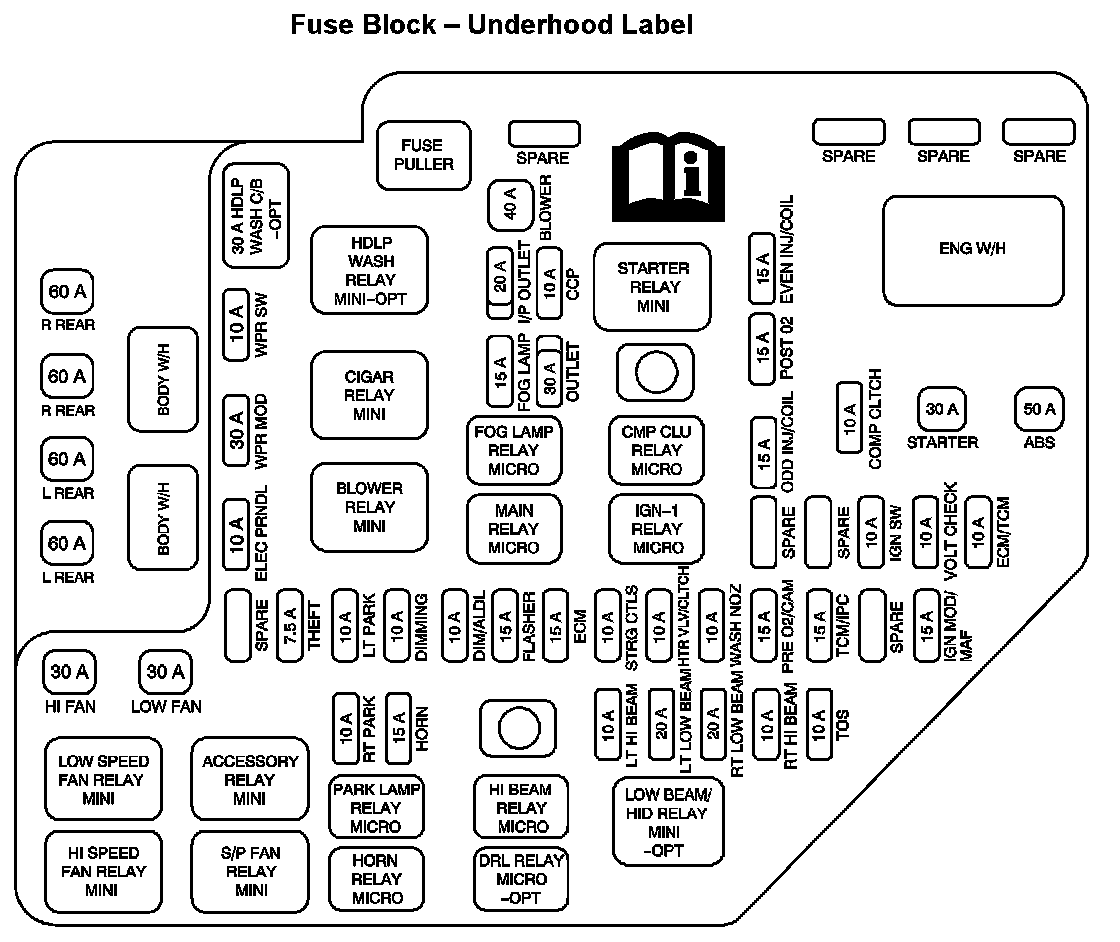

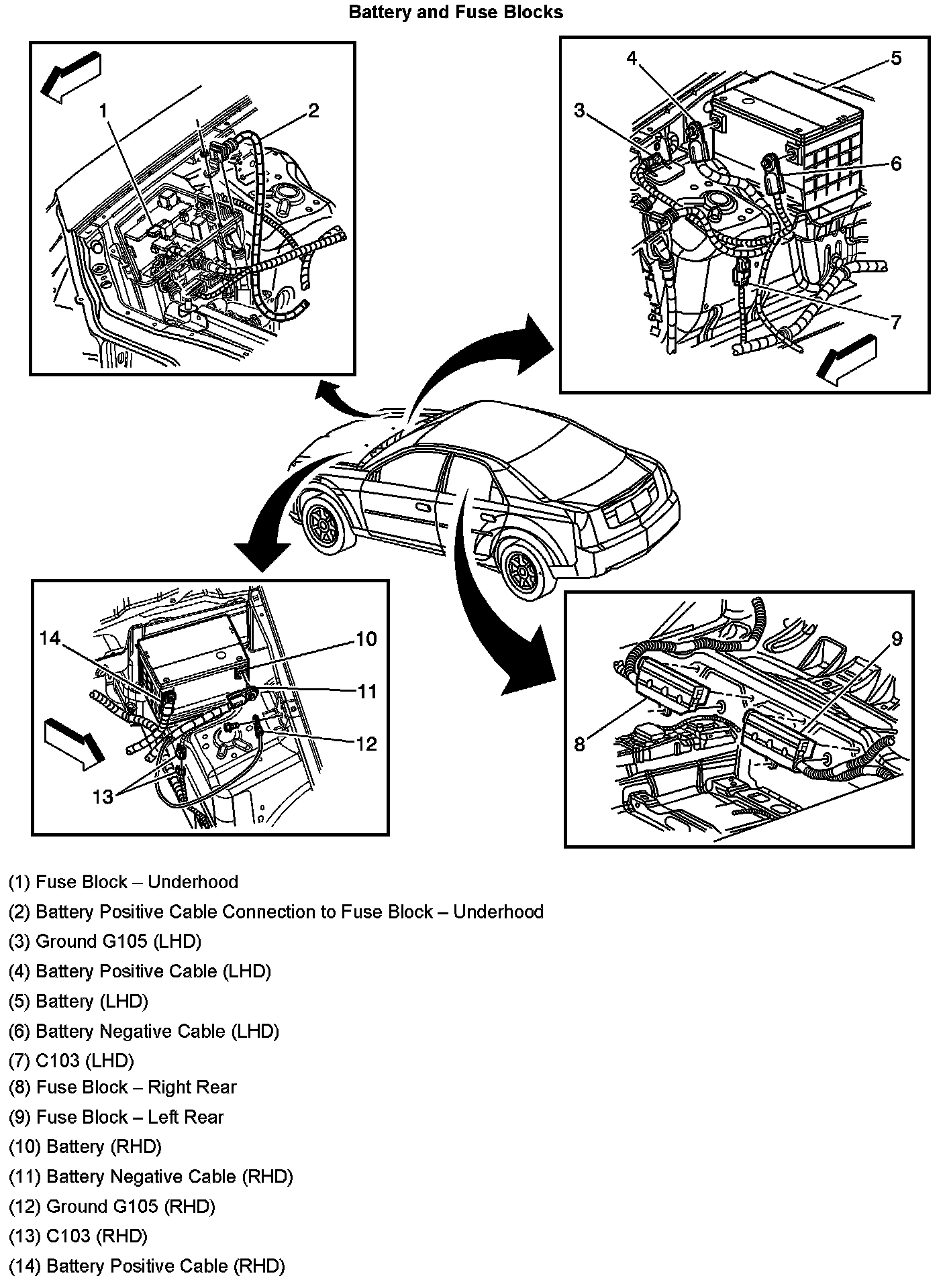

Battery And Fuse Blocks:
Location View:
