Home >> Cadillac >> 2004 >> CTS V8-5.7L VIN P >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Electronic Throttle Control Module >> Diagrams

Electronic Throttle Control Module: Diagrams

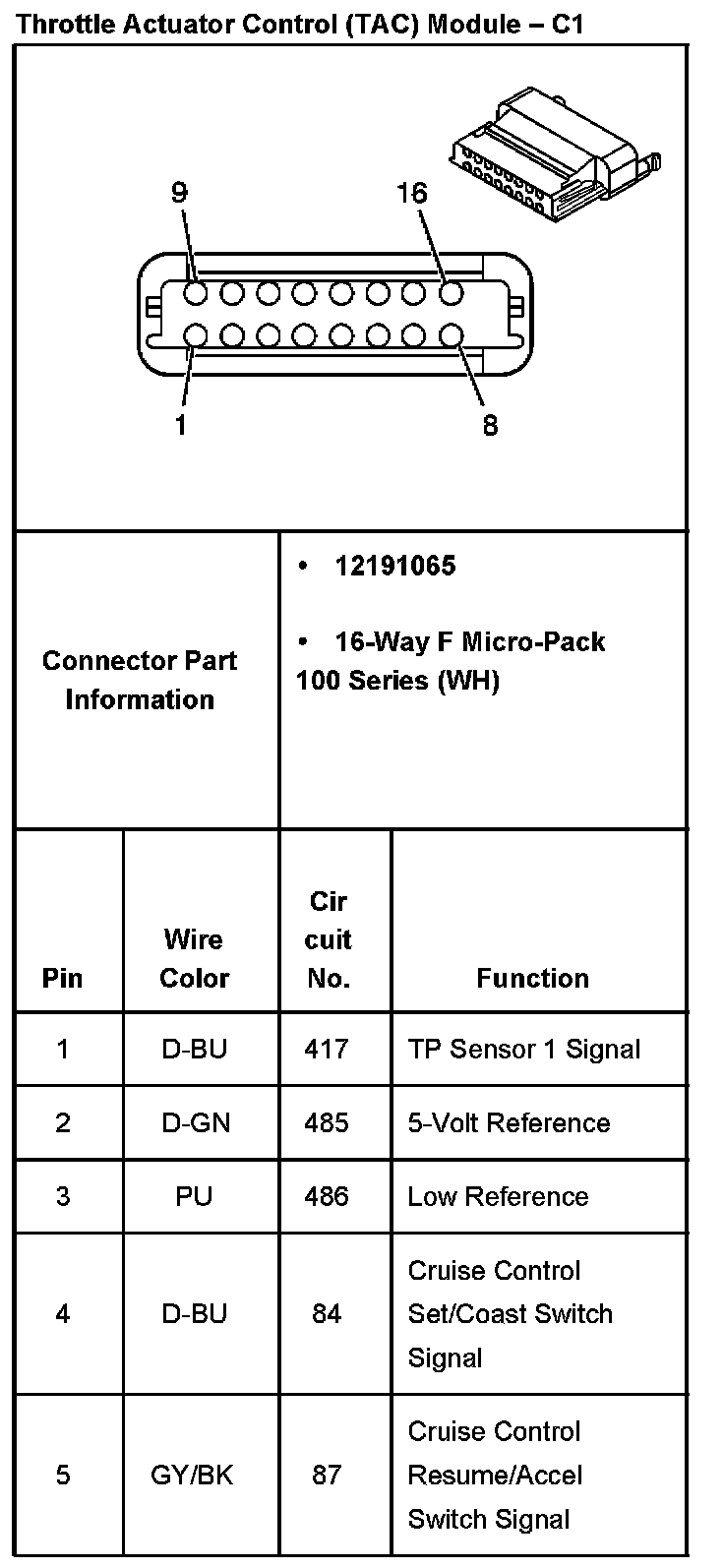

Throttle Actuator Control (TAC) Module - C1 Part 1:

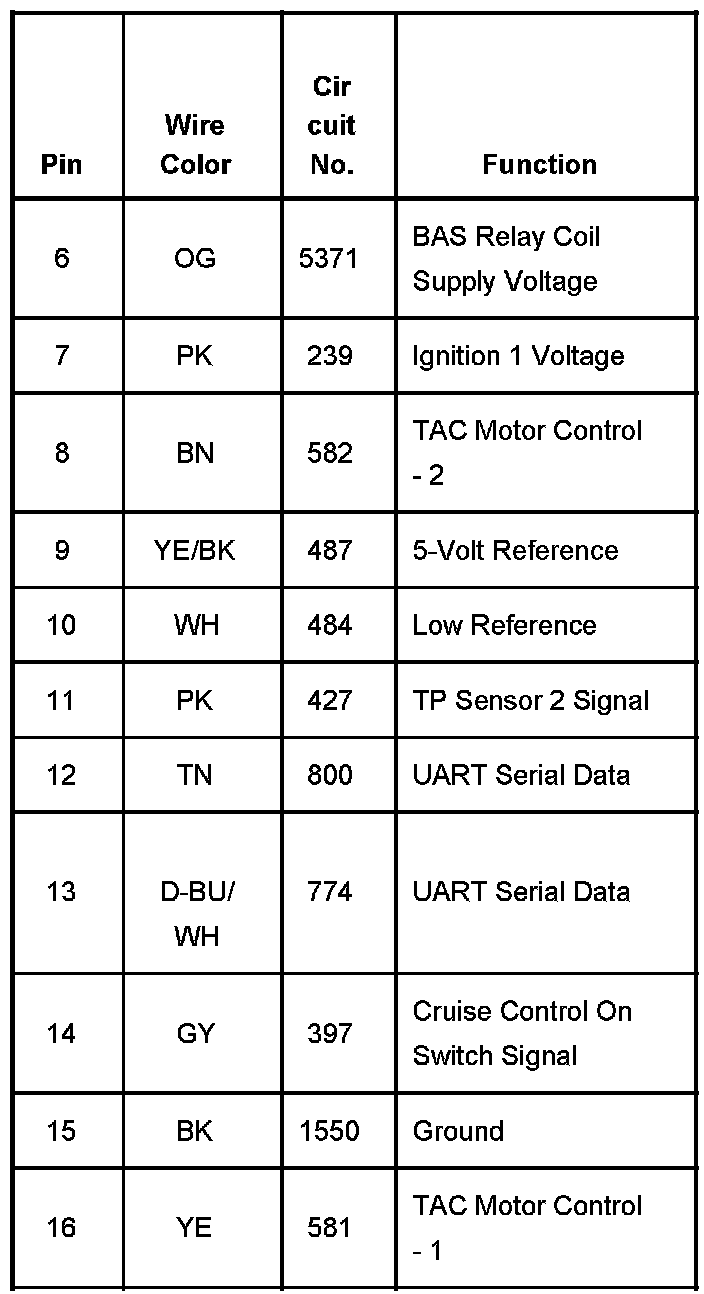

Throttle Actuator Control (TAC) Module - C1 Part 2:

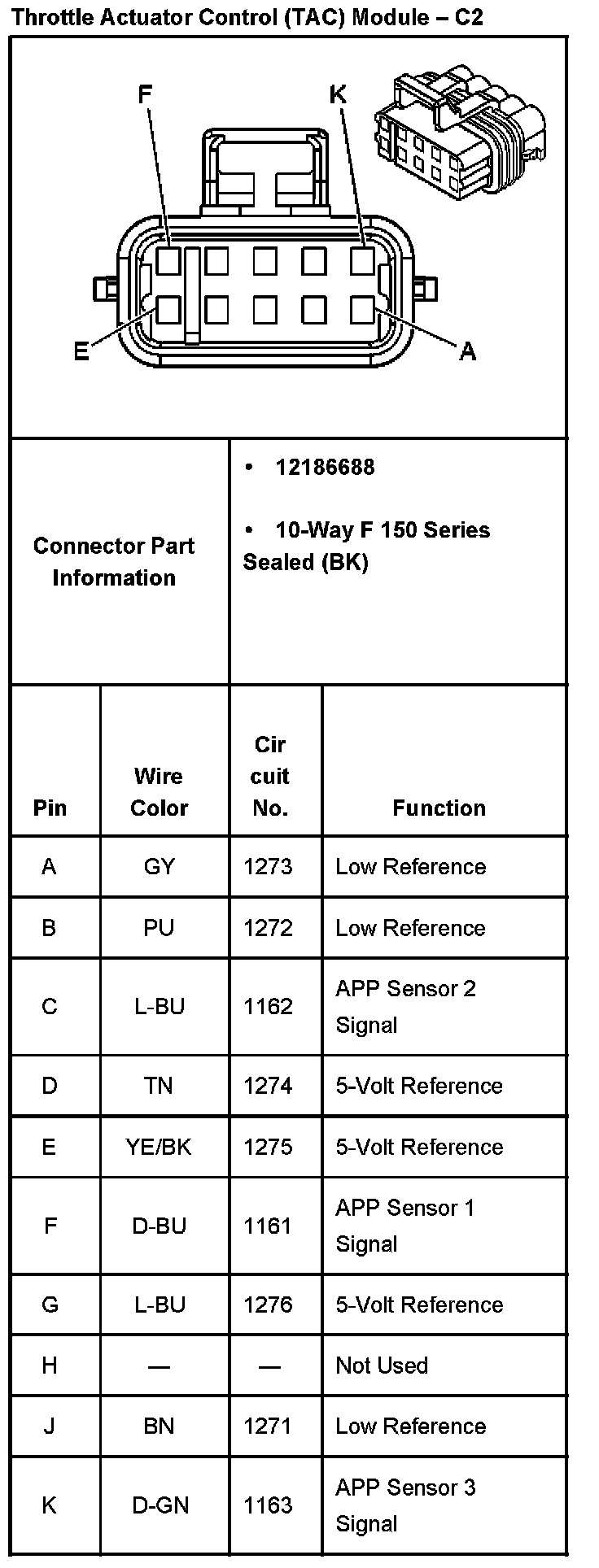

Throttle Actuator Control (TAC) Module - C2:
