Control Module HVAC

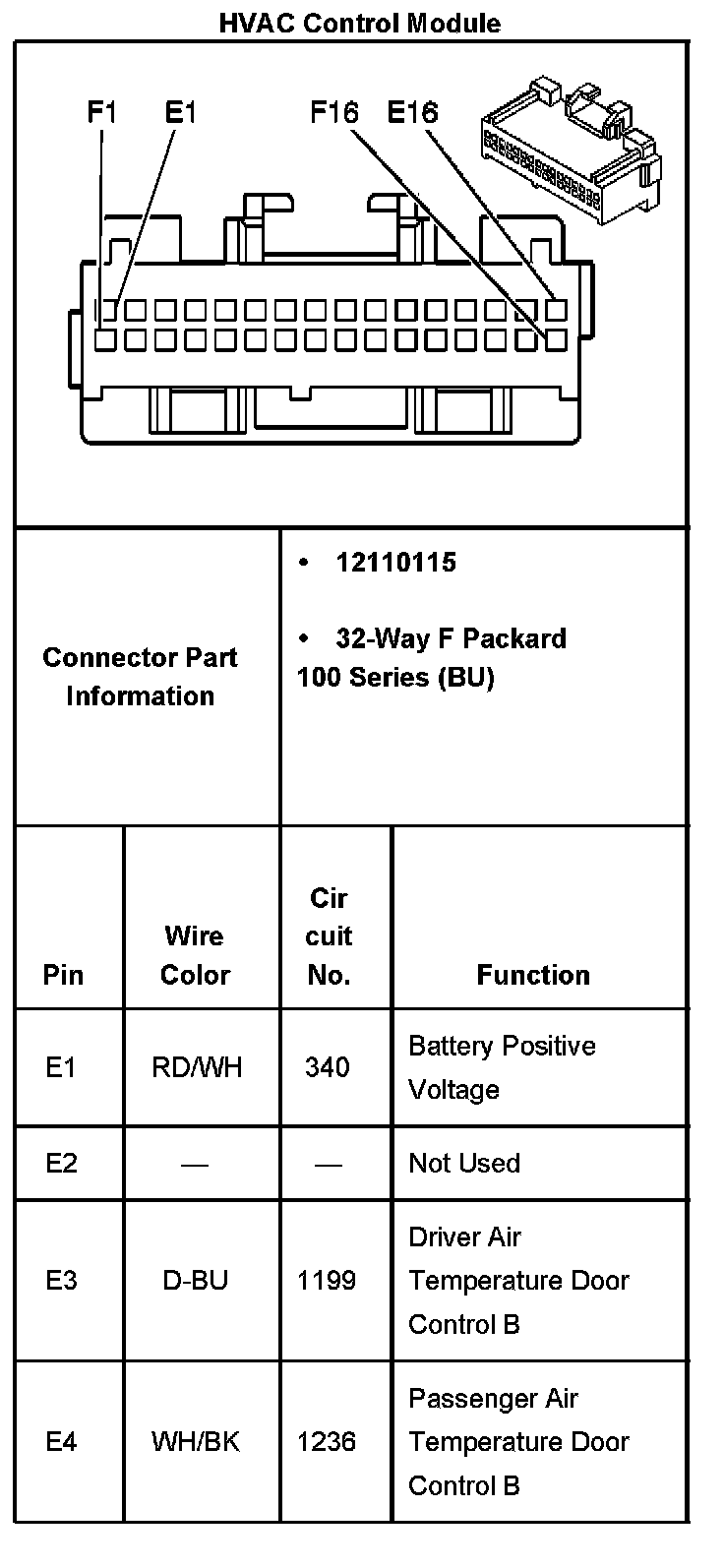

HVAC Control Module - Part 1:

HVAC Control Module - Part 2:

HVAC Control Module - Part 3:
