Home >> Cadillac >> 2004 >> CTS V6-3.2L VIN N >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Engine Control Module (ECM) C1

Engine Control Module (ECM) C1

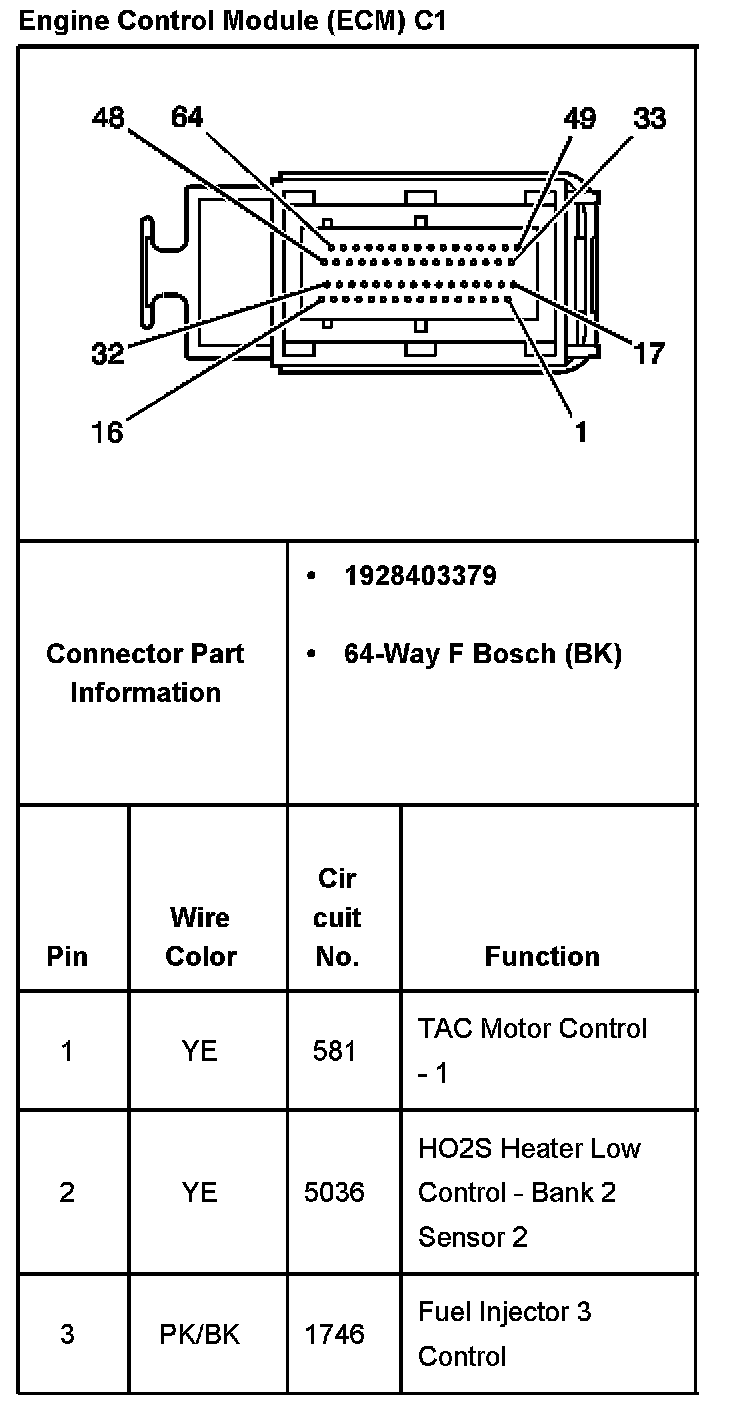

Engine Control Module (ECM) C1 Part 1:

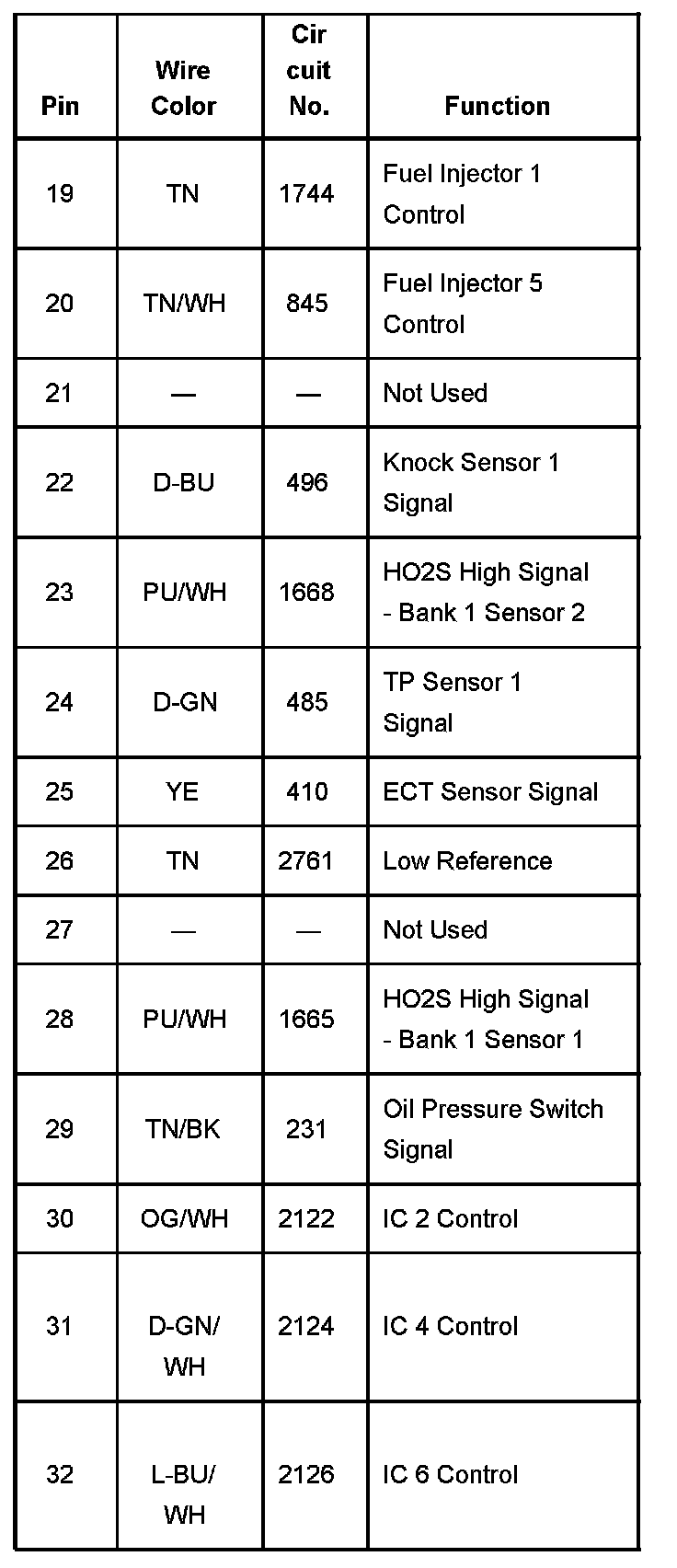

Engine Control Module (ECM) C1 Part 2:

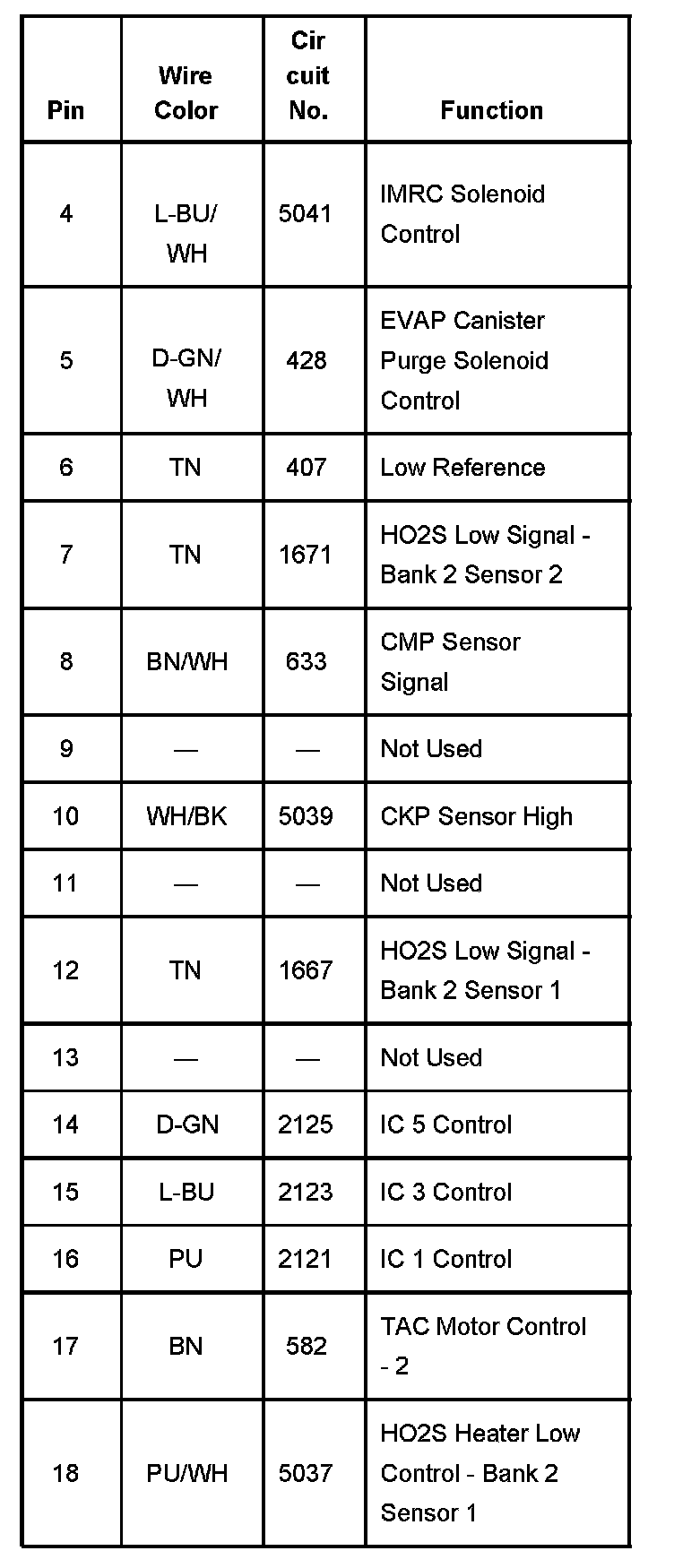

Engine Control Module (ECM) C1 Part 3:

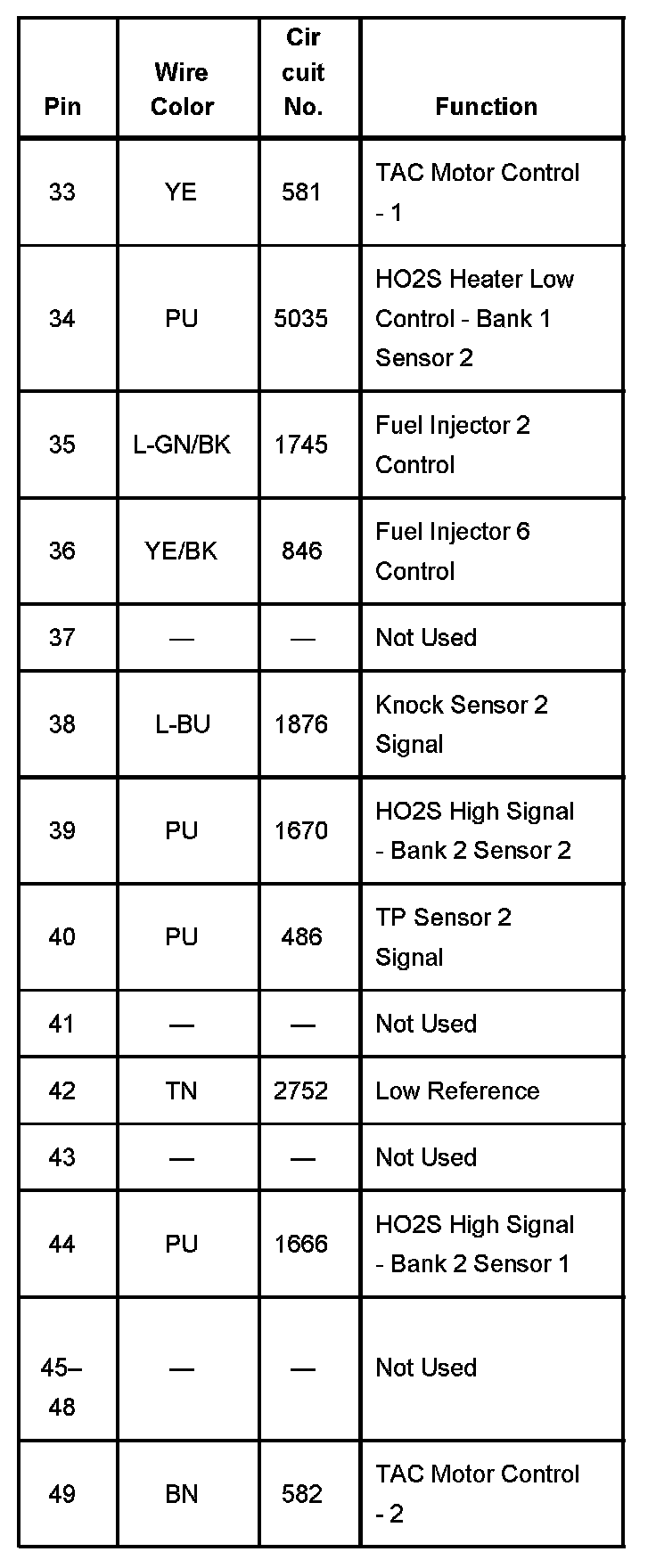

Engine Control Module (ECM) C1 Part 4:

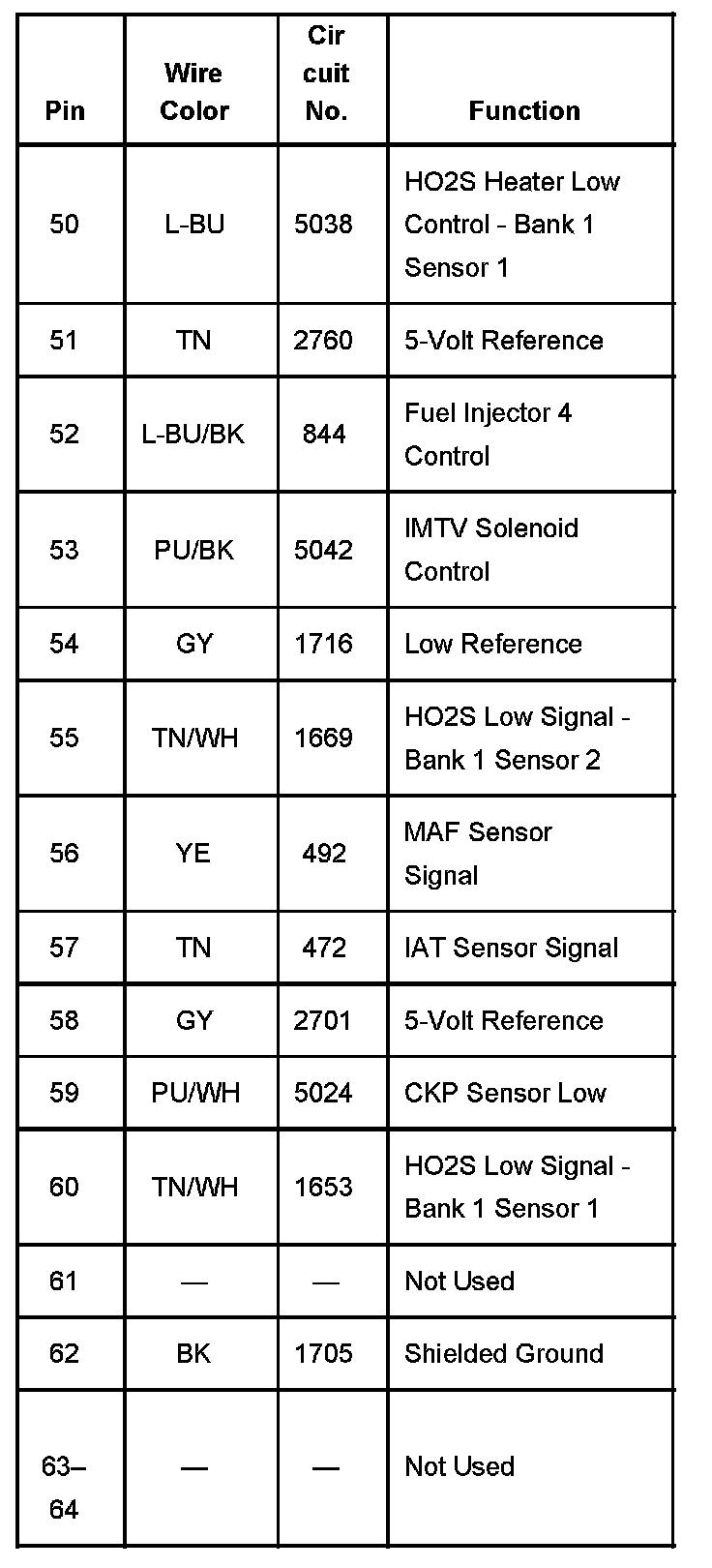

Engine Control Module (ECM) C1 Part 5:
