Cadillac
>>
2003
>>
CTS V6-3.2L VIN N
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Main Relay (Computer/Fuel System)
>>
Locations
Main Relay (Computer/Fuel System): Locations

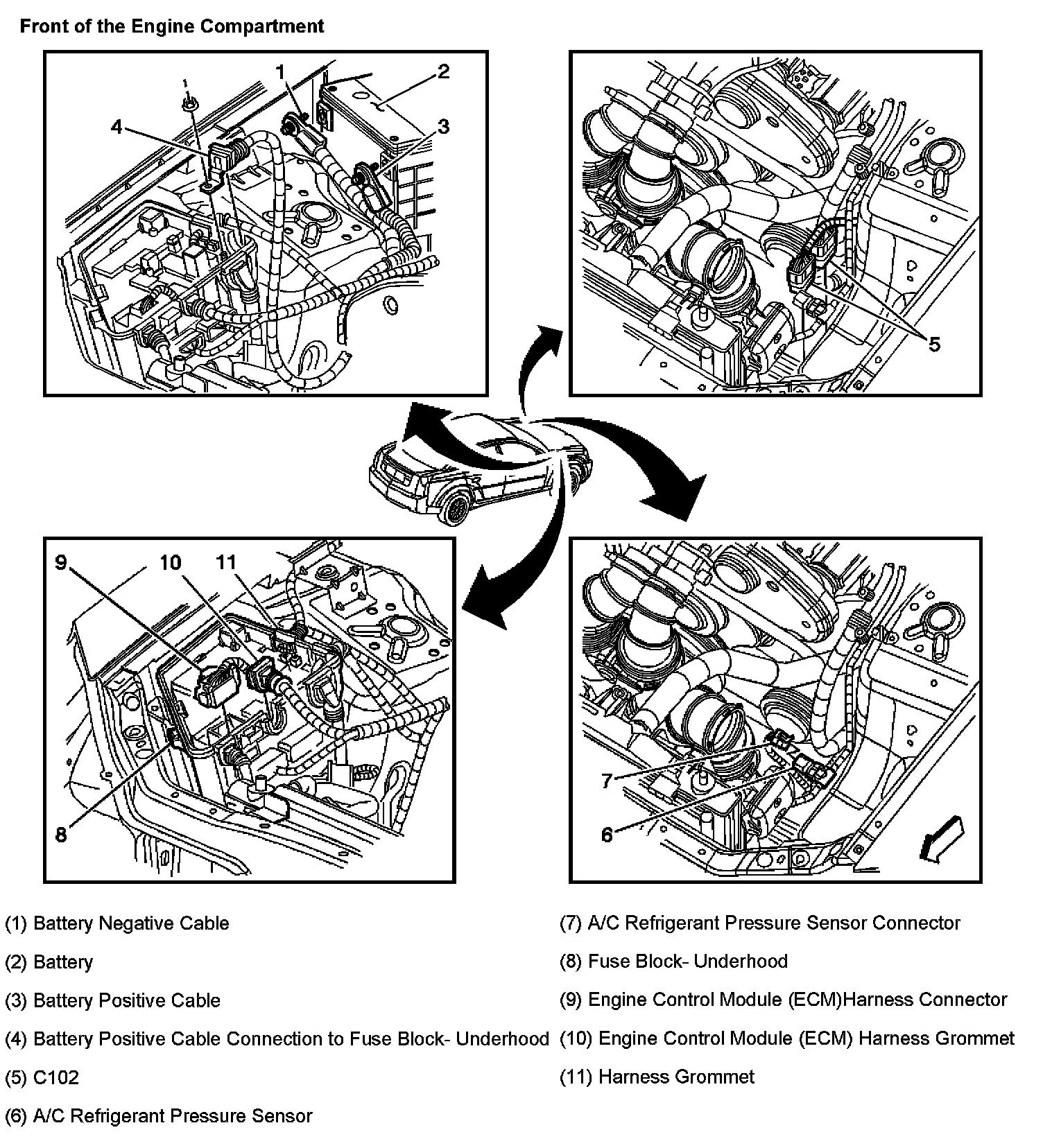

Front Of The Engine Compartment:

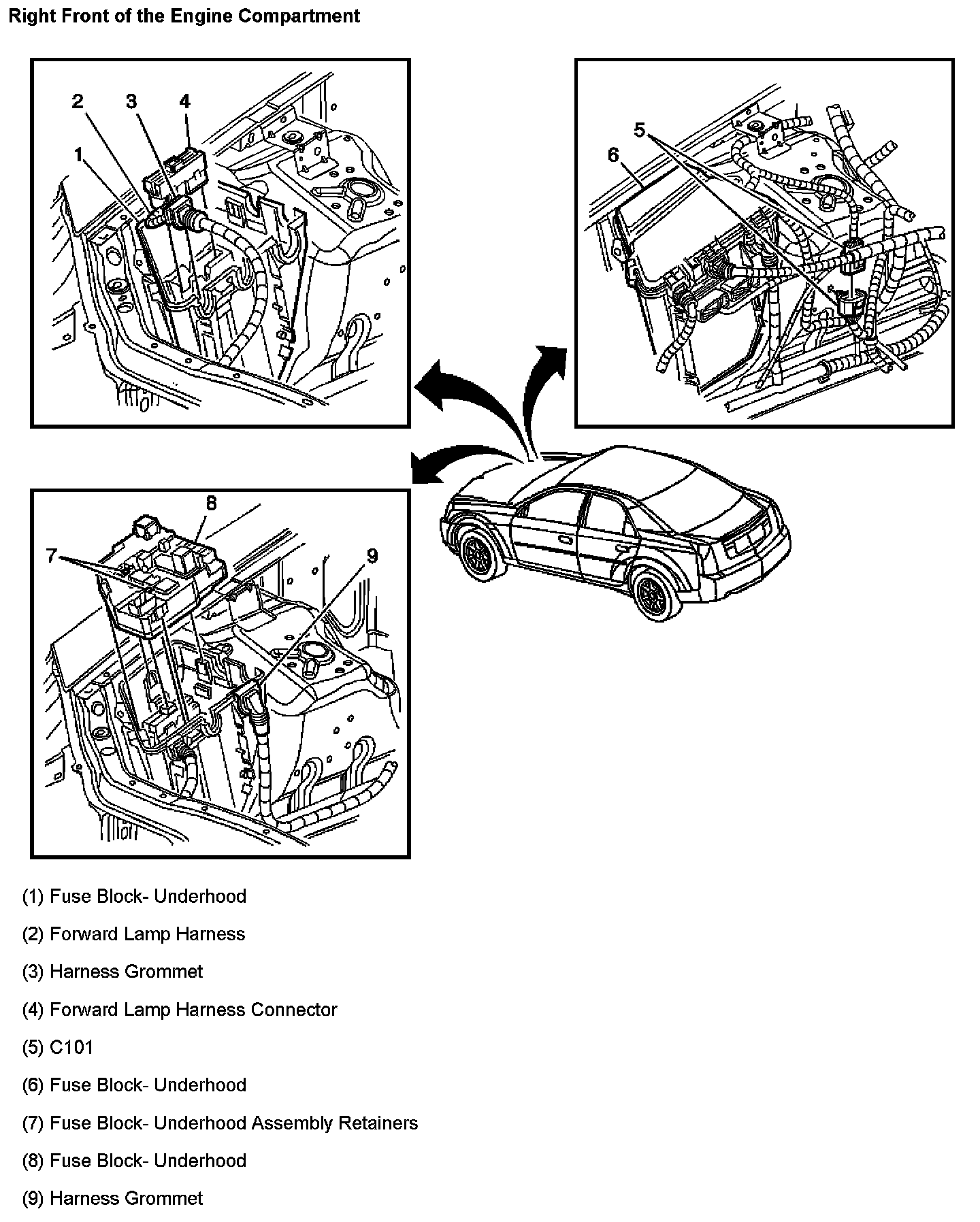

Right Front Of The Engine Compartment:
Location View:
