Dash Integration Module (DIM) C3

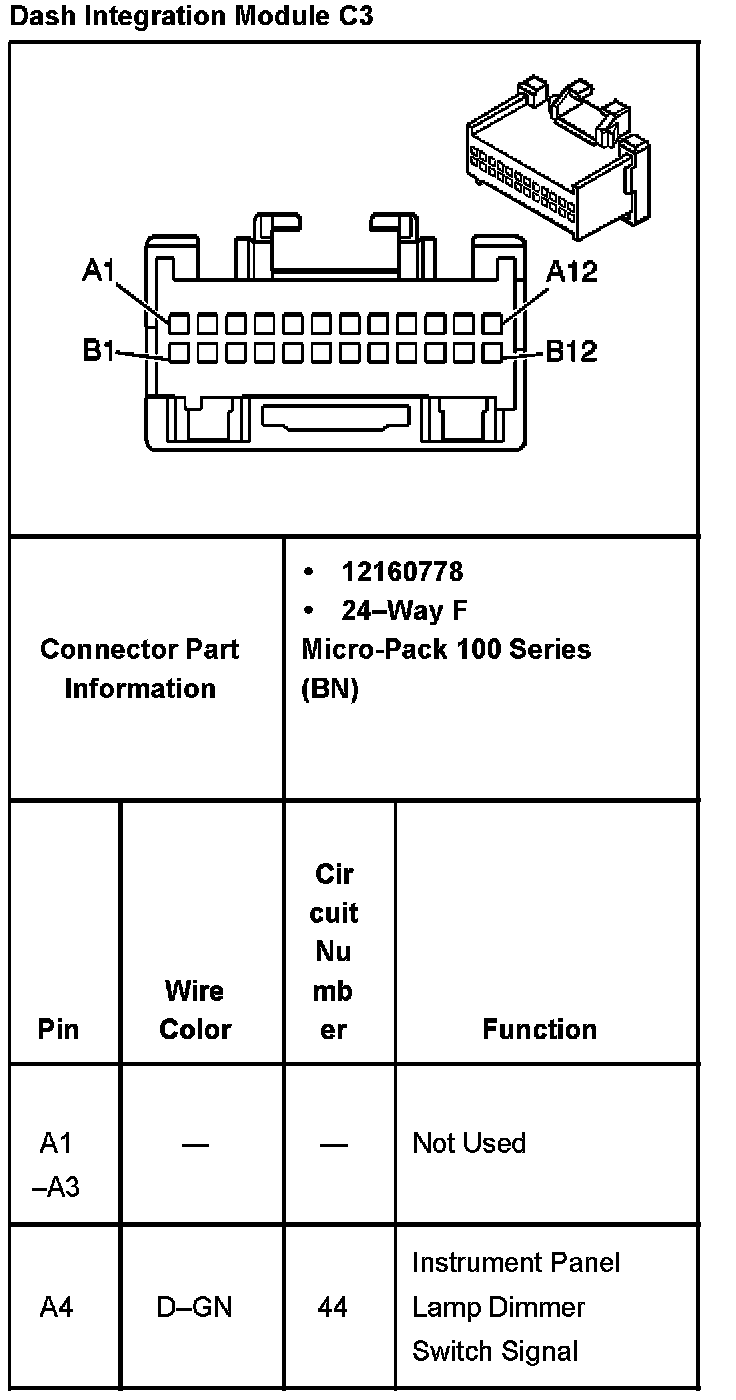

Dash Integration Module C3 Part 1:

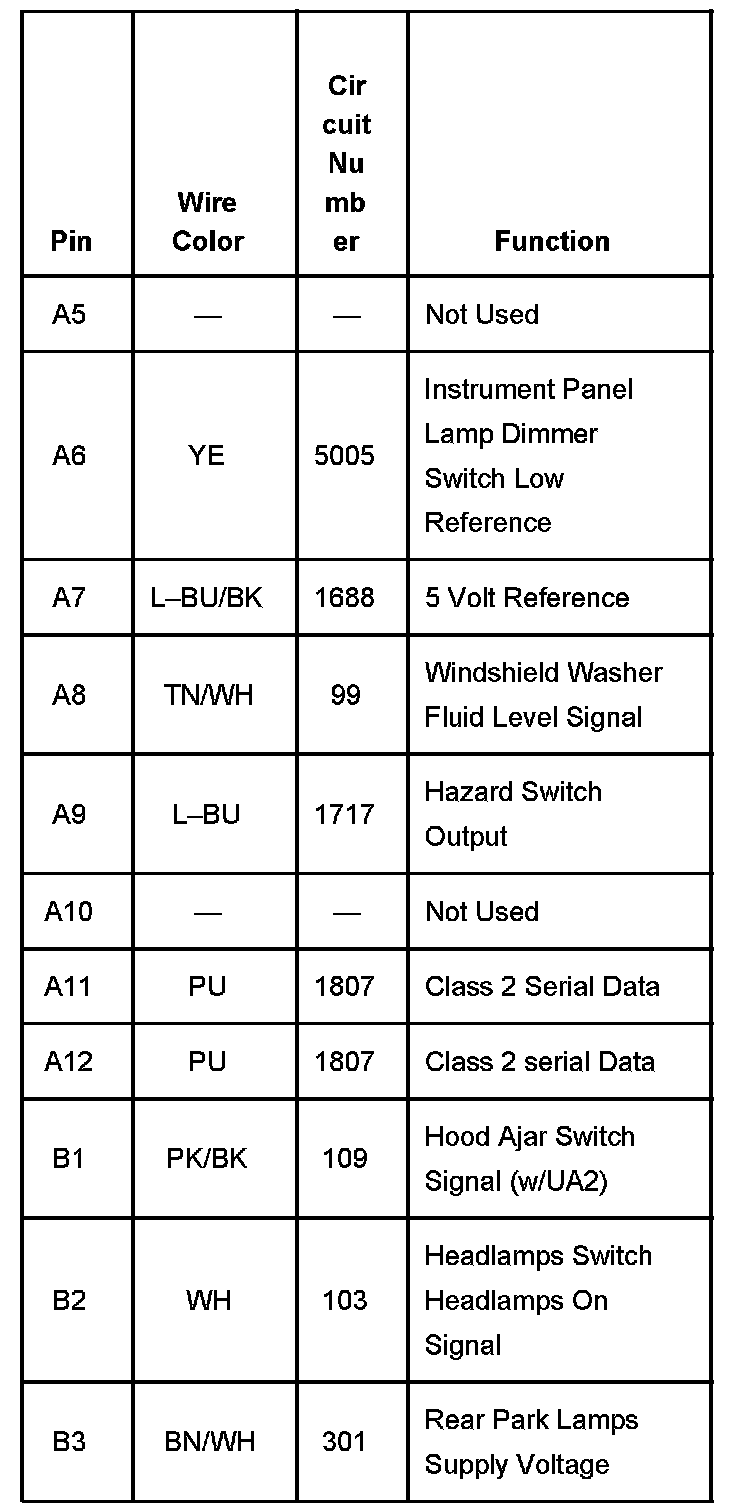

Dash Integration Module C3 Part 2:

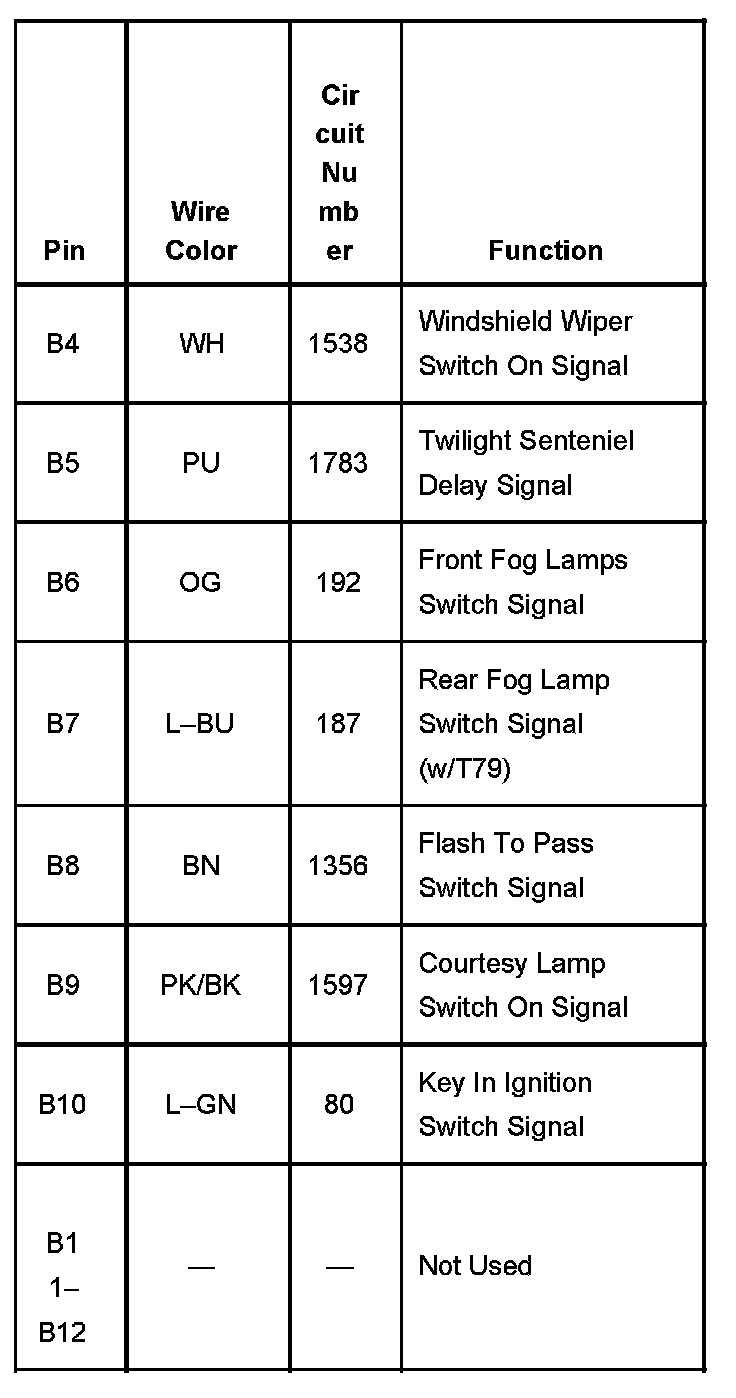

Dash Integration Module C3 Part 3:
