Home >> Cadillac >> 2003 >> CTS V6-3.2L VIN N >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module >> Dash Integration Module (DIM) C1

Dash Integration Module (DIM) C1

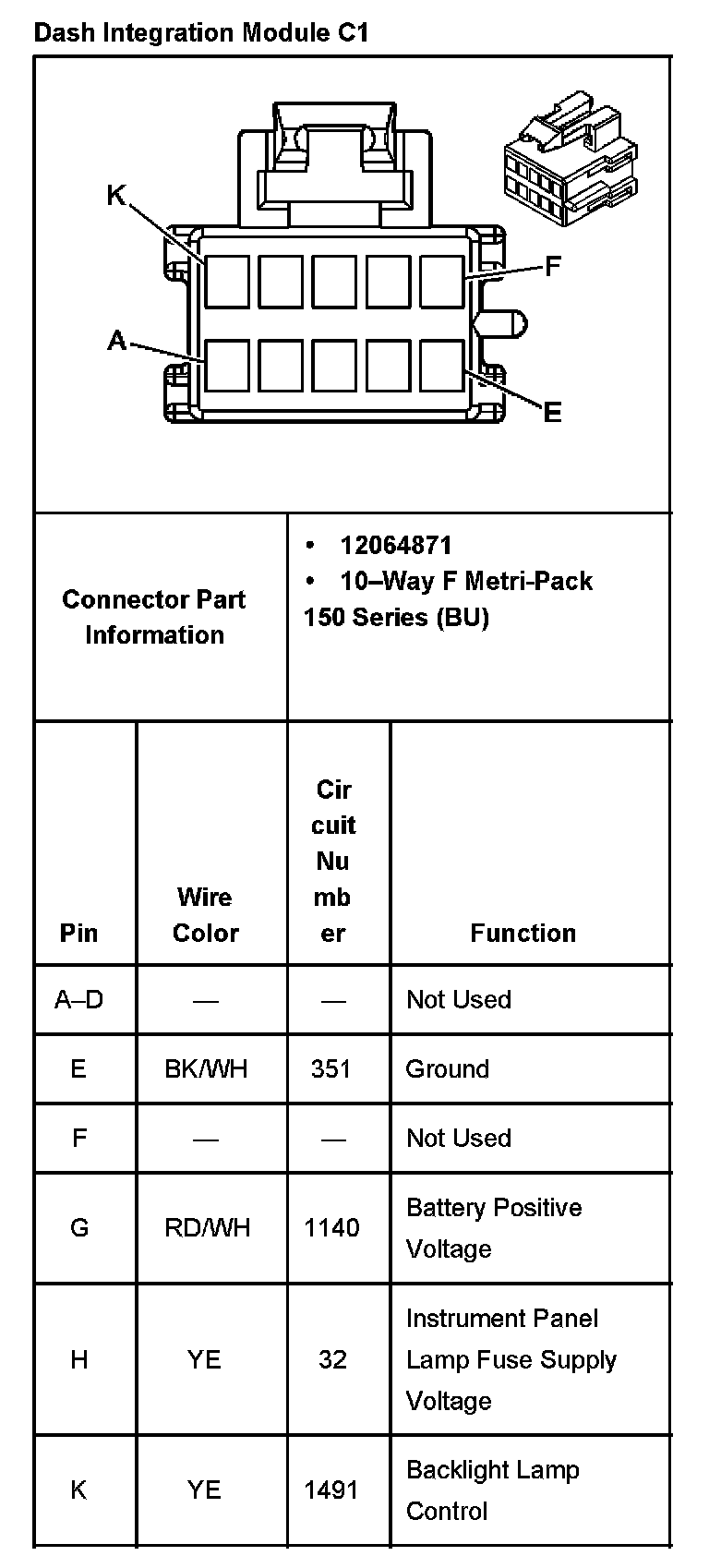

Dash Integration Module C1:
