Home >> Cadillac >> 1990 >> Seville V8-273 4.5L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

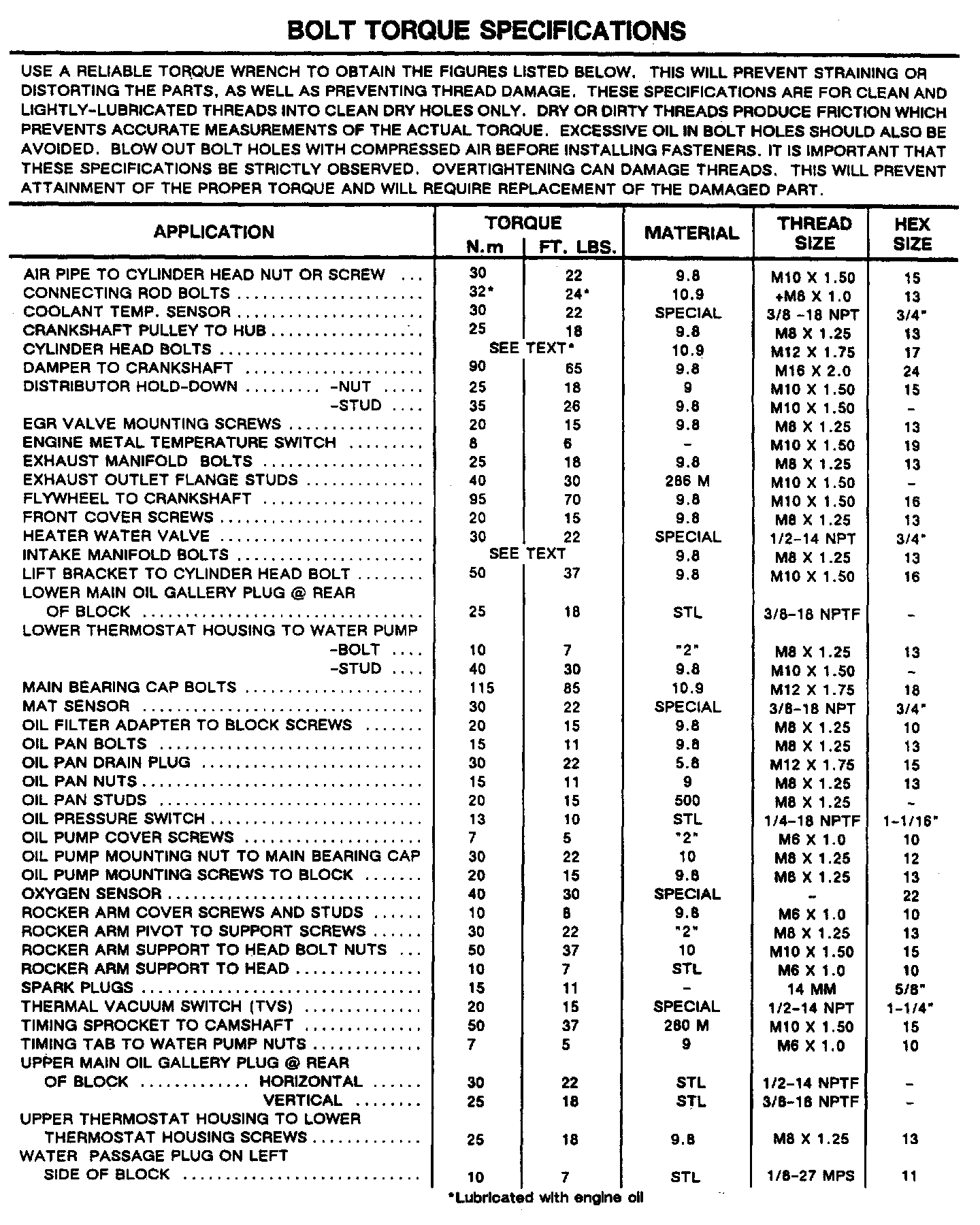

Torque Specifications:

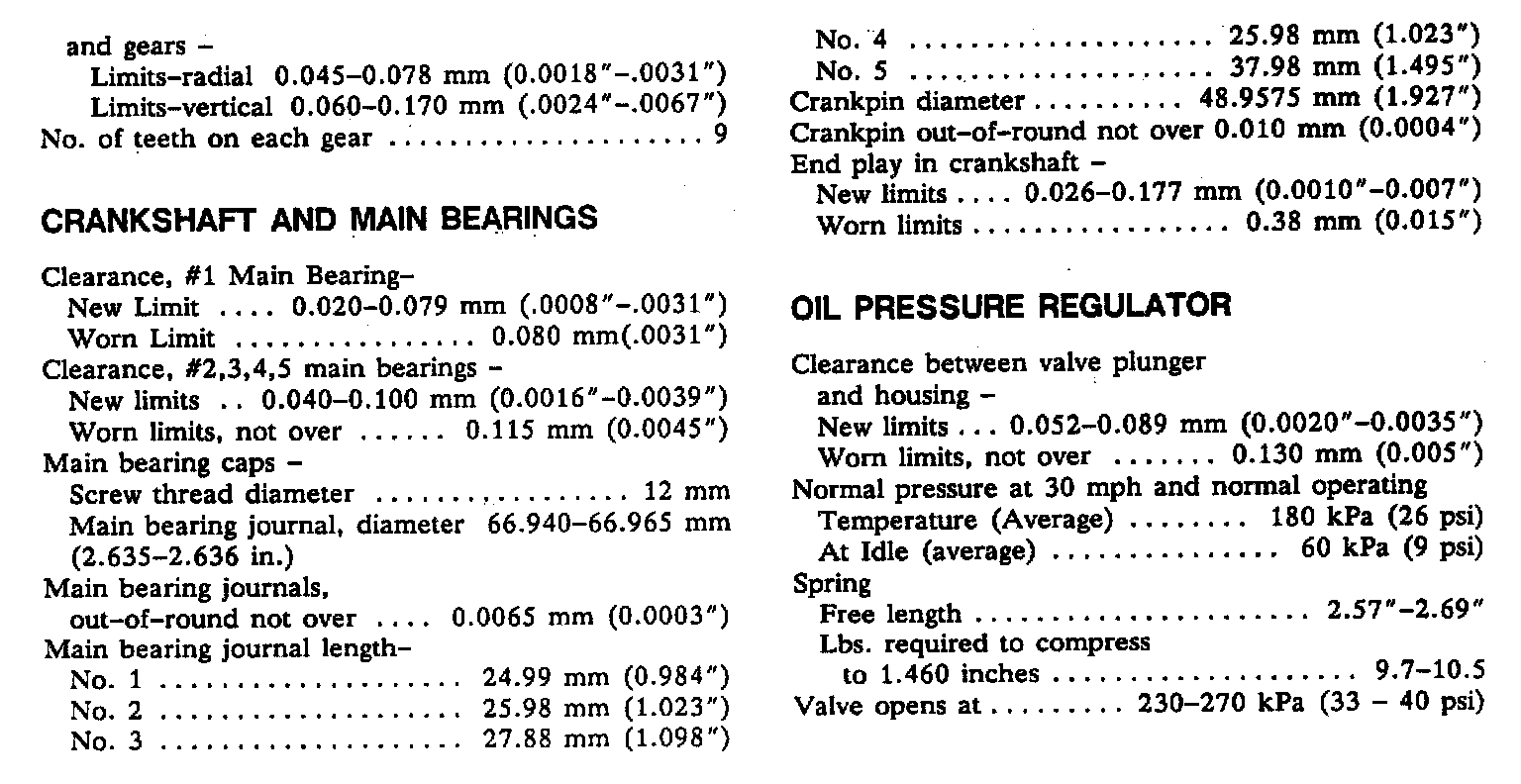

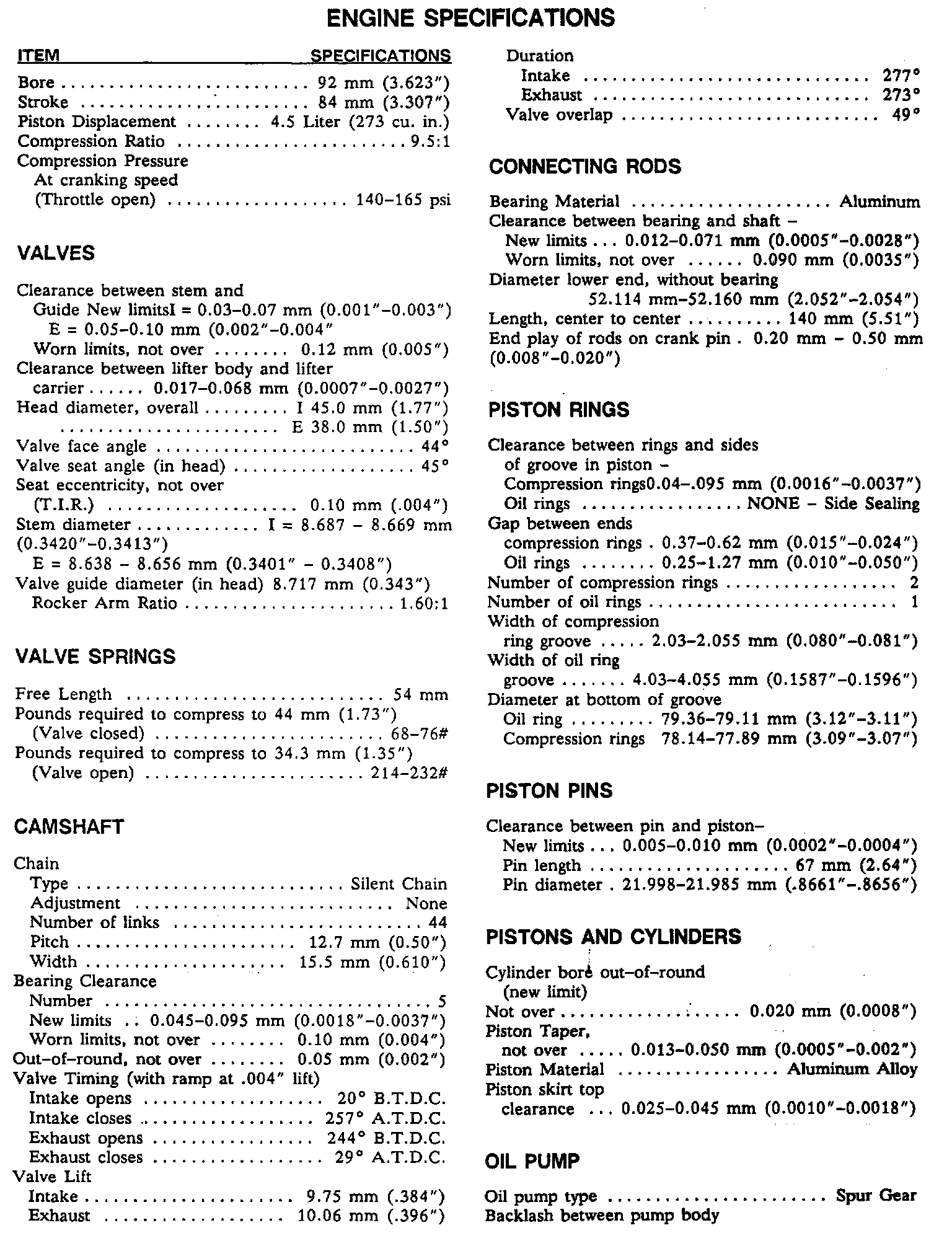

Engine Specifications:





Engine Specifications:

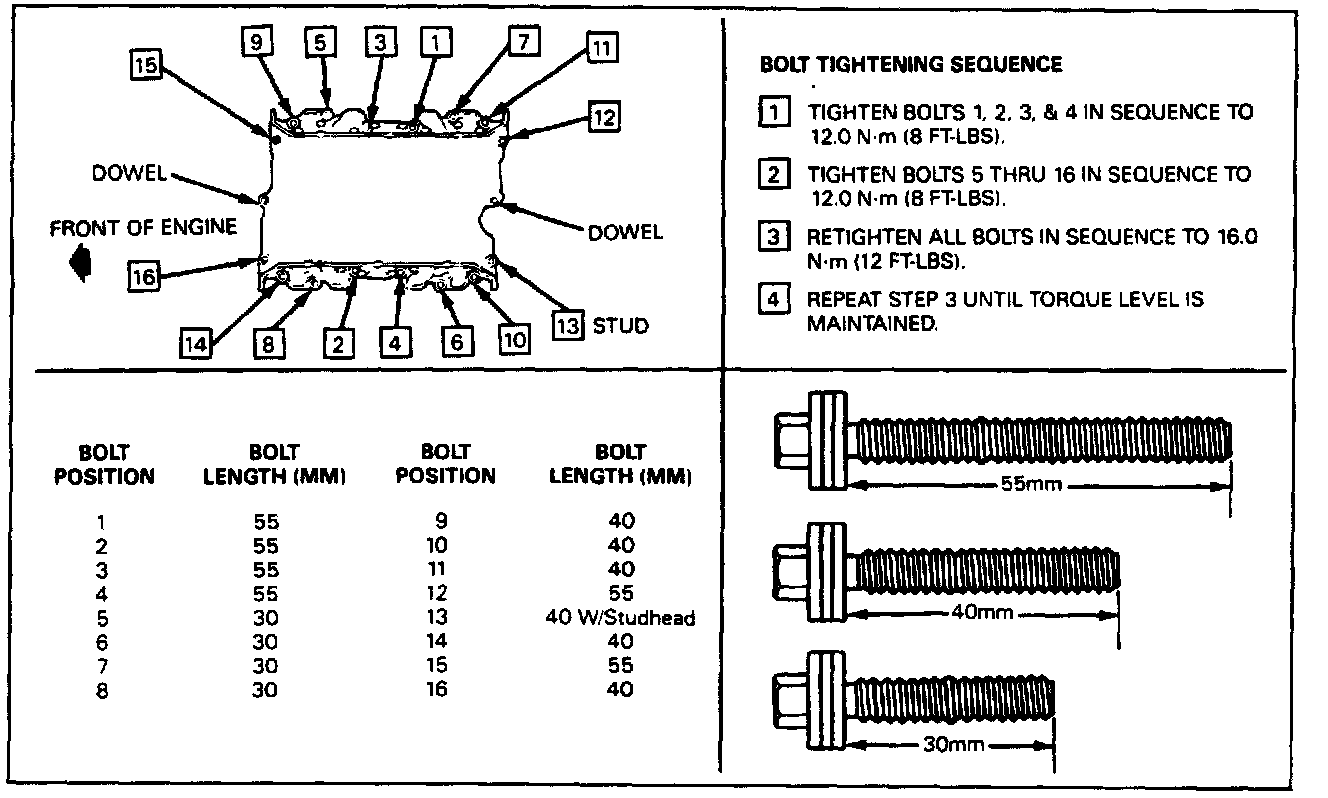

Intake Manifold Torque Sequence:





Cylinder Head Torque Sequence:
