Oil Pressure Sensor: Service and Repair

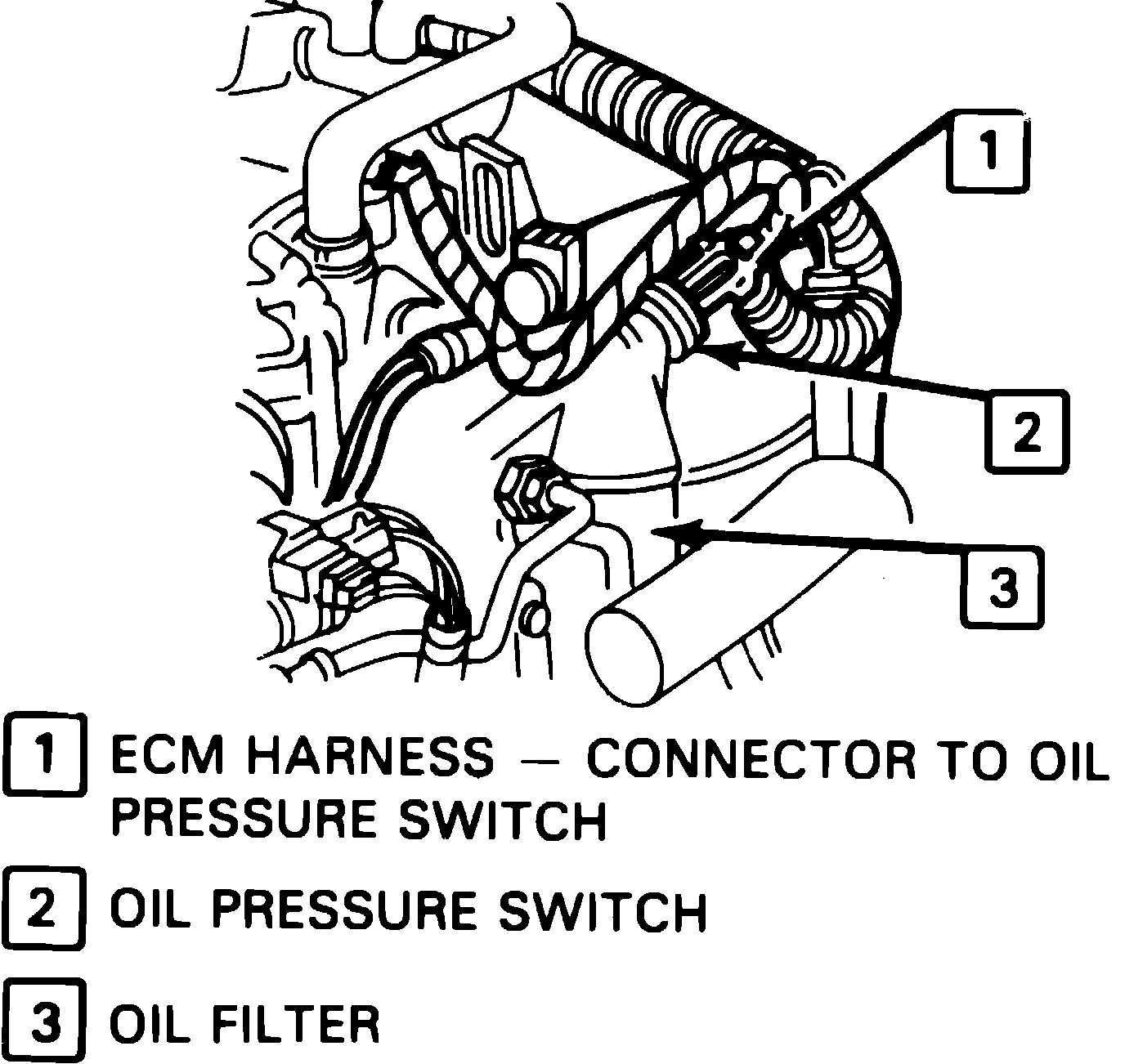

Fig. 81 Oil pressure switch replacement:

1. Remove locking collar from oil pressure switch.
2. Disconnect electrical connector from oil pressure switch, then remove the switch, Fig. 81.
3. Reverse procedure to install.
