Home >> Cadillac >> 1987 >> DeVille V8-252 4.1L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> J2 Terminal I.D.

J2 Terminal I.D.

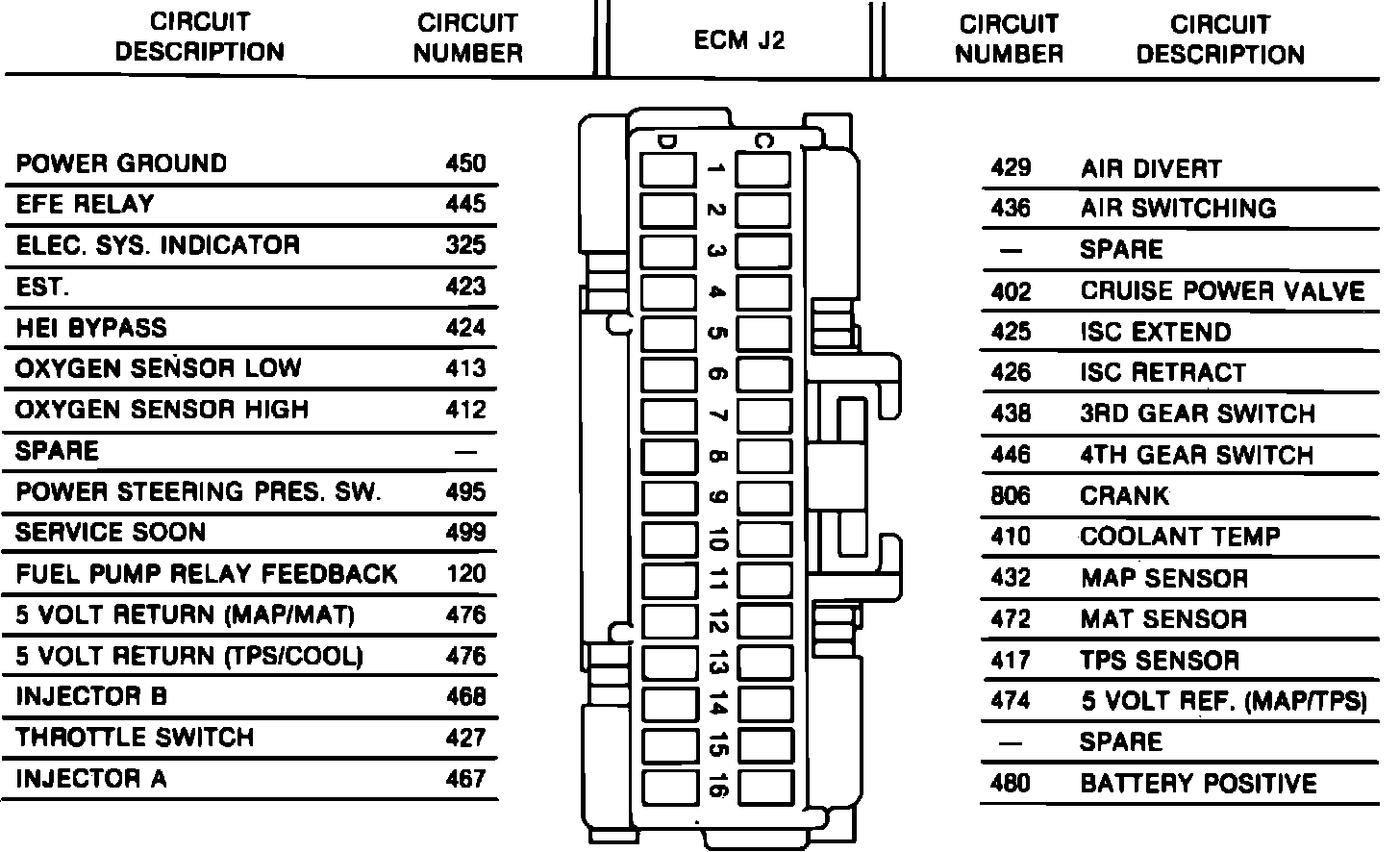

Fig. 9 ECM (J2) connector pin:
