Home >> Cadillac >> 1987 >> Cimarron V6-173 2.8L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

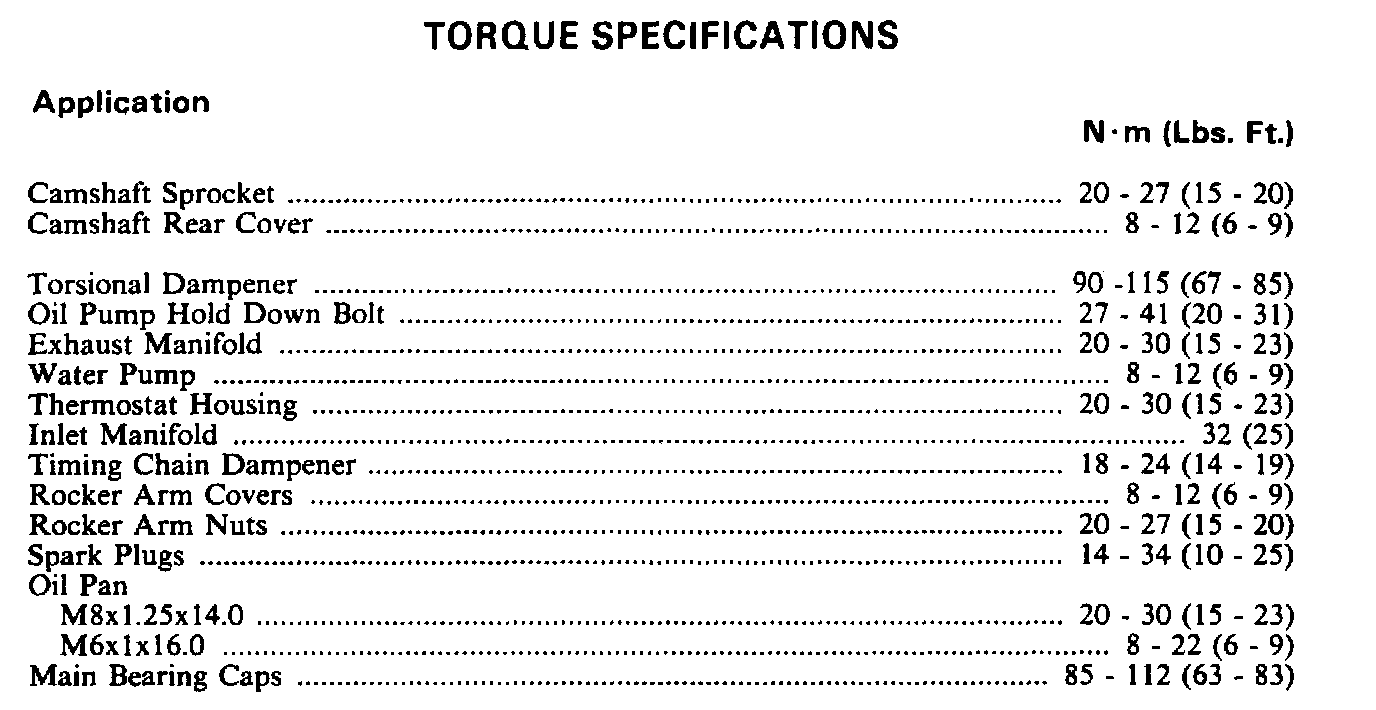

Torque Specifications:

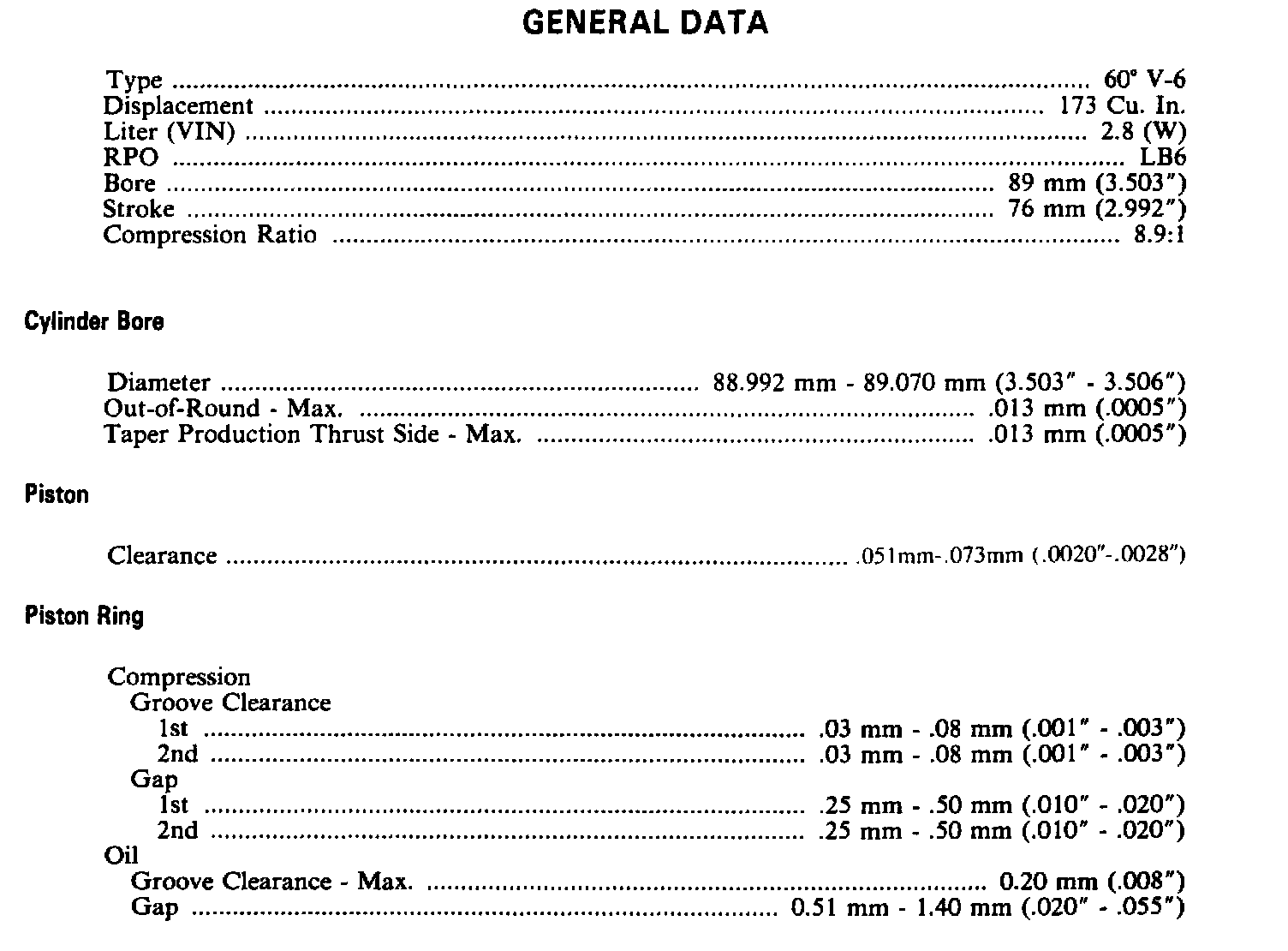

Engine Specifications:

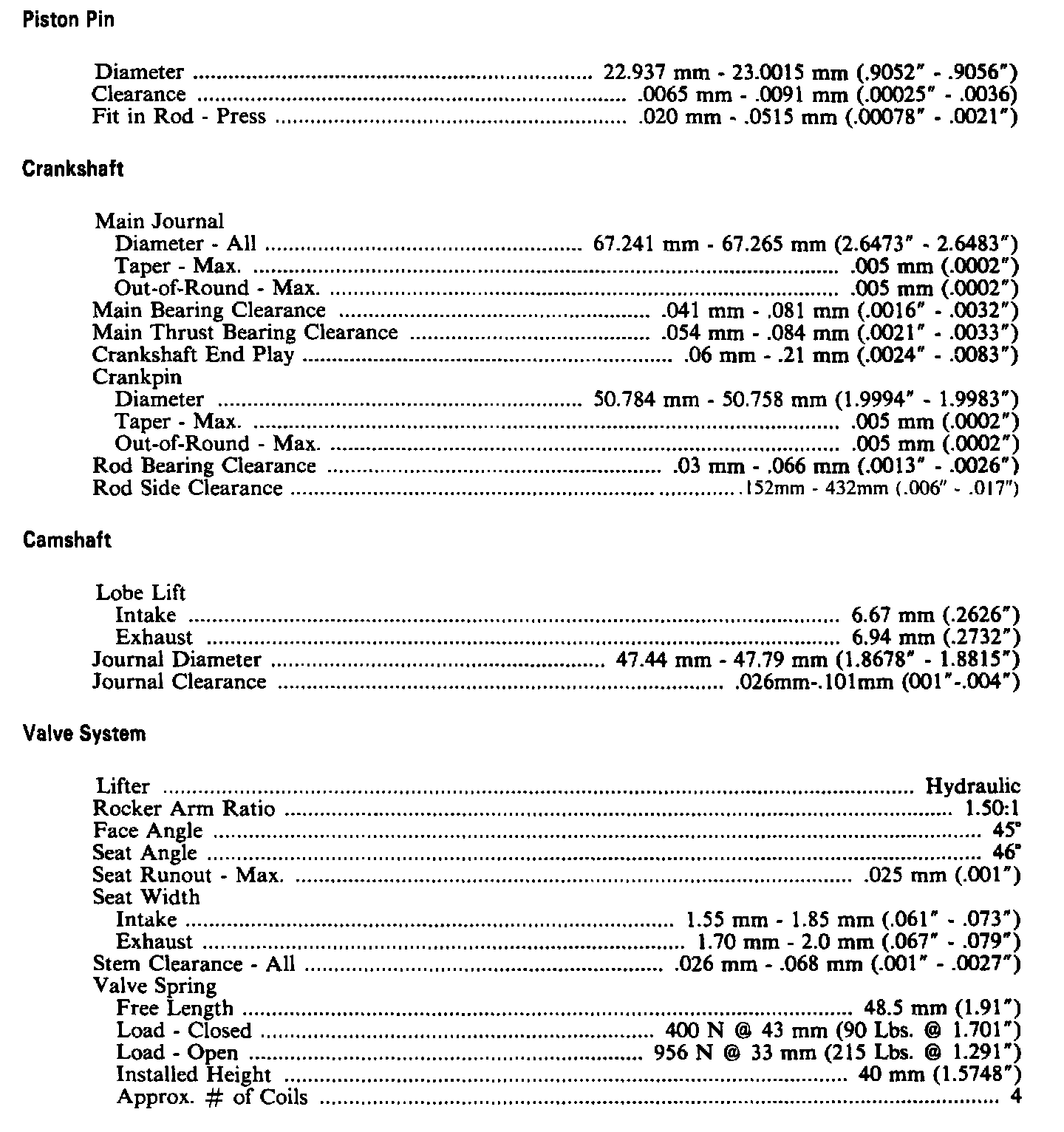

Continued Engine Specifications:

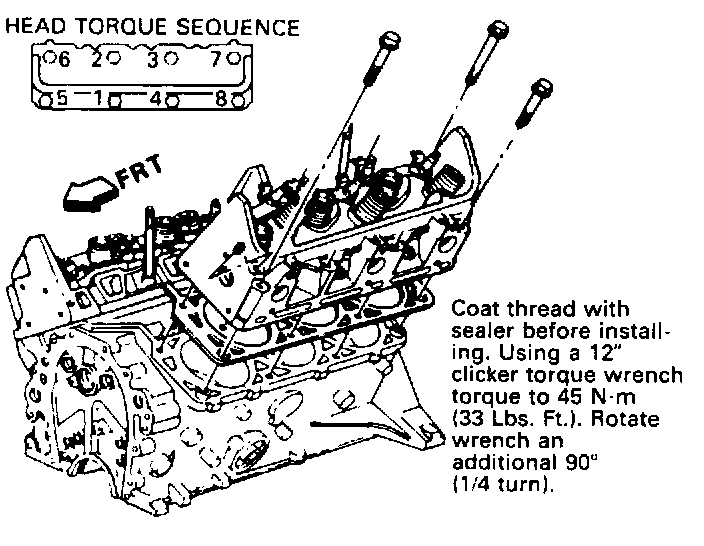

Cylinder Head Sequence:
