Cadillac
>>
1987
>>
Cimarron V6-173 2.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
Without Speed Density Update
>>
Part 2 of 2
Part 2 of 2

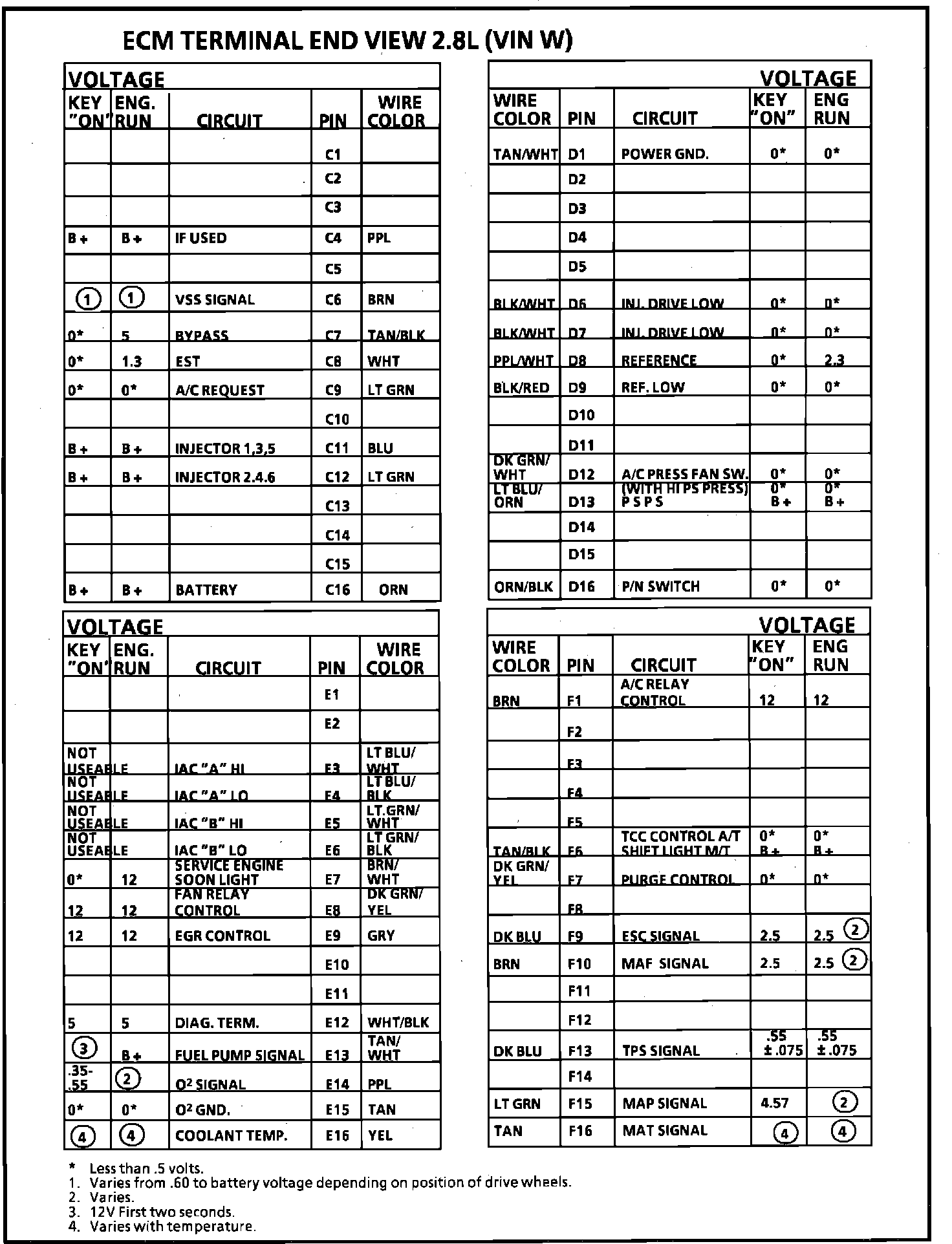

ECM Terminal ID & Voltage Specifications (Part 2 of 2):
