Home >> Cadillac >> 1987 >> Cimarron V6-173 2.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Without Speed Density Update >> Part 1 of 2

Part 1 of 2

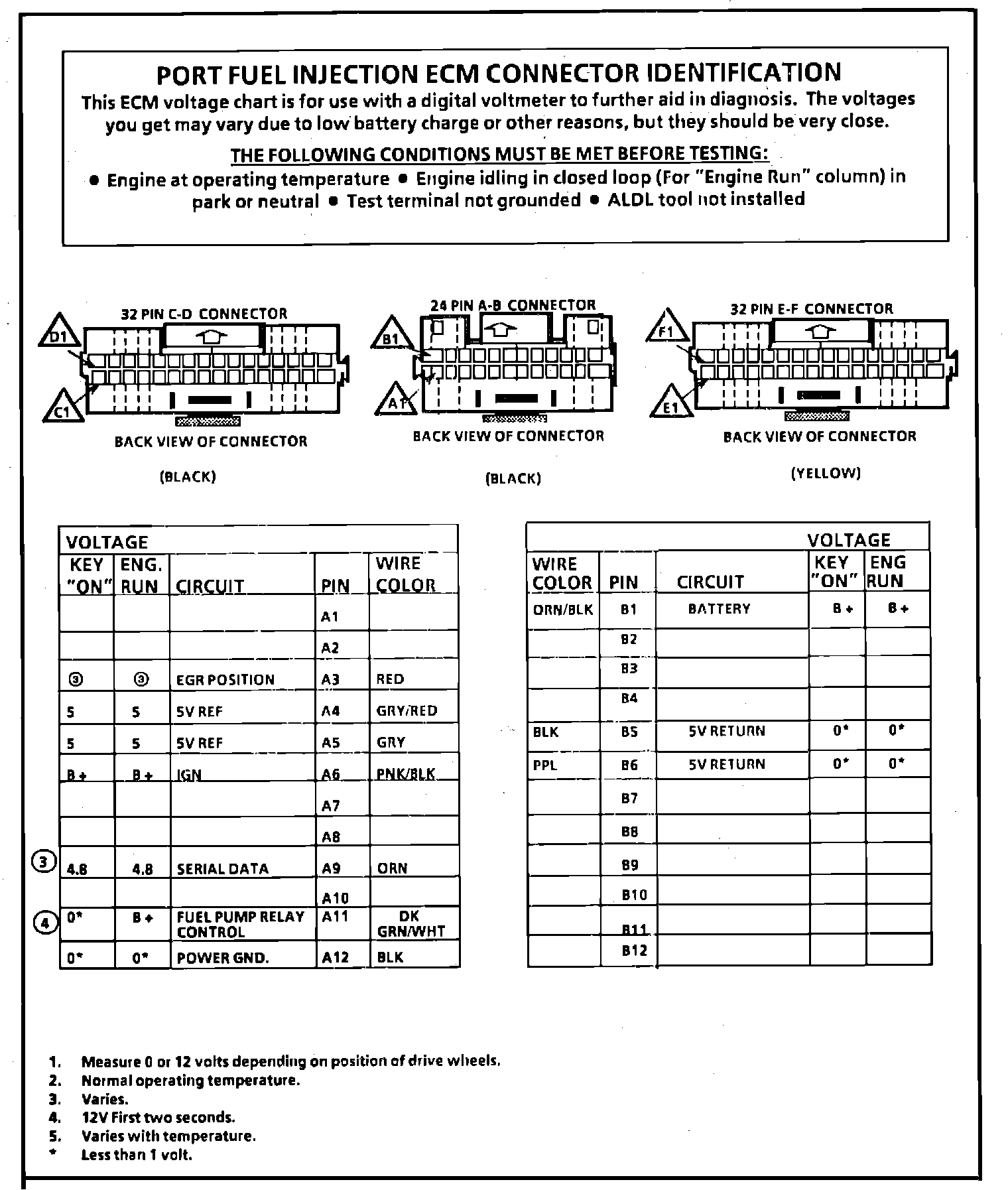

ECM Connector Identification:
