Powertrain Management: Locations

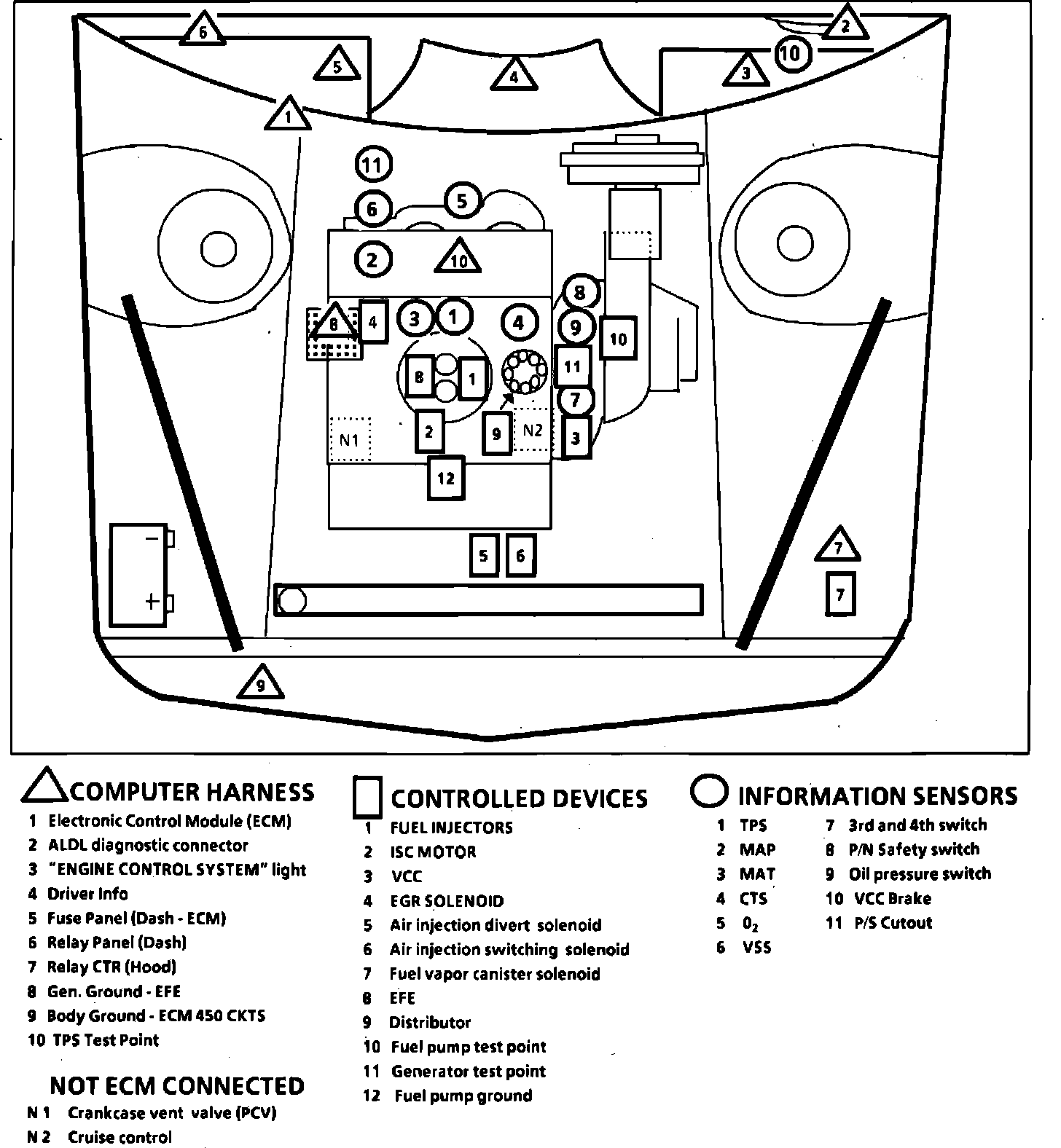

Fig. 55 Emission Component Location. 1986 Eldorado & Seville W/V8-250/4.1L, DFI:
