Home >> Cadillac >> 1986 >> Cimarron V6-173 2.8L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

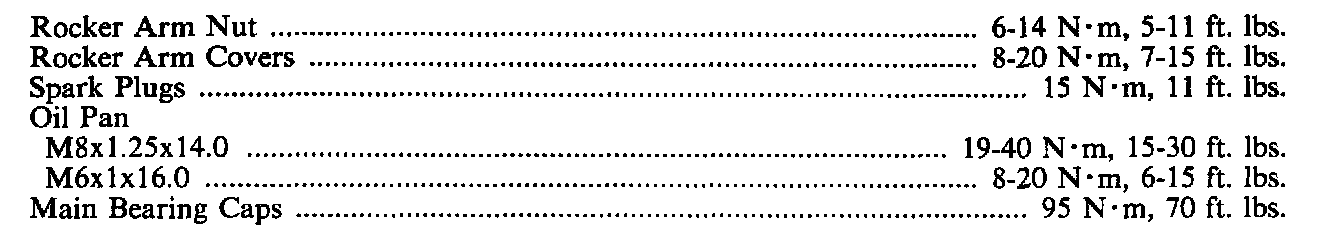

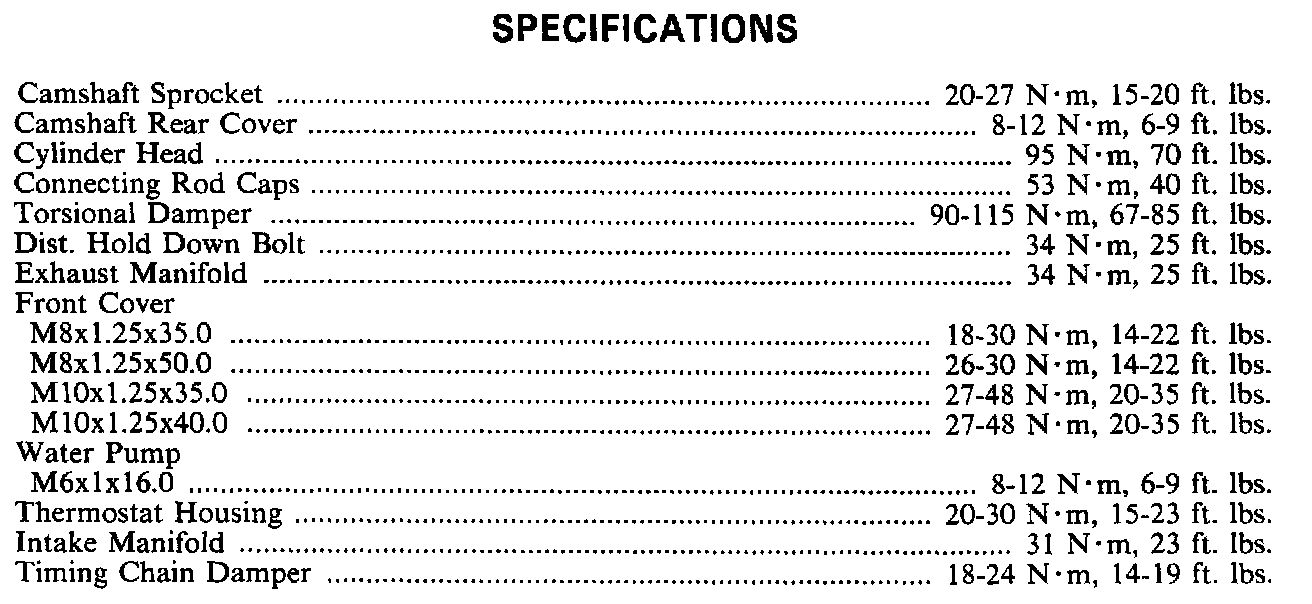

Torque Specifications:




Torque Specifications:

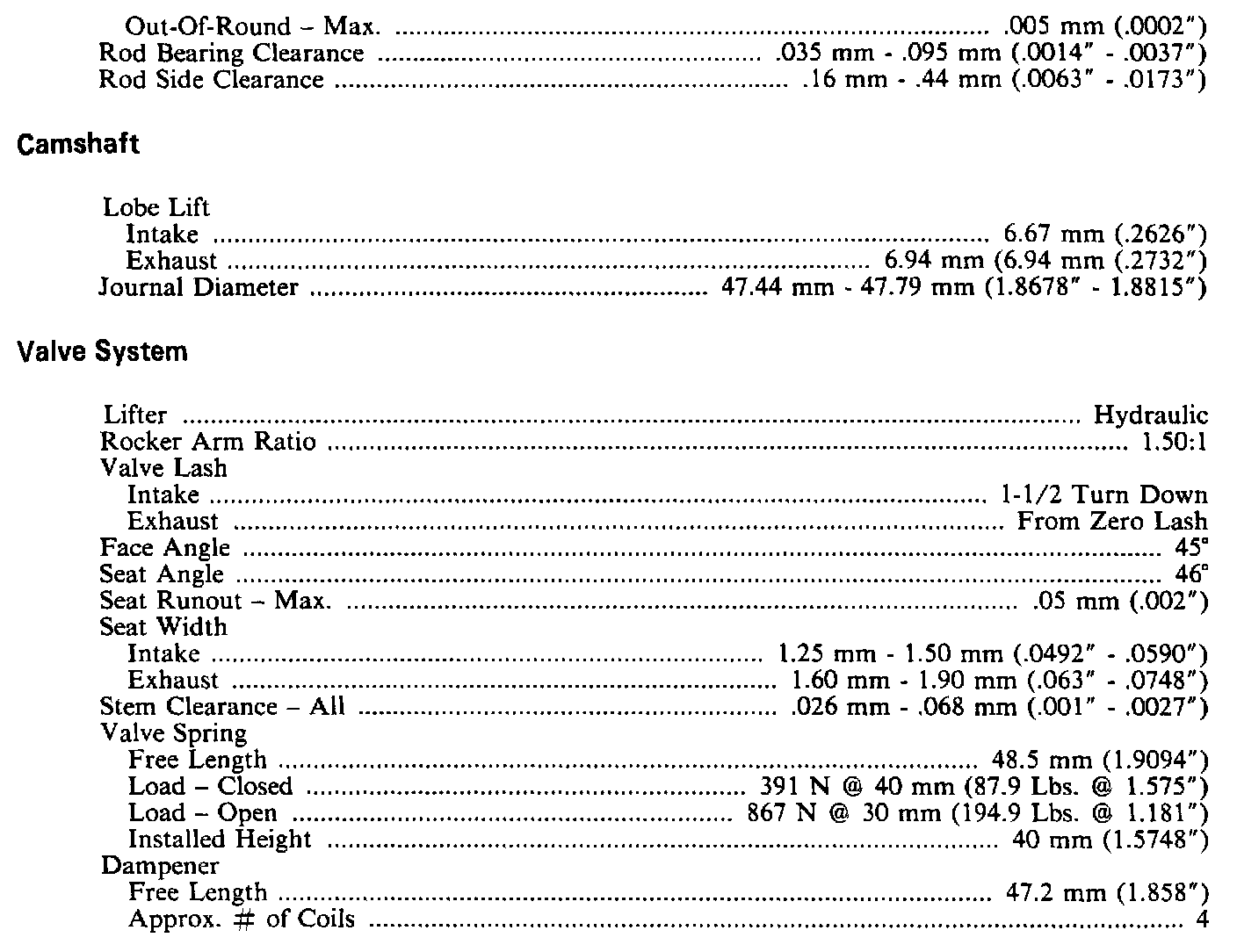

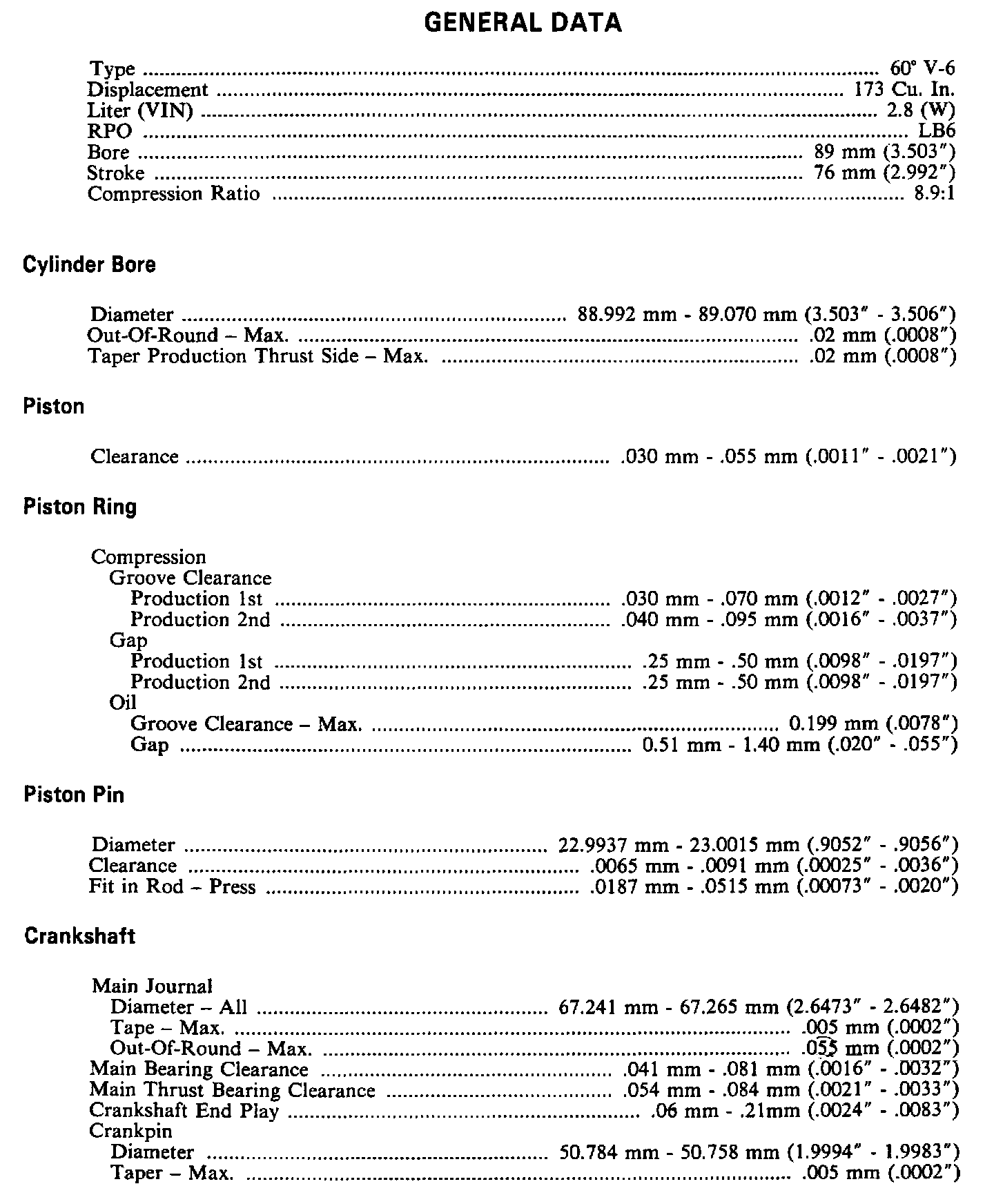

Engine Specifications:




Engine Specifications:

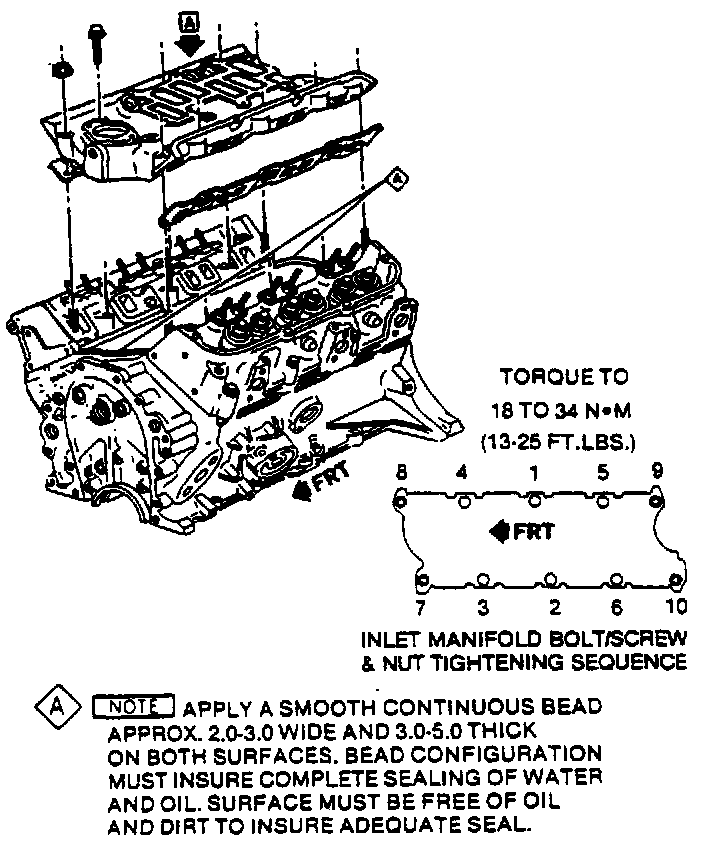

Intake Manifold Torque Sequence:

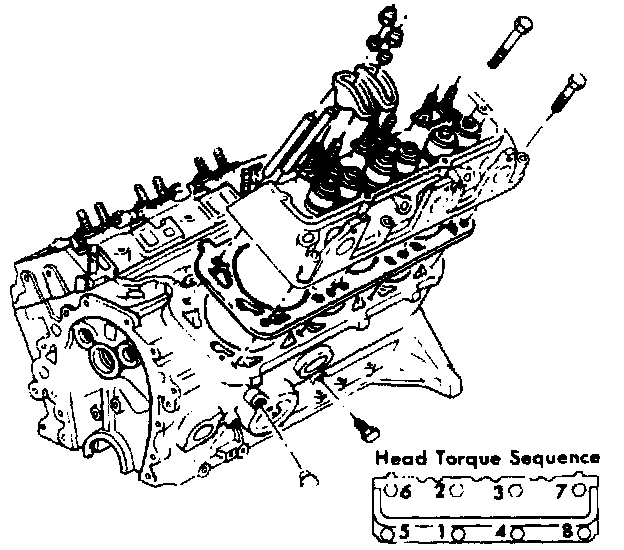

Cylinder Head Torque Sequence:
