Computer Command Control - Throttle Body Fuel Injection
Computer Command Control - Throttle Body Fuel Injection

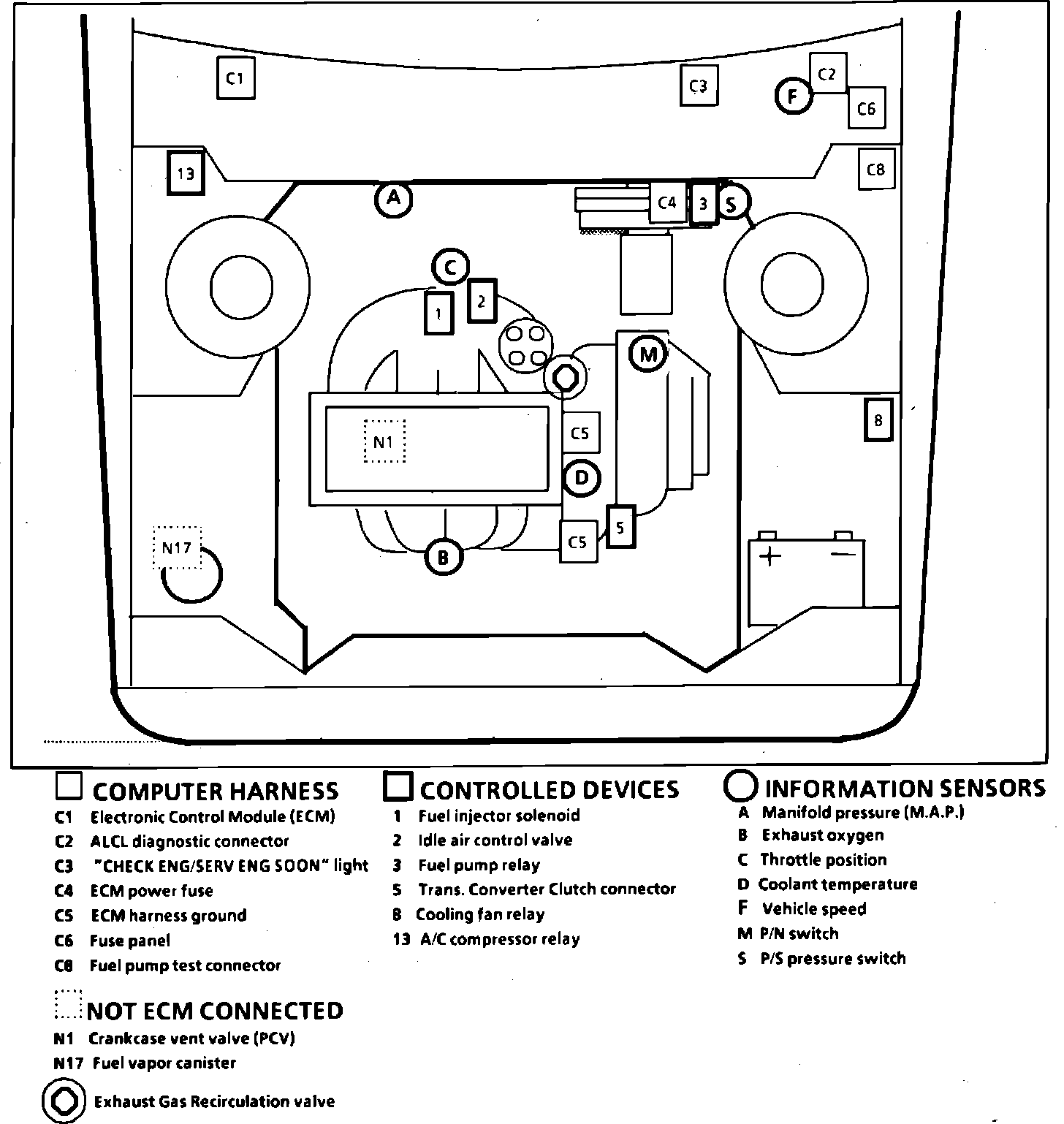

Fig. 42 Emission Component Location. 1986 Cimarron W/4-121/2.0L, TBI:
