lemon-mirror
:
Home
>>
Cadillac
>>
1985
>>
Eldorado V8-252 4.1L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
>>
Testing and Inspection
>>
ECM Connectors
ECM Connectors

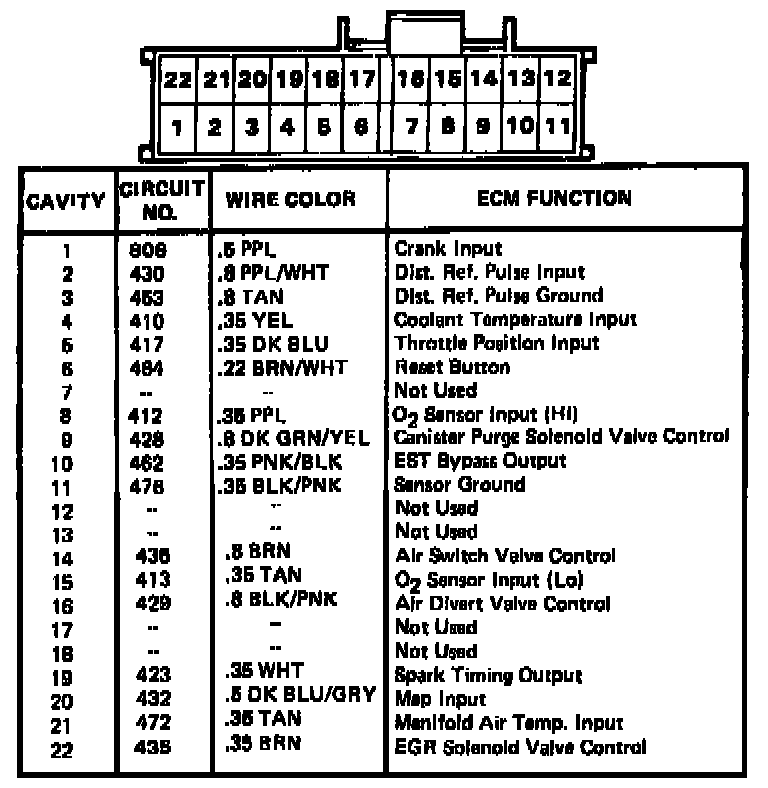

ECM Connector Number 714 (Black):

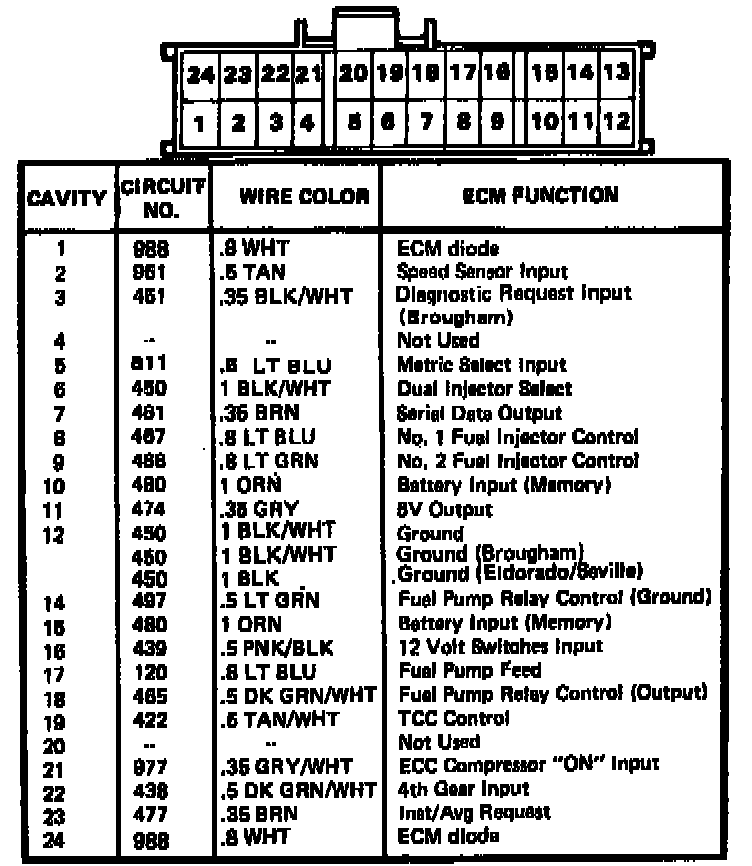

ECM Connector Number 715 (White):

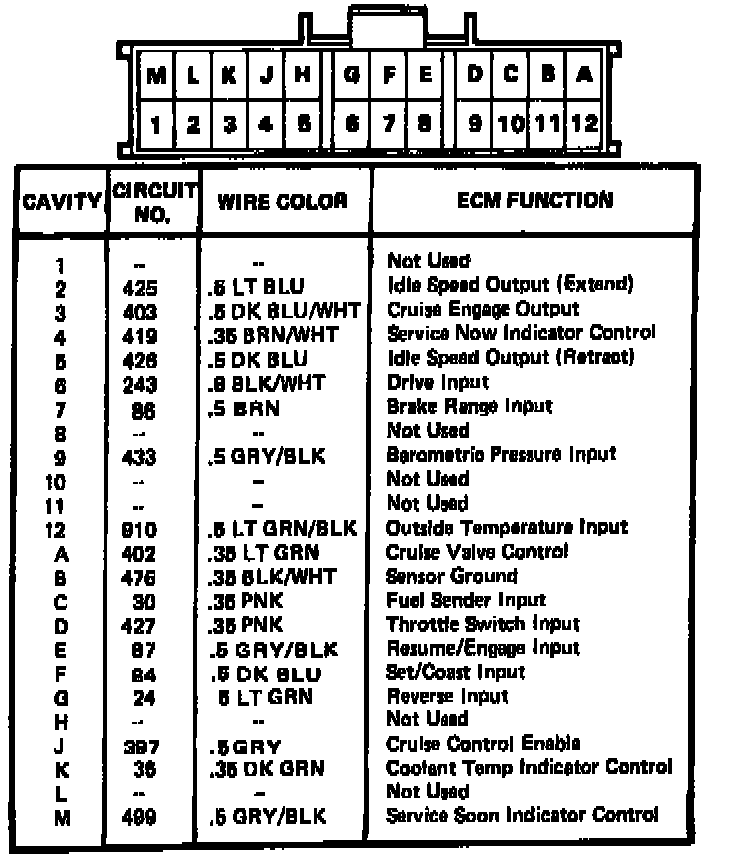

ECM Connector Number 716 (Black):
