System Specifications

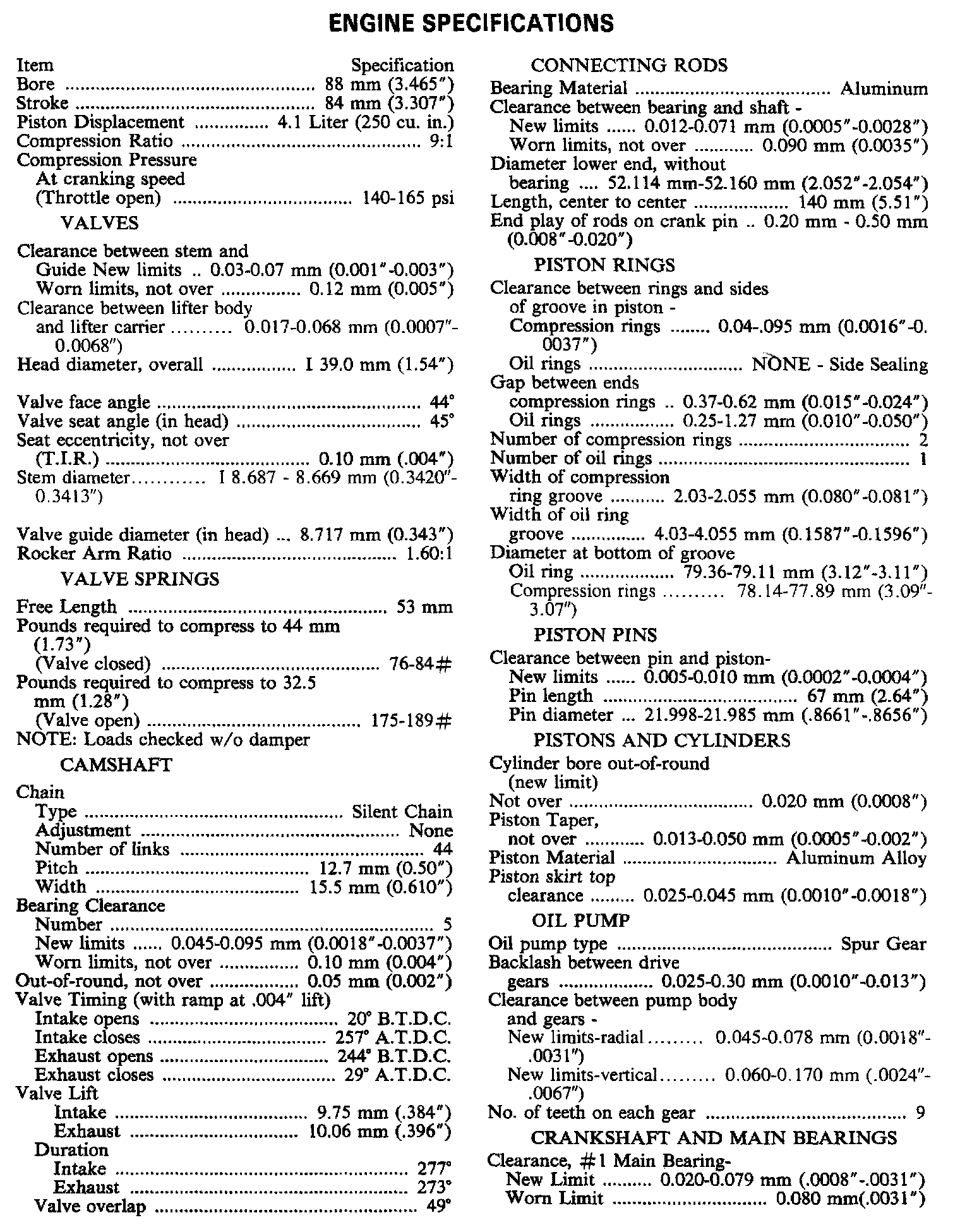

Engine Specifications:

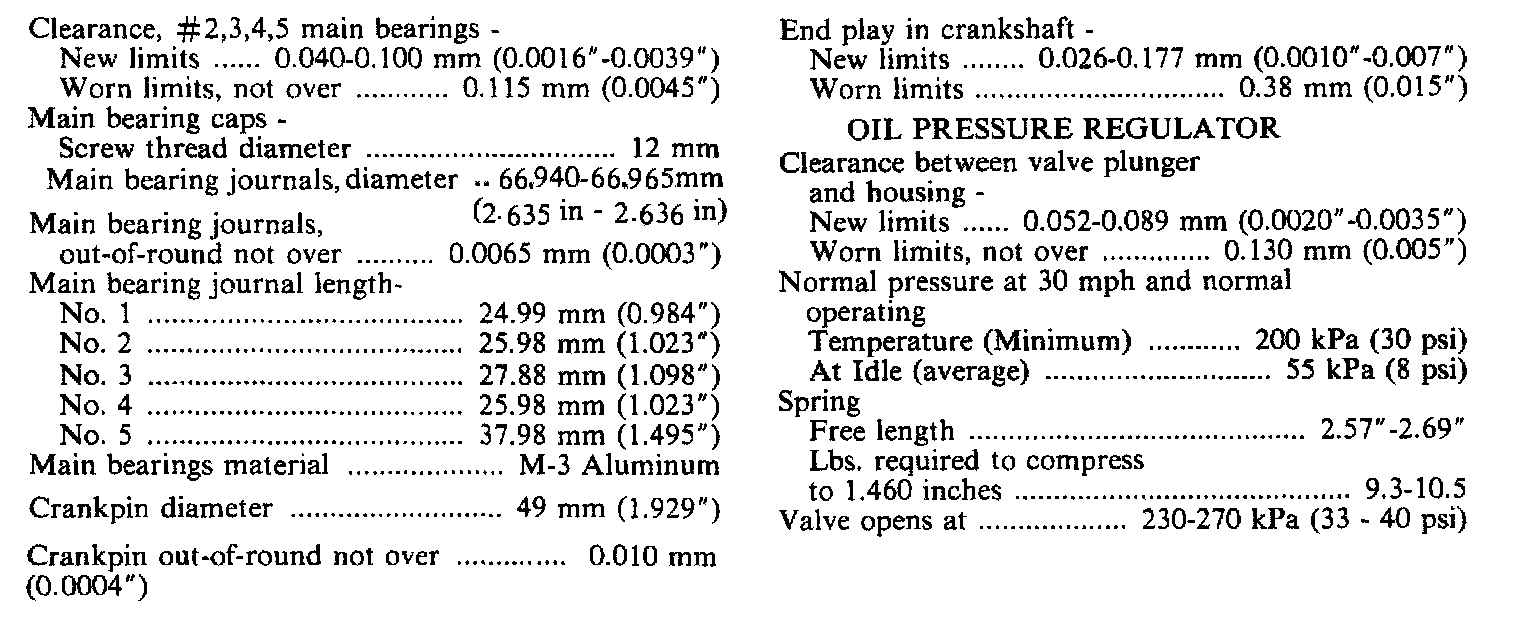

Continued Engine Specifications:

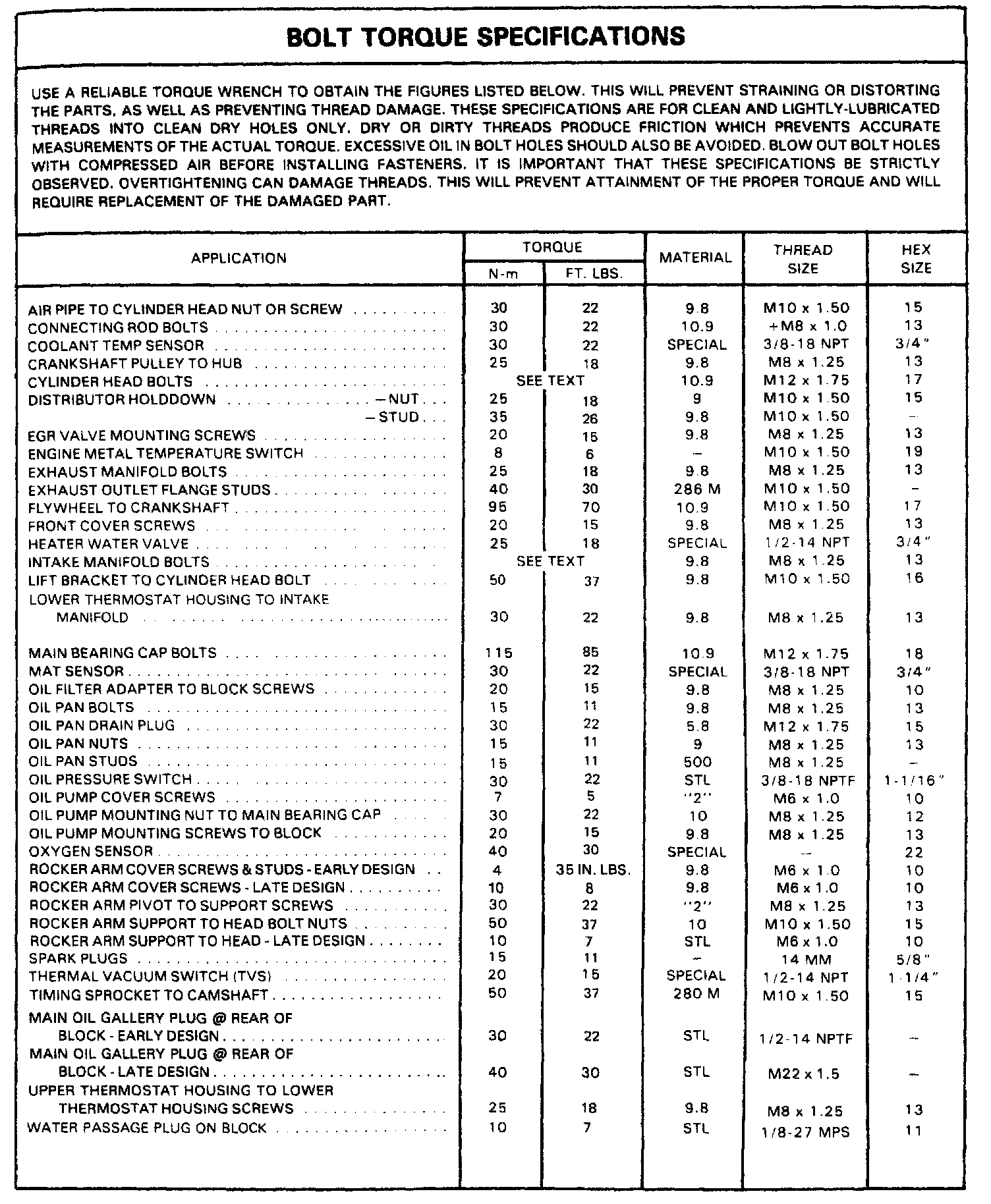

Torque Specifications:

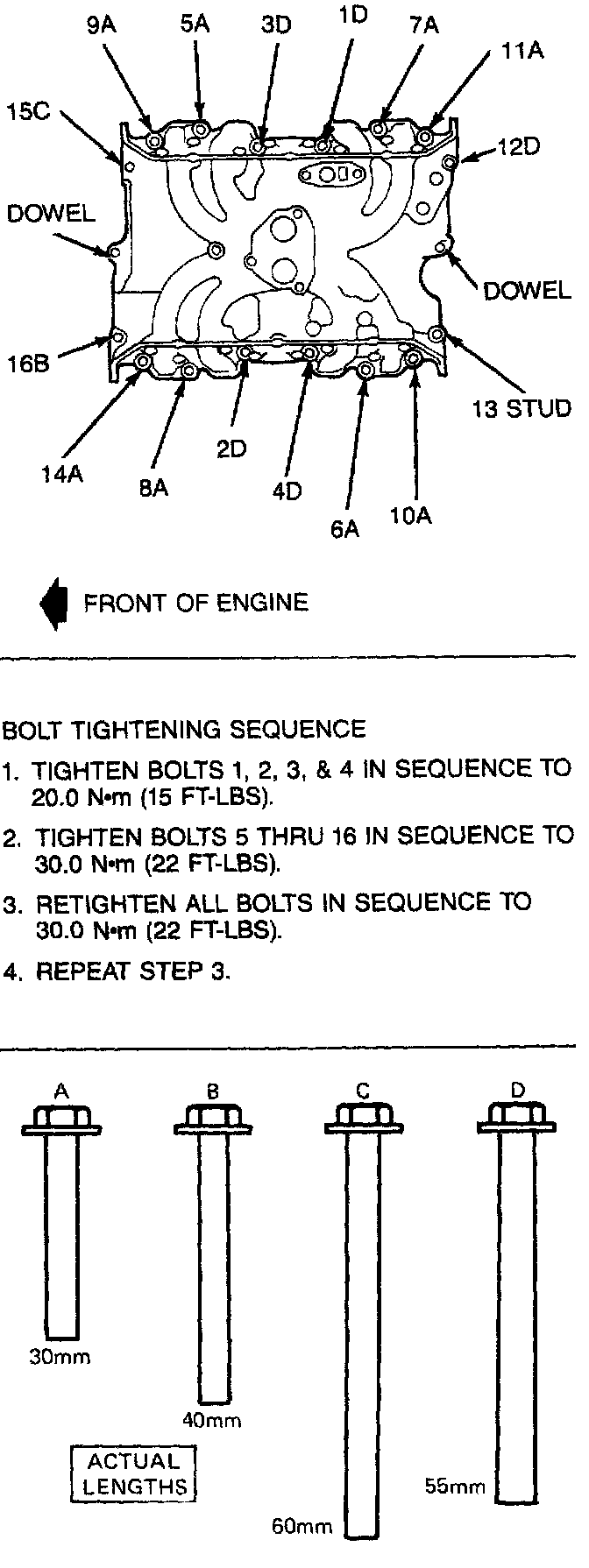

Intake Manifold Sequence - Early Design:





Intake Manifold Sequence - Late Design:

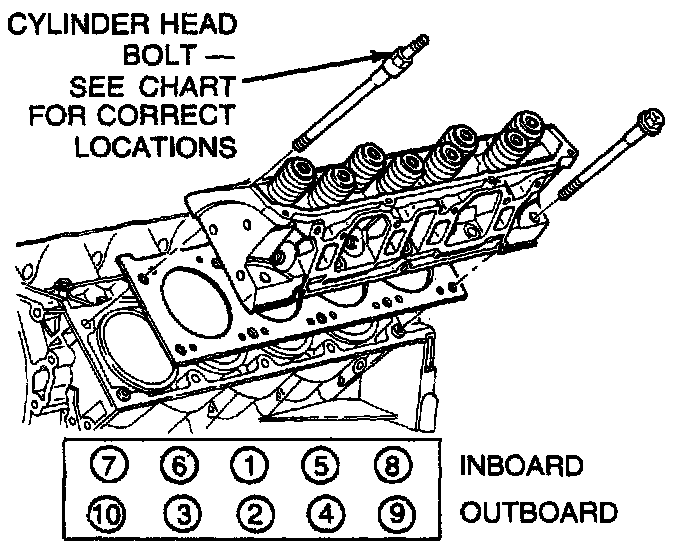

Cylinder Head Sequence:
