Chart C-1 ECM Replacement Check

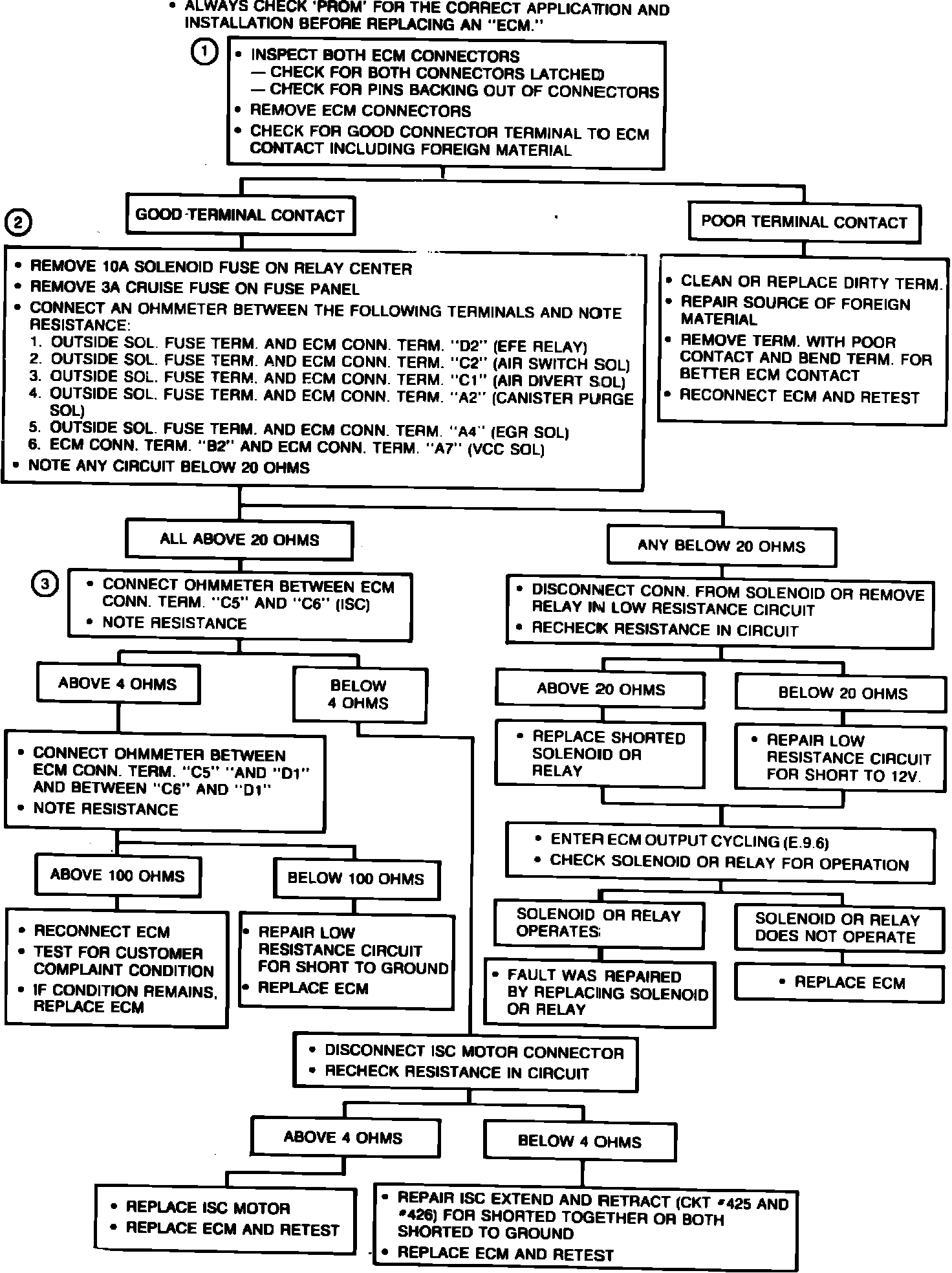

Fig. 22a DEFI System Diagnosis, Chart C-1 ECM Replacement Check (Part 1 of 2):

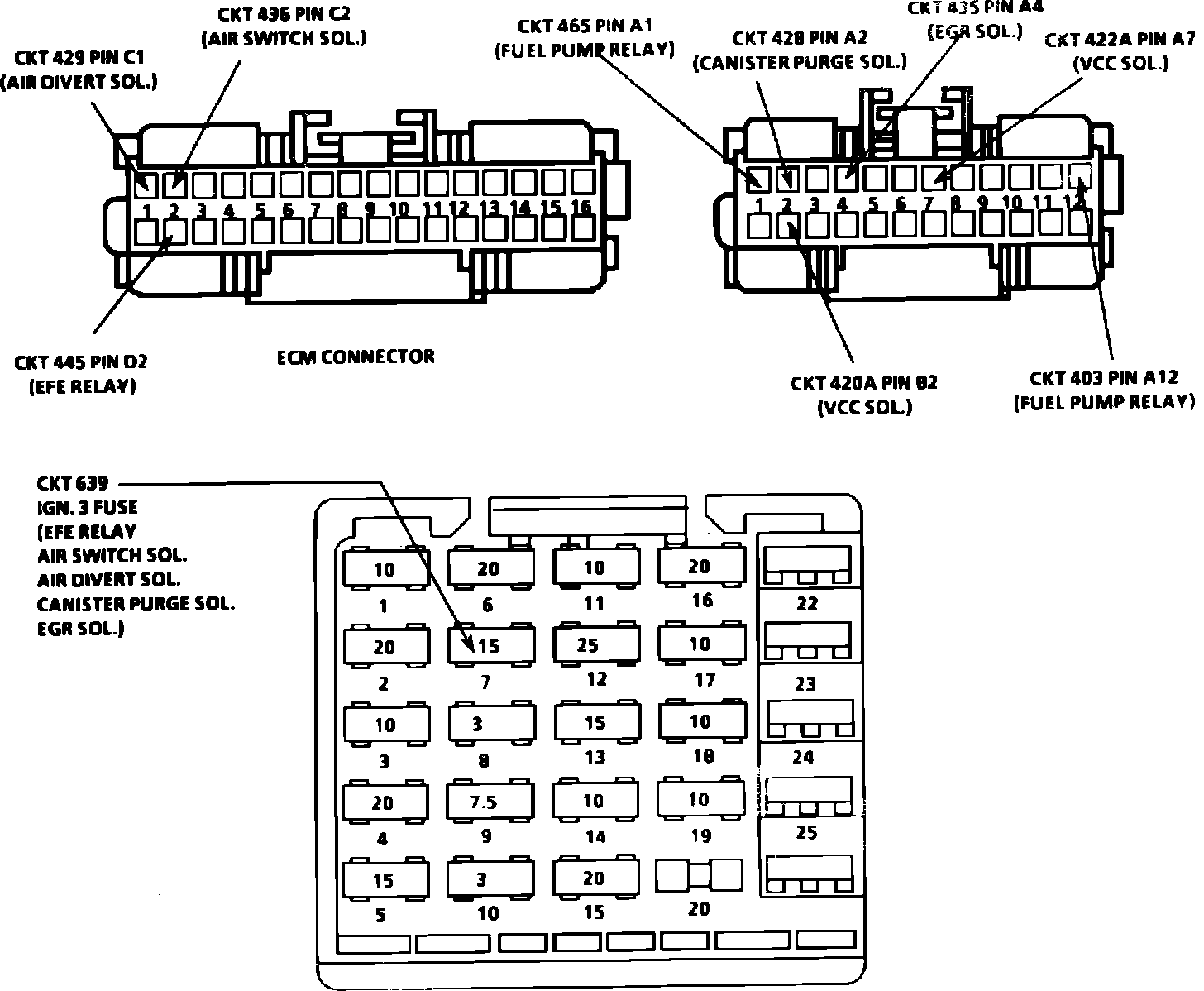

Fig. 22b DEFI System Diagnosis, Chart C-1 ECM Replacement Check (Part 2 of 2):
