Coolant Temperature Sensor/Switch (For Computer): Service and Repair

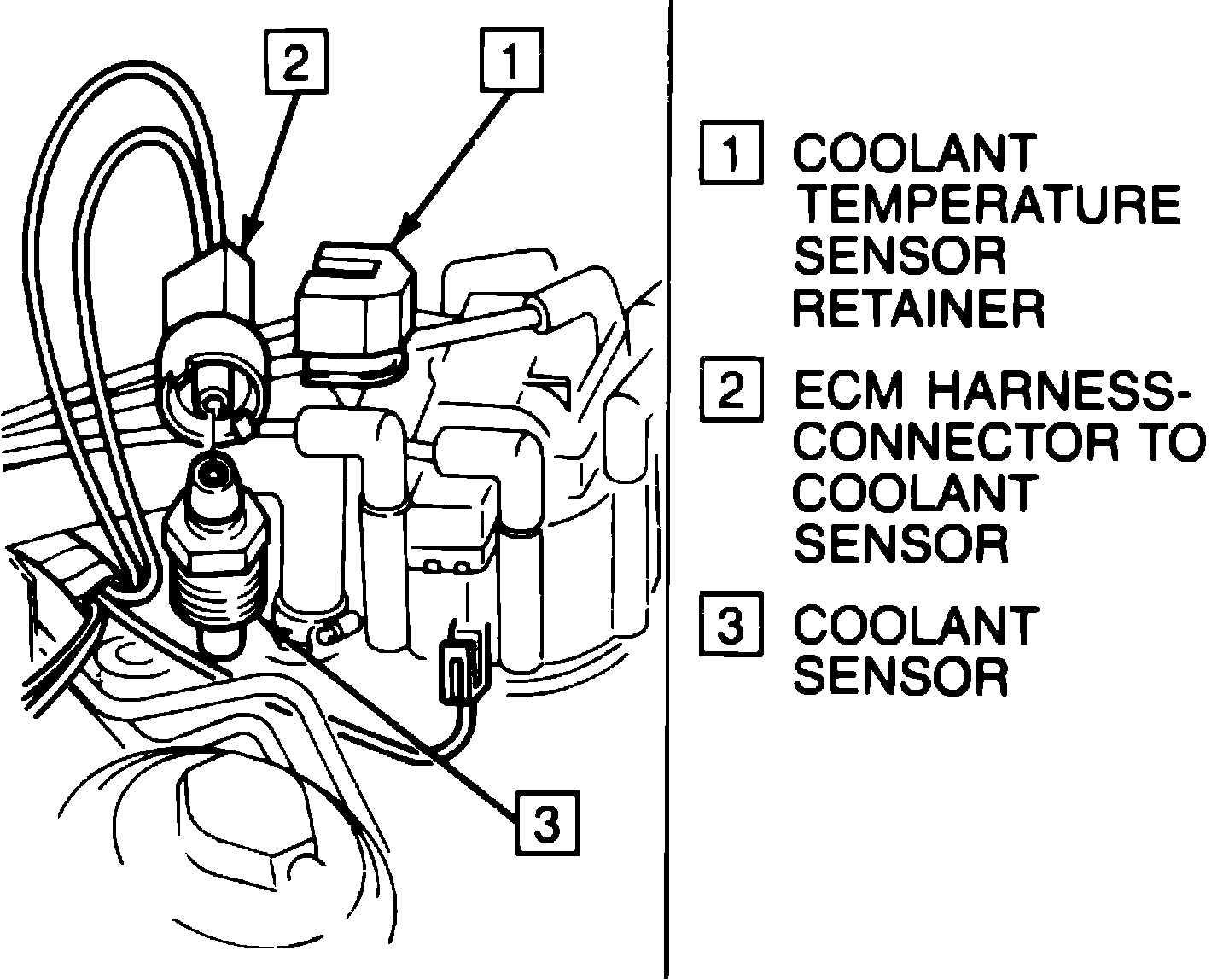

Fig. 103 Coolant sensor replacement:

1. Drain radiator until coolant level is below sensor.
2. Disconnect sensor electrical connector and remove sensor, Fig. 103.
3. Reverse procedure to install.
