Body Control Module

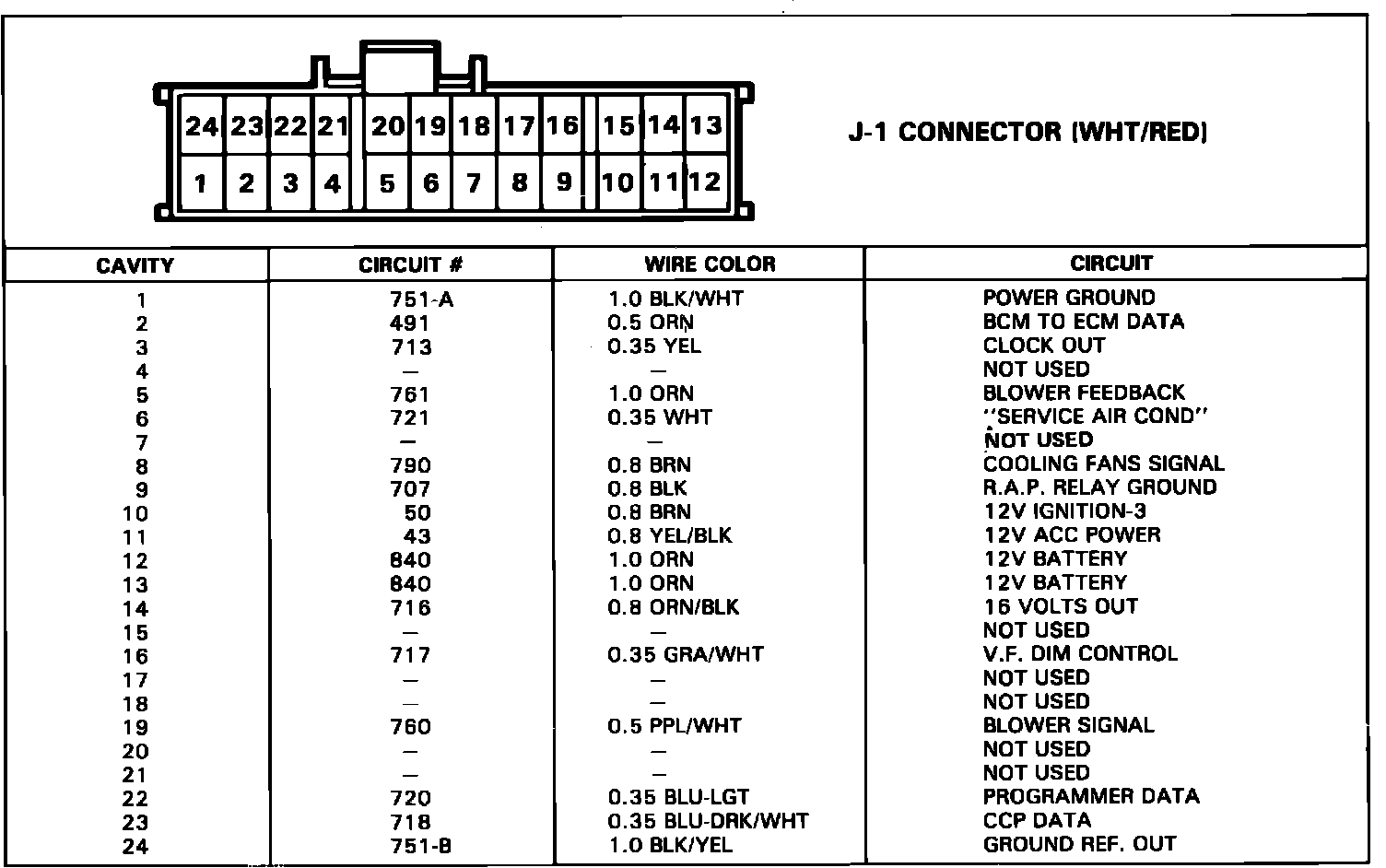

Fig. 87 BCM (J-1) Connector Terminal Identification:

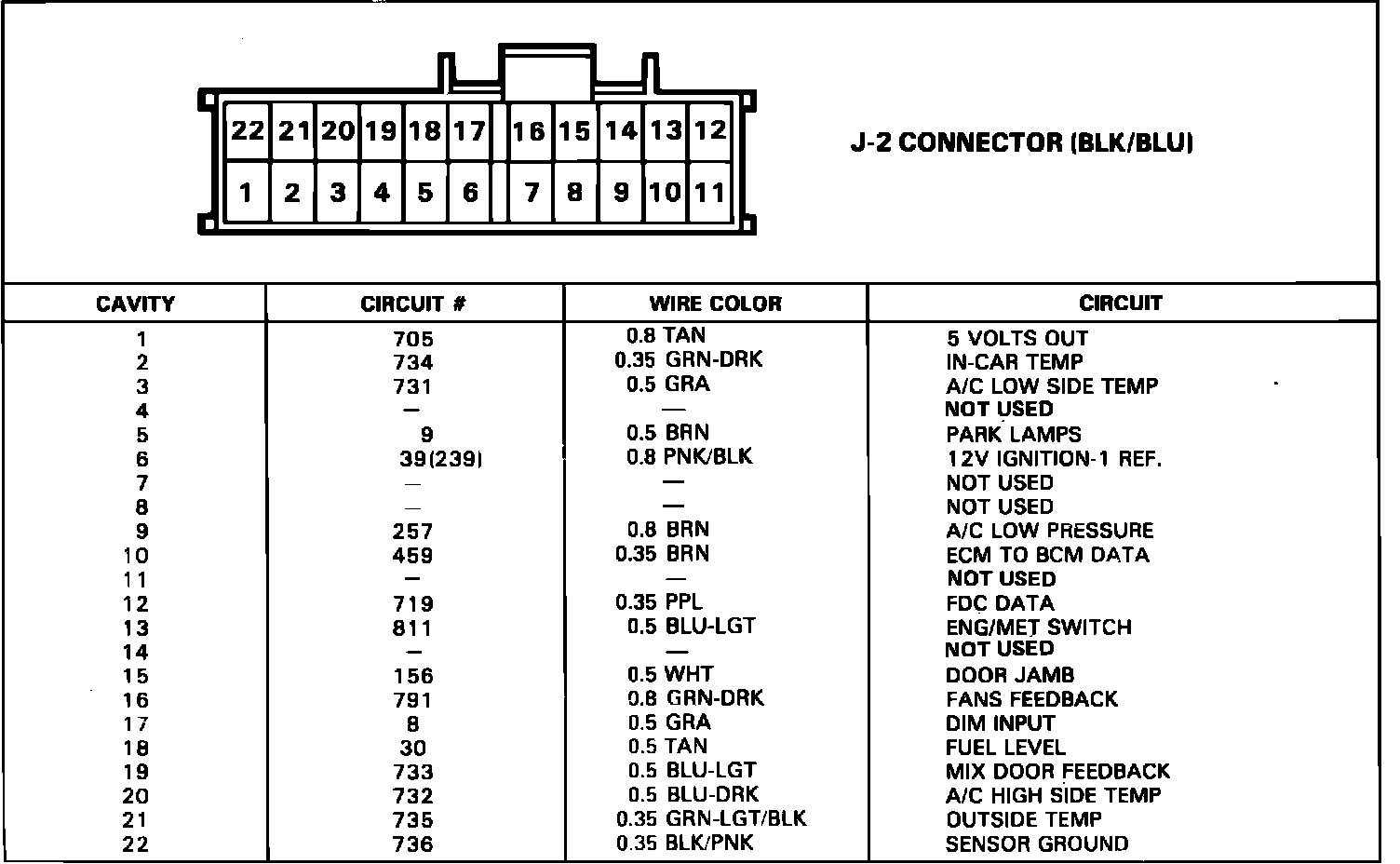

Fig. 88 BCM (J-2) Connector Terminal Identification:
