Home >> Cadillac >> 1985 >> Cimarron V6-173 2.8L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

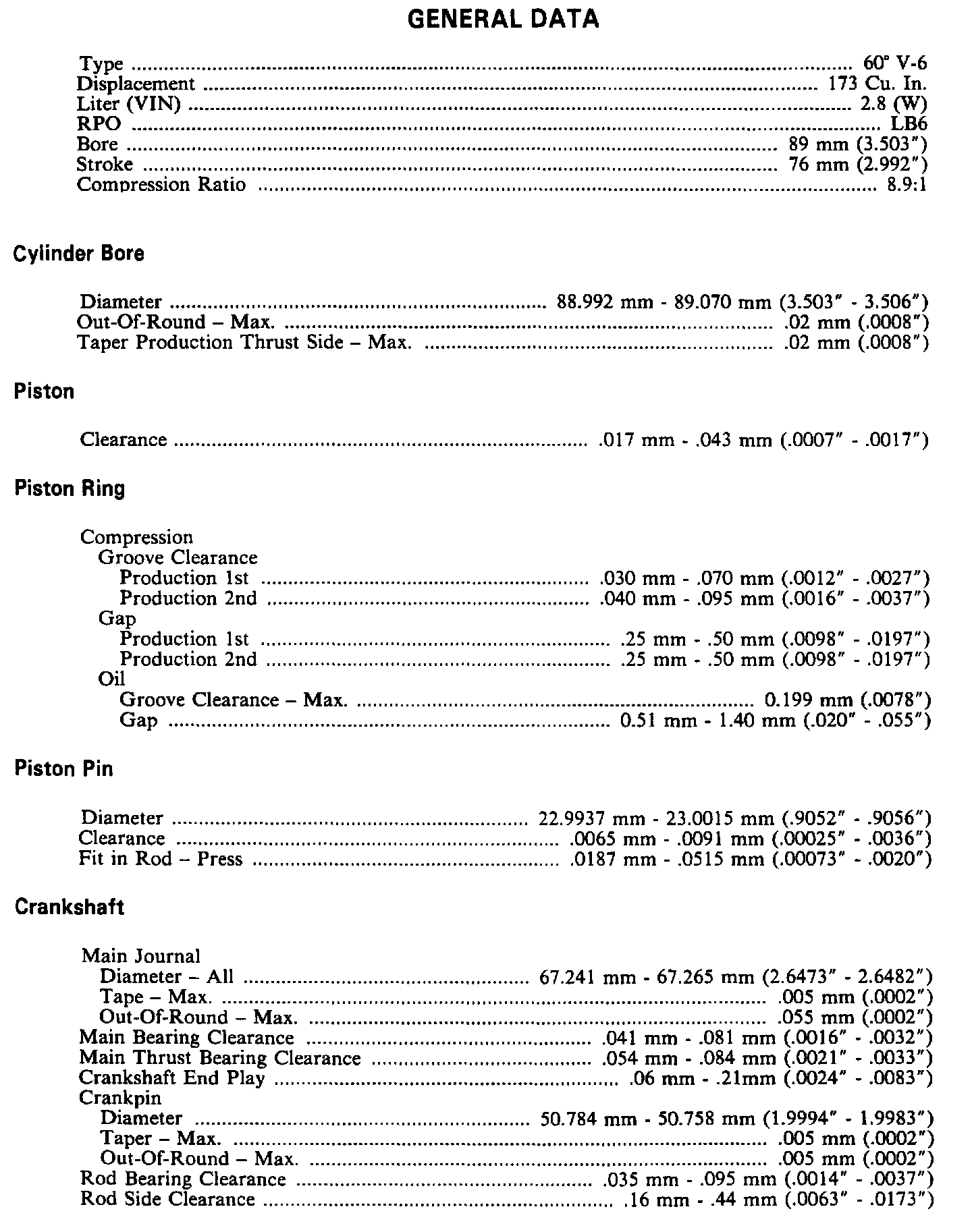

Engine Specifications:

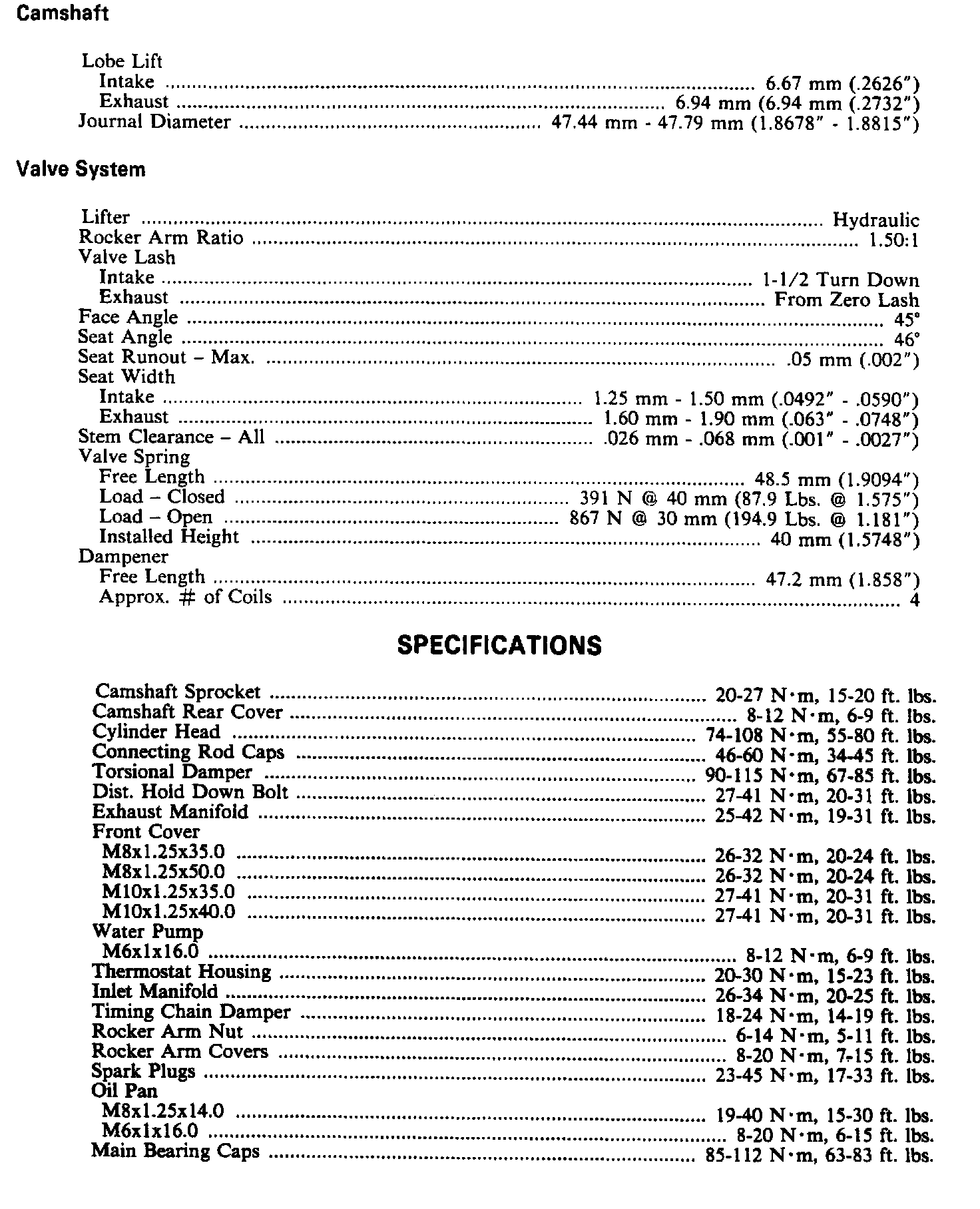

Continued Engine & Torque Specifications:

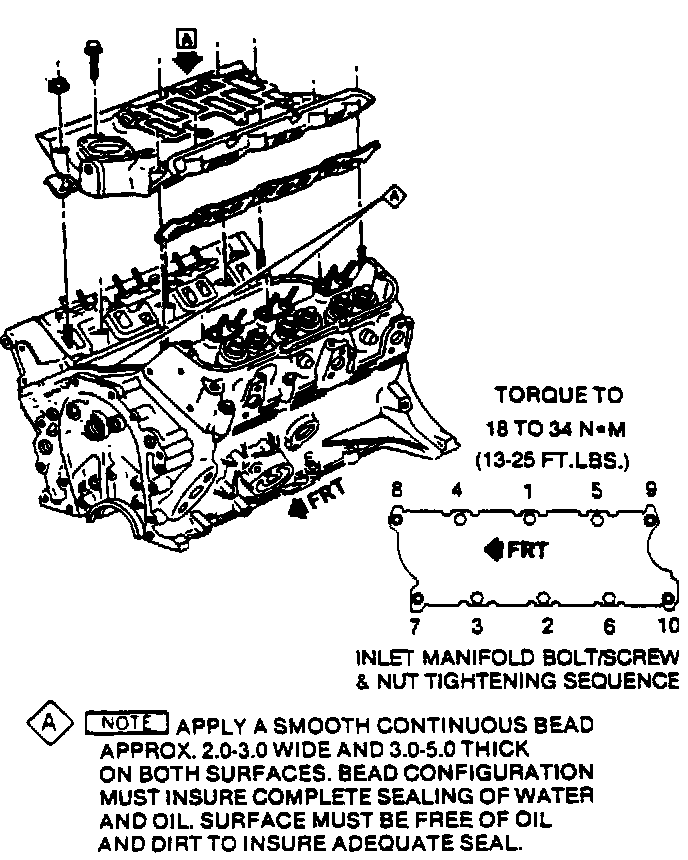

Intake Manifold Sequence:

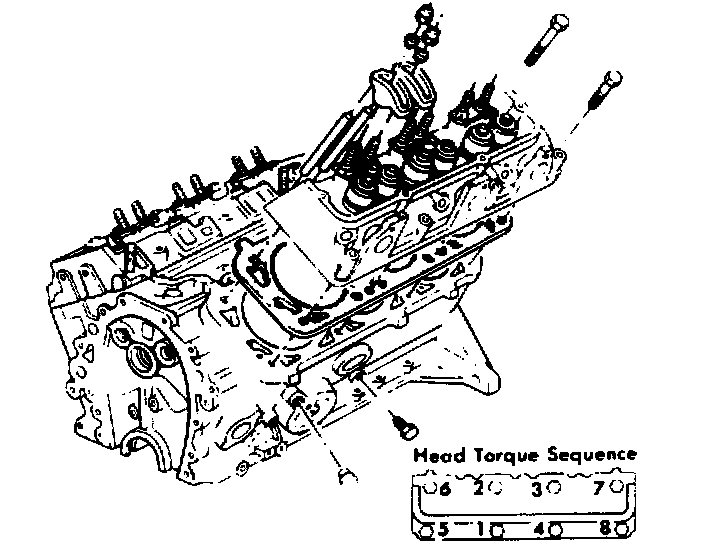

Cylinder Head Sequence:
