Home >> Cadillac >> 1985 >> Cimarron V6-173 2.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations

Computers and Control Systems: Locations

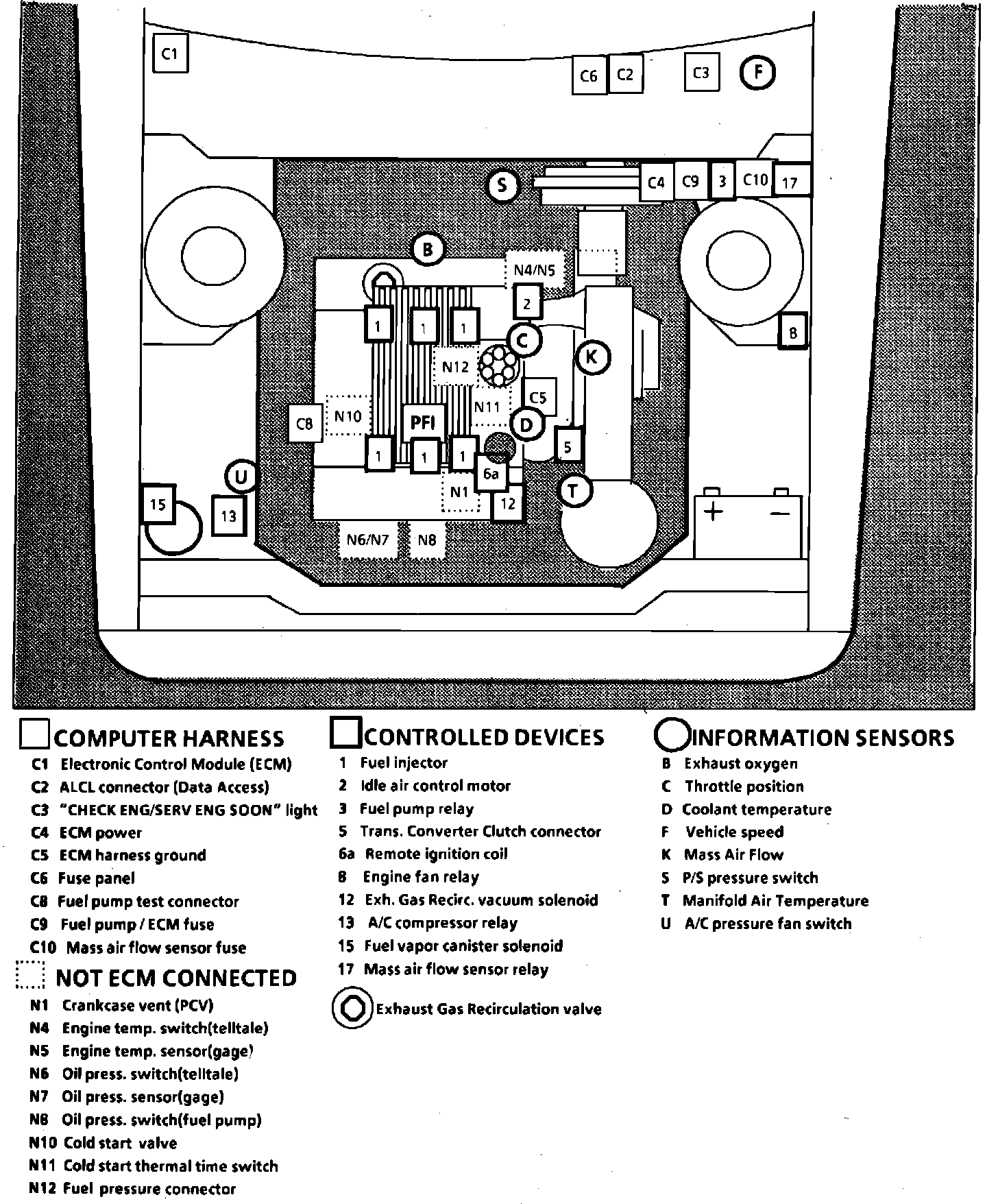

Fig. 19 Emission Component Location. 1985 Cimarron W/V6-173/2.8L, PFI:
