Cadillac
>>
1985
>>
Cimarron L4-121 2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
Engine Control Module

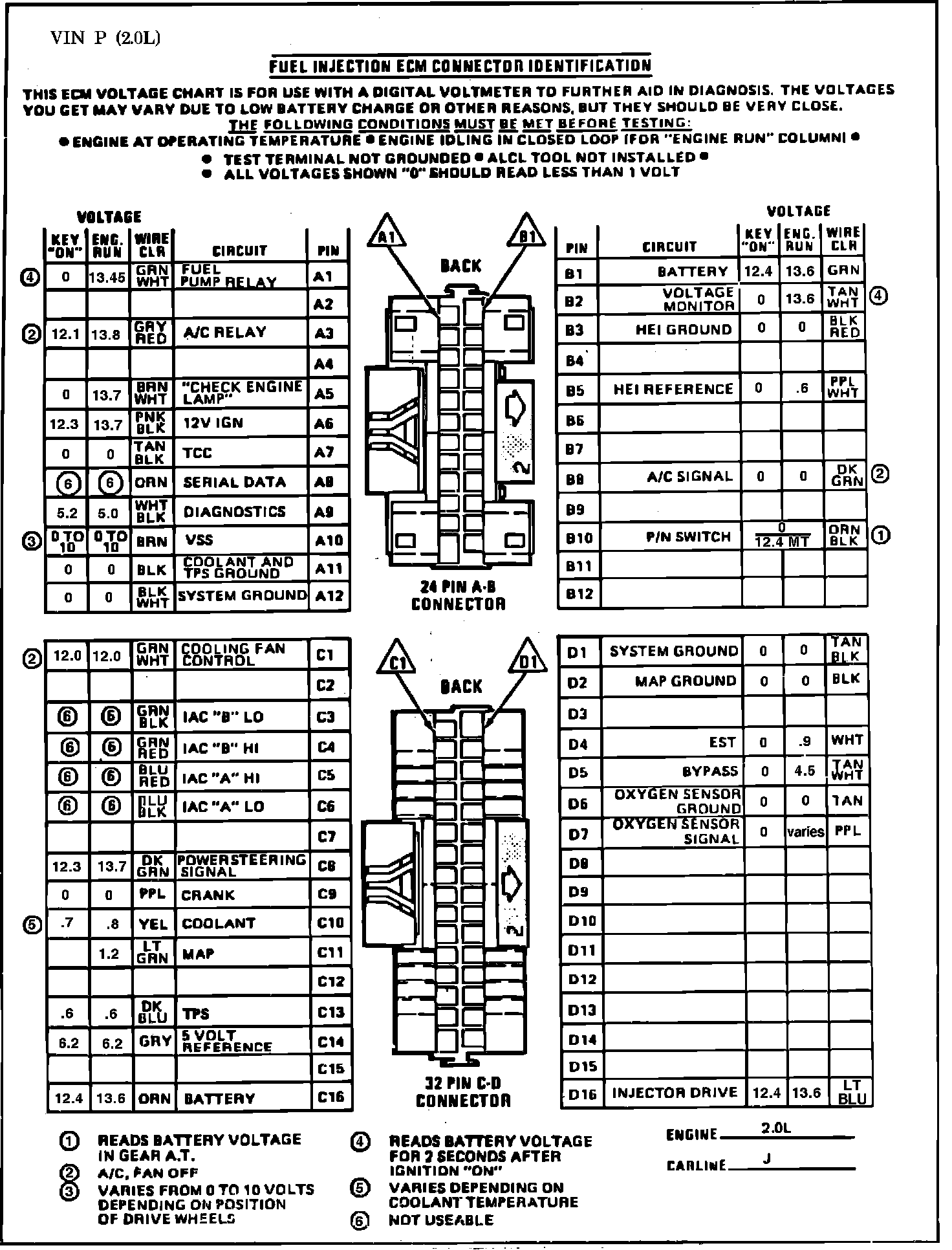

Fig. 003 ECM Connector Terminal I.D. & Volt. Specifications:
