A/C Control Relay
A/C Control Relay

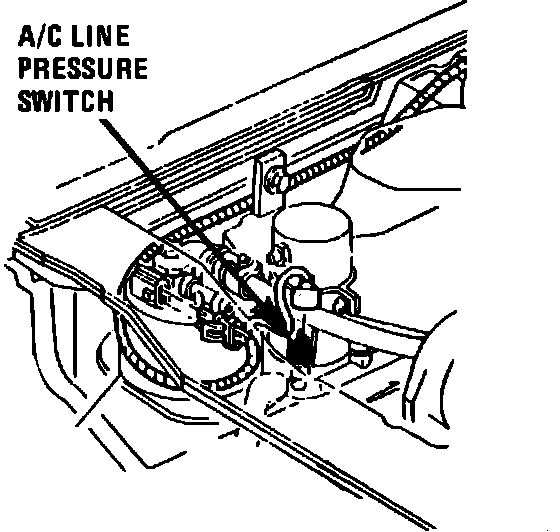

RH Rear Corner Of Engine Compartment.:
RH Rear Corner Of Engine Compartment.:

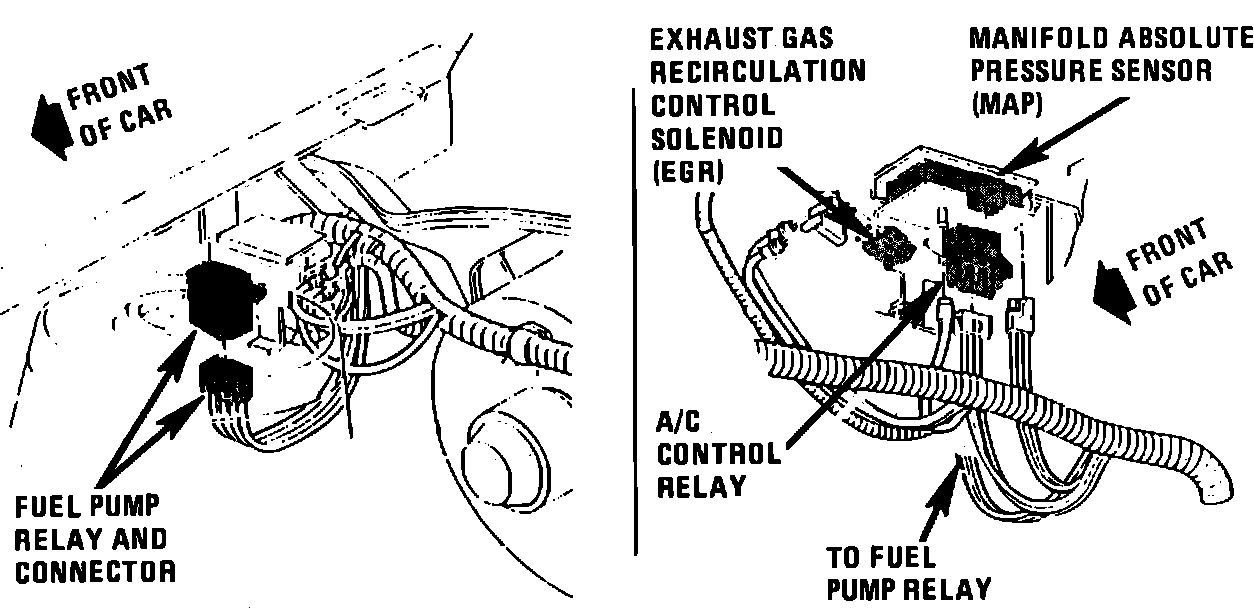

On RH Front Fender Apron, Behind Shock Tower
Applicable to: 1985 Cimarron
