Collision Avoidance Module
>>
Side Object Sensor Module - Right (UFT)
Side Object Sensor Module - Right (UFT)

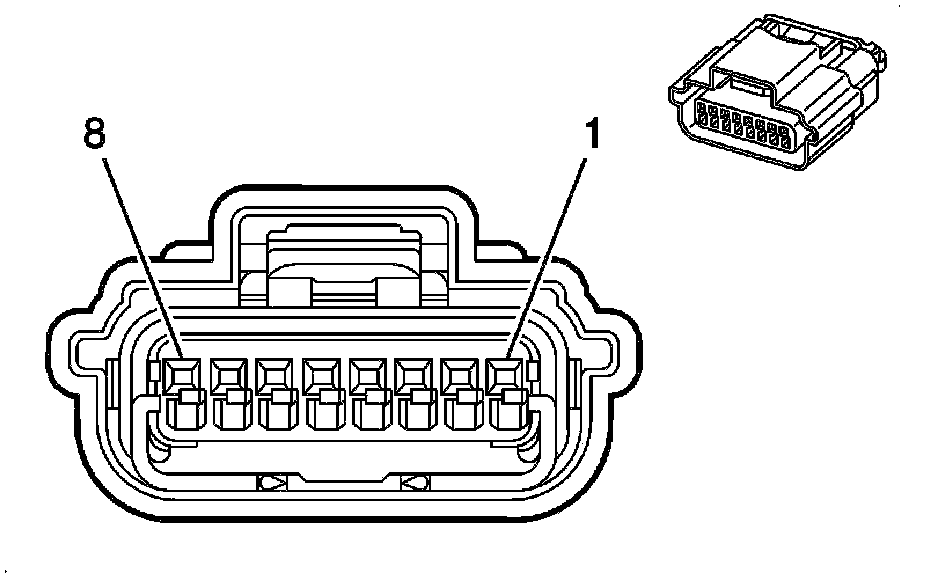

Component Connector End Views

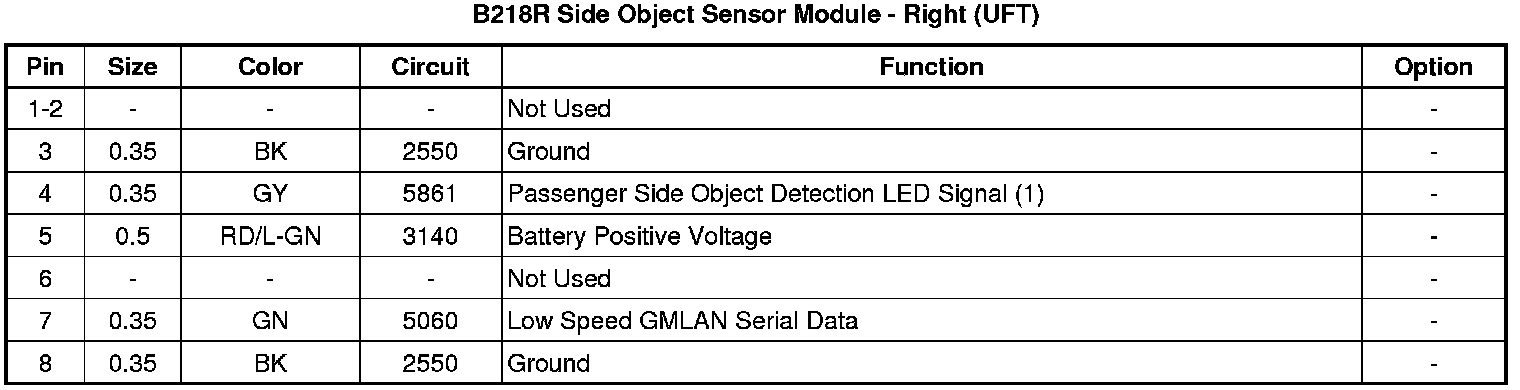

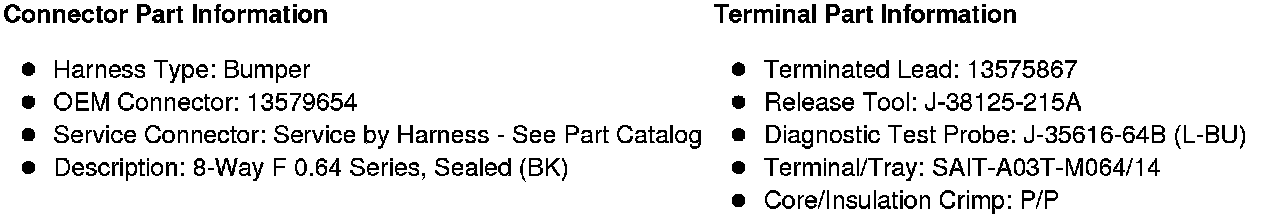

B218R Side Object Sensor Module - Right (UFT)
