Buick
>>
2013
>>
Verano L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Collision Avoidance Module
>>
Side Object Sensor Module - Left (UFT)
Side Object Sensor Module - Left (UFT)

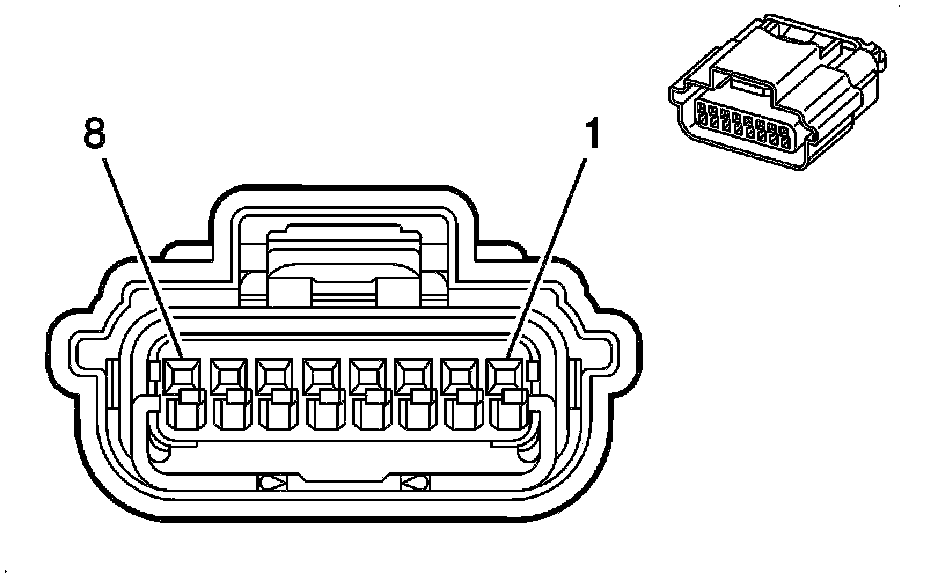

Component Connector End Views

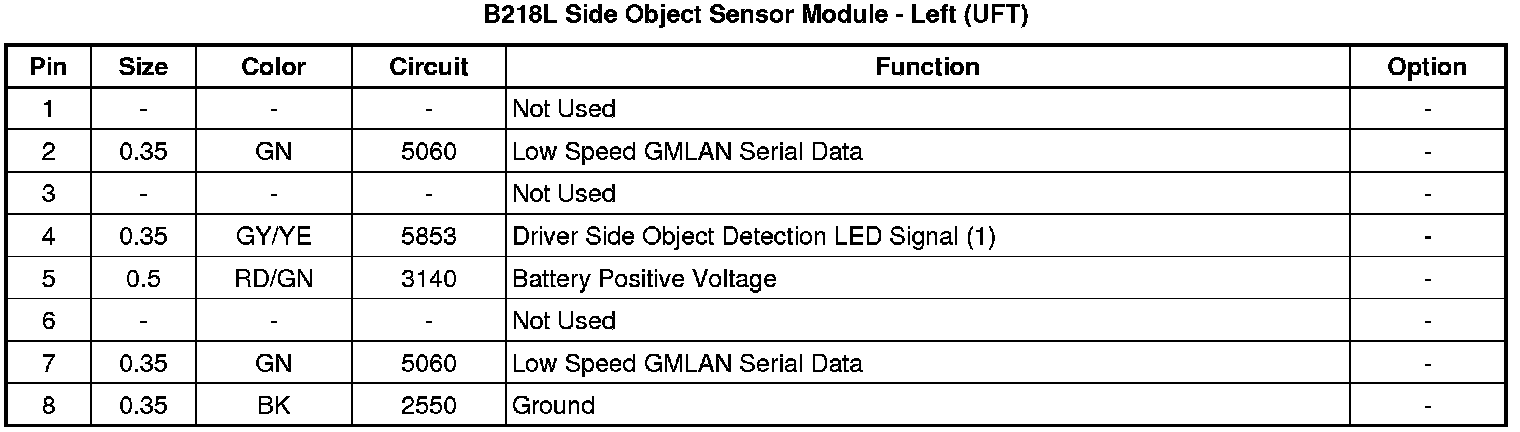

B218L Side Object Sensor Module - Left (UFT)
